JET 9x42 Step Pulley Milling Machine with ACU-RITE 203 DRO
JET 9x42 Step Pulley Milling Machine with ACU-RITE 203 DRO
SKU:MIL-b3ea48
Achieve precision and stability with the JET Step Pulley Milling Machine. Power down feed, ACU-RITE 203 DRO, and X/Y Axis Power Feed for superior results.
Regular price
$16,749.00
Regular price
Sale price
$16,749.00
Unit price
per
Initiate Order
JET 9x42 Step Pulley Milling Machine with ACU-RITE 203 DRO
$16,749.00
Quantity: 1
Claim Your Seller Account
JET 9x42 Step Pulley Milling Machine with ACU-RITE 203 DRO
$16,749.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

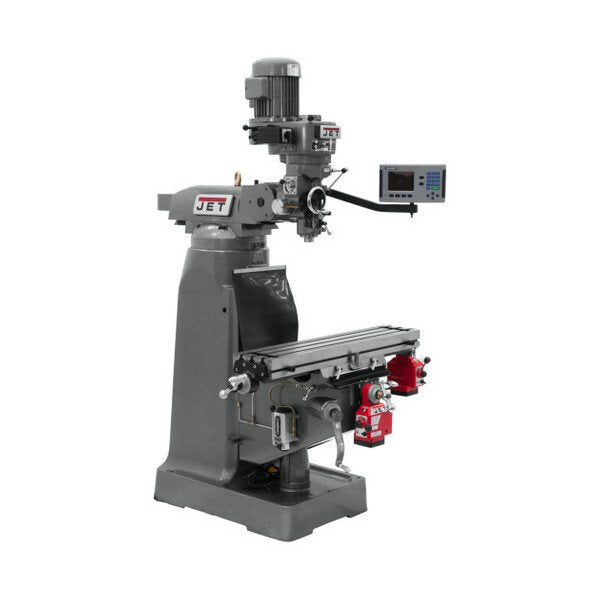

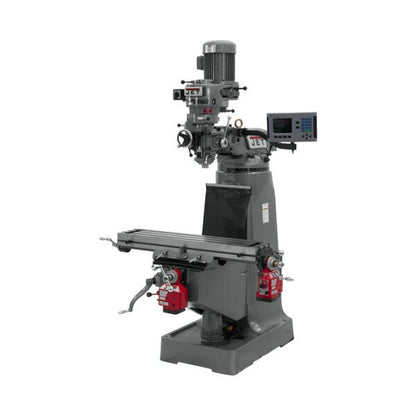

The JET 9x42 Step Pulley Vertical Milling Machine combines precision engineering with rugged stability. With a Three-stage power down feed, high precision spindle bearings, and Meehanite® castings, it ensures superior results. The internally cooled spindle head prevents seizing, while the 2-Axis ACU-RITE DRO and X/Y Axis Power Feed enhance accuracy and efficiency. Certified to meet industry standards, including precision boring, locked movable surfaces, and hardened precision table, this machine is backed by JET's Two Year Warranty.
Product Specifications
Features Features
Certified Meehanite® CastingsPrecision bored and honed milling headLarge diameter quill is chromedHigh precision spindle bearingsOver 10â of front to back ram travelLocks on all movable surfacesLocks on all movable surfacesHead tilts left or rightHardened and ground precision tablePrecision ground dovetail waysOne shot lubrication systemWay coversDraw barTool box and tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
2-Axis ACU-RITE 203
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
82 in
Technical Specs Length
57 in
Technical Specs Maximum Distance Spindle To Column
19 in
Technical Specs Maximum Distance Spindle To Table
17 1/2 in
Technical Specs Model
JTM-2
Technical Specs Number Of Spindle Speeds
8
Technical Specs Powerfeed
X And Y Axis
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
13-3/8 in
Technical Specs Spindle Motor Phase
1
Technical Specs Spindle Motor Power
2 hp
Technical Specs Spindle Speeds
80 to 2720 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
4-1/2 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Step Pulley R8
Technical Specs Table Longitudinal Travel With Powerfeed
20 2/7 in
Technical Specs Table Size
9 x 42 in
Technical Specs Travel Of Knee
14-1/2 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
115 to 230 V
Technical Specs Weight
2200 lb
Technical Specs Width
64 in
Technical Specs Working Table Cross Travel
12 1/2 in
Technical Specs Working Table Longitudinal Travel
23 7/8 in
Technical Specs Work Table Weight Capacity
550 lb
