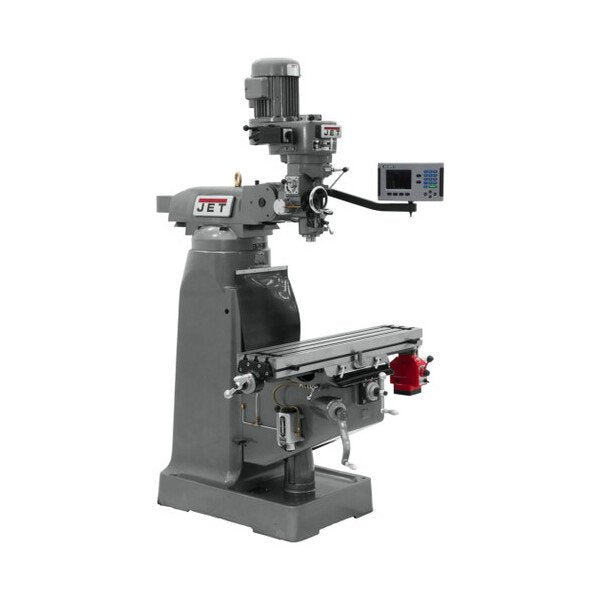

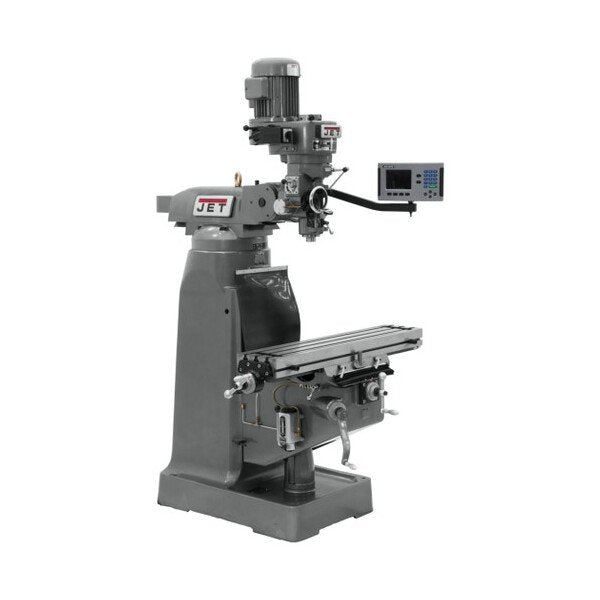

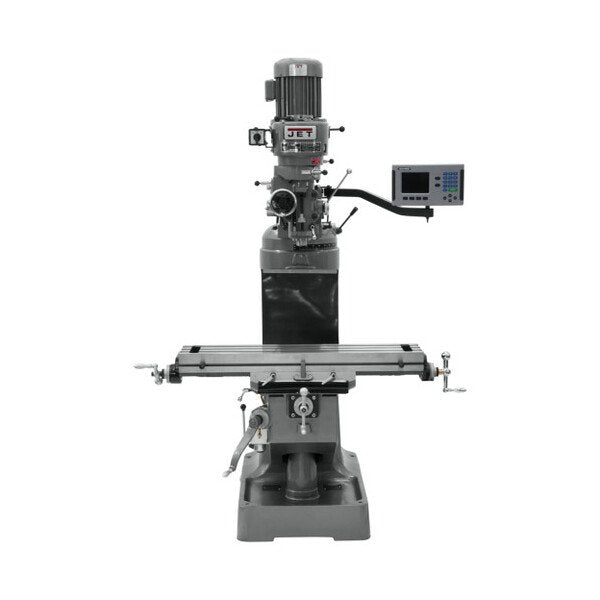

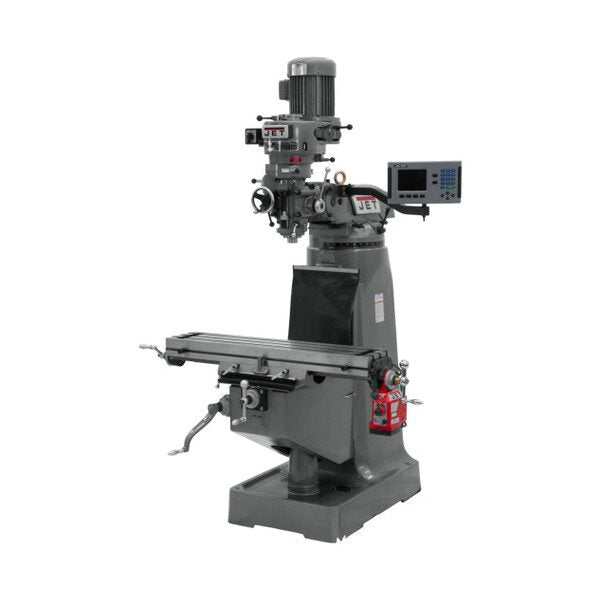

JET 9x42 Vertical Milling Machine
JET 9x42 Vertical Milling Machine
SKU:MIL-a83f91
Experience precision and durability with the JET 9x42 Vertical Milling Machine, designed to meet your industrial machining needs effectively.
Regular price
$12,699.99
Regular price
Sale price
$12,699.99
Unit price
per
Initiate Order
JET 9x42 Vertical Milling Machine
$12,699.99
Quantity: 1
Claim Your Seller Account
JET 9x42 Vertical Milling Machine
$12,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 9x42 Inch Step Pulley Vertical Milling Machine, model JTM-2, offers precision engineering with Meehanite® castings, Class 7 spindle bearings, and hardened table. With a 2HP motor and multiple head adjustments, this machine ensures reliable performance with features like a one-shot lubrication system and over 10 inches of ram travel. Backed by a 2-year warranty, it's ideal for industrial workshops and educational institutions seeking durability and accuracy.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Certified Meehanite® CastingsPrecision bored and honed milling headLarge diameter quill is chromedHigh precision spindle bearingsOver 10â of front to back ram travelLocks on all movable surfacesLocks on all movable surfacesHead tilts left or rightHardened and ground precision tablePrecision ground dovetail waysOne shot lubrication systemWay coversDraw barTool box and tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
82 in
Technical Specs Length
57 in
Technical Specs Maximum Distance Spindle To Column
19 in
Technical Specs Maximum Distance Spindle To Table
17 1/2 in
Technical Specs Model
JTM-2
Technical Specs Number Of Spindle Speeds
8
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
13-3/8 in
Technical Specs Spindle Motor Phase
1
Technical Specs Spindle Motor Power
2 hp
Technical Specs Spindle Speeds
80 to 2720 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
4-1/2 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Step Pulley R8
Technical Specs Table Longitudinal Travel With Powerfeed
20 2/7 in
Technical Specs Table Size
9 x 42 in
Technical Specs Travel Of Knee
14-1/2 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
115 to 230 V
Technical Specs Weight
2200 lb
Technical Specs Width
64 in
Technical Specs Working Table Cross Travel
12 1/2 in
Technical Specs Working Table Longitudinal Travel
23 7/8 in
Technical Specs Work Table Weight Capacity
550 lb
