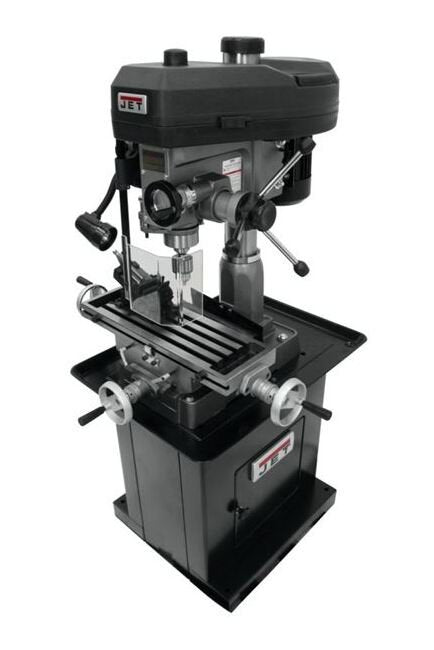

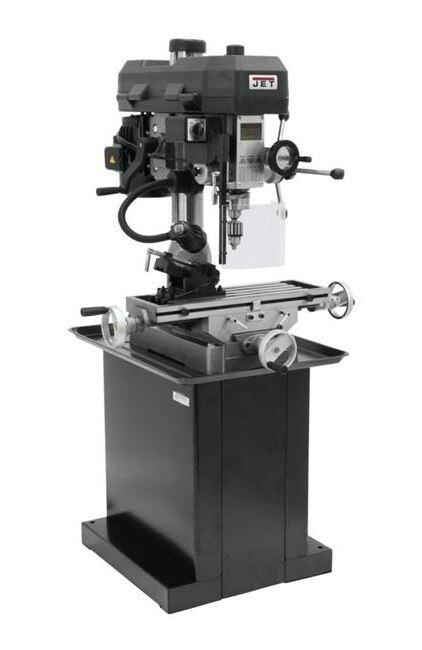

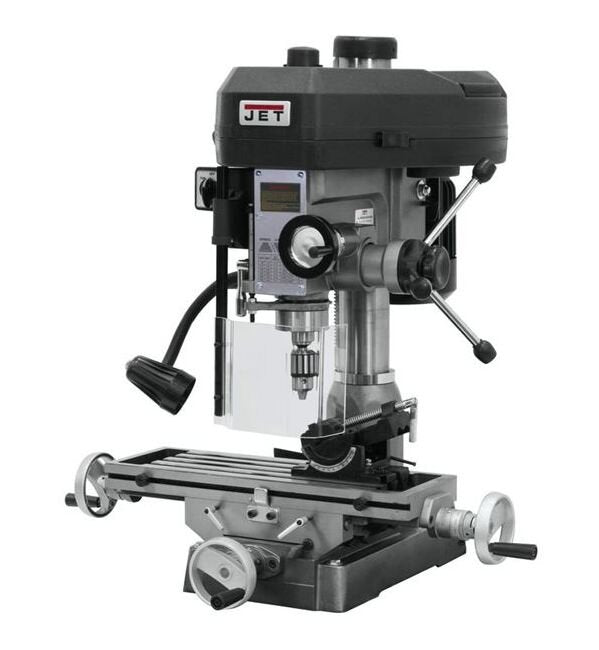

JET Belt Drive Mill/Drill Machine - Heavy Duty Industrial Grade

JET Belt Drive Mill/Drill Machine - Heavy Duty Industrial Grade

SKU:DRI-5bfc29

JET Belt Drive Mill/Drill Machine - Heavy Duty Industrial Grade, 1 HP motor, 12 speeds, 14" swing, for precision drilling and milling.

Regular price $2,799.99
Regular price Sale price $2,799.99
Sale

Initiate Order

JET Belt Drive Mill/Drill Machine - Heavy Duty Industrial Grade

JET Belt Drive Mill/Drill Machine - Heavy Duty Industrial Grade

$2,799.99

Quantity: 1

Claim Your Seller Account

JET Belt Drive Mill/Drill Machine - Heavy Duty Industrial Grade

JET Belt Drive Mill/Drill Machine - Heavy Duty Industrial Grade

$2,799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The JET Belt Drive Mill/Drill Machine combines the precision of a milling machine with the power of a belt-driven drill press, offering exceptional flexibility and efficiency. Constructed with a one-piece cast iron column for added stability, this machine is designed for heavy-duty industrial applications. Featuring a 1 HP motor, 12 spindle speeds ranging from 110 to 2,580 RPM, and a 14-inch swing, it provides precision drilling and milling capabilities. With a 350 lb work table weight capacity, 360° head swivel, UL listed motor, and easy-to-read external depth gauge, this machine ensures smooth operation and maximum productivity.

Product Specifications

Features Features

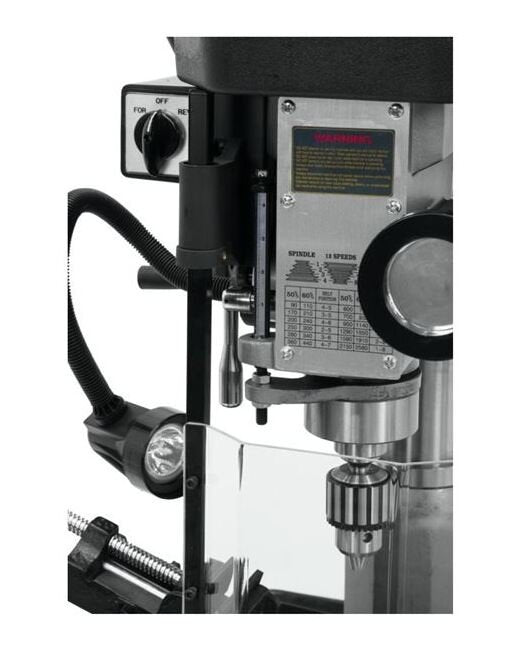

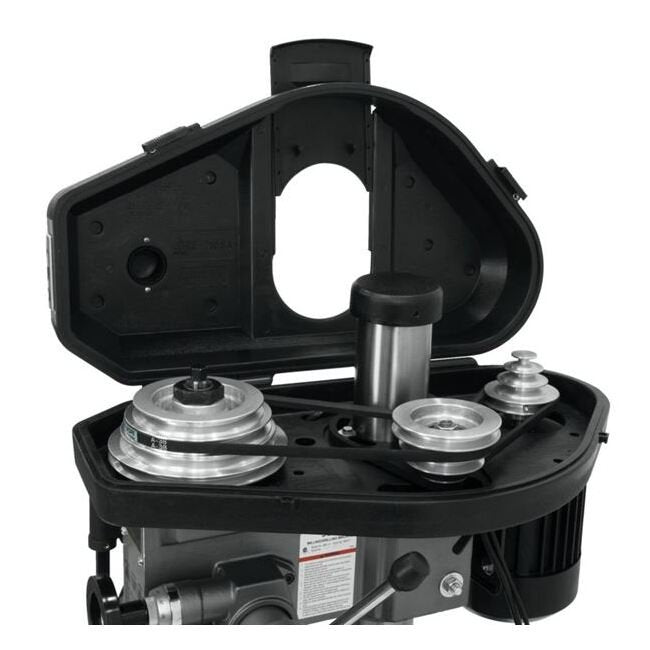

One-piece cast iron column for added supportBelt cover with quick slide latch allows faster belt adjustment to change spindle speedsBase taper allows for easier clean upDrill Press angle viseUL Listed motorExtra large worktableEasy to read external depth gauge360° head swivelWork lamp1/2" drill chuck, chuck arborDraw barDrill Chuck GuardAdjustable Carbide facemill
Technical Specs Base Dimensions
12-1/2 x 19-3/4 in
Technical Specs Brands
JET
Technical Specs Column Diameter
3-5/8 in
Technical Specs Distance Spindle To Table Max
14-1/2 in
Technical Specs Drilling Capacity
1 in
Technical Specs End Mill Capacity
1/2 in
Technical Specs Face Mill Capacity
1/2 in
Technical Specs Motor Horse Power Hp
1 hp
Technical Specs Motor Voltage
115 V | 230 V
Technical Specs Number Of Phase
1
Technical Specs Number Of Spindle Speeds
12
Technical Specs Overall Height
42 in
Technical Specs Overall Length
38 in
Technical Specs Overall Width
37-1/2 in
Technical Specs Quill Diameter
2-7/16 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
110 to 2,580 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
3-1/2 in
Technical Specs Swing
14-1/2 in
Technical Specs Table Length
7-1/2 in
Technical Specs Table Longitudinal Travel
14 in
Technical Specs Table Width
23 in
Technical Specs T Slots Number And Size
4 in | 9/16 in
Technical Specs T Slot Centers
1-13/16 in
Technical Specs Weight
440 lb
Technical Specs Work Table Weight Capacity
350 lb
