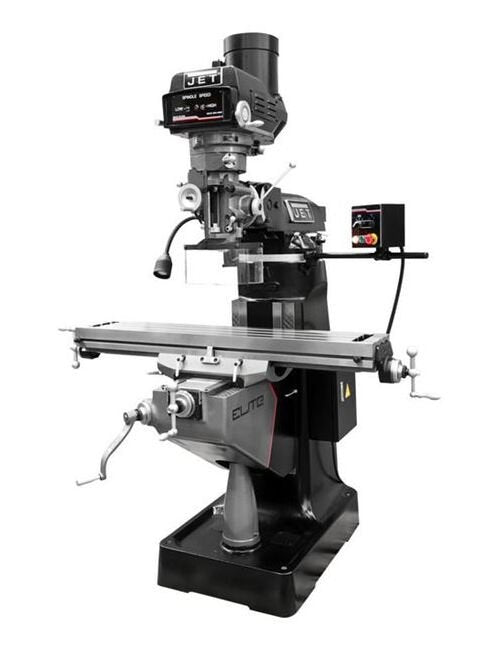

JET Elite ETM-949 Variable Speed Milling Machine with ACU-RITE 203 DRO
JET Elite ETM-949 Variable Speed Milling Machine with ACU-RITE 203 DRO
SKU:MIL-b325e4
Experience precision machining with the JET Elite ETM-949 Milling Machine. 3-axis DRO & Power Feed for ultimate control.
Regular price
$16,999.99
Regular price
Sale price
$16,999.99
Unit price
per
Initiate Order
JET Elite ETM-949 Variable Speed Milling Machine with ACU-RITE 203 DRO
$16,999.99
Quantity: 1
Claim Your Seller Account
JET Elite ETM-949 Variable Speed Milling Machine with ACU-RITE 203 DRO
$16,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET Elite ETM-949 Variable Speed Milling Machine is a powerhouse in precision machining. With a 3-axis ACU-RITE DRO and JET X, Y, Z-Axis Power Feed, this mill offers unbeatable accuracy and control. Featuring high-grade precision bearings, advanced double nut design, and Meehanite® castings, it ensures durability and consistency. Compliance with CSA Group safety standards and electronic spindle brake add an extra layer of protection. Ideal for industrial applications requiring top-notch performance and reliability.
Product Specifications
Features Features

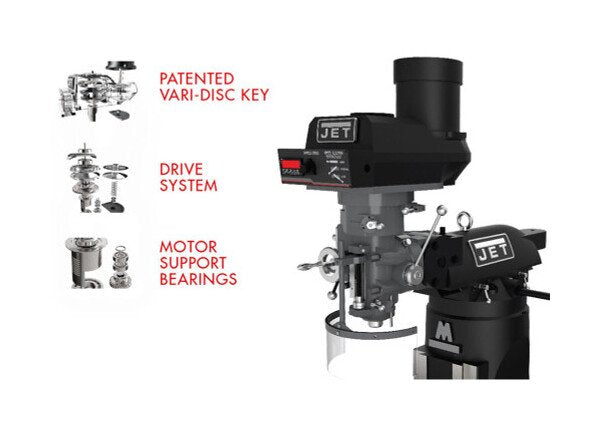

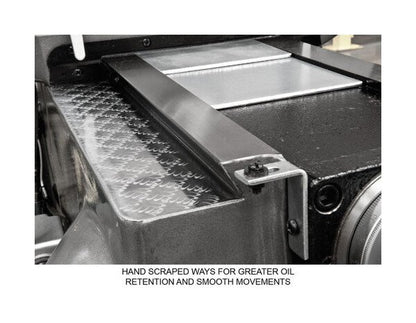

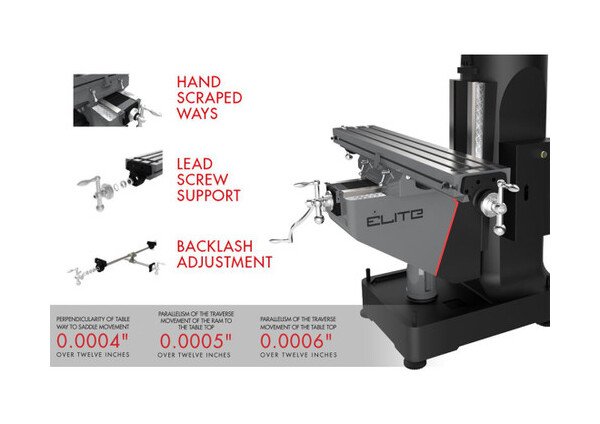

Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012"Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerancesSeamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracyThe Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movementsHeat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under loadThe table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movementsA patented vari-disc key provides up to ten times the wear resistance than aluminum or brass keysVariable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitionsBall bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speedHardened and ground table provides a stable and accurate platform for milling a diverse variety of materialsEvery thirty minutes, with a flow of 3 to 6 cc/cy your Elite mill is automatically lubricatedStainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal coverCertified Meehanite® castings retain their tolerances and remain rigid through many years of machiningThe electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start upsThe mounted control box houses major mill functions as well as an emergency stop buttonFor added safety, the ETM-949 Mill follows strict guidelines and electrical requirements to be certified by CSA Group
Standard Equipment Standard Equipment
Spindle Safety GuardHalogen Machine LampDual Locks On All SurfacesToolbox with ToolsTolerance Test Sheet
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Current Draw At 230 Volt V And 3 Phase Ph
18 A
Technical Specs Current Draw At 460 Volt V And 3 Phase Ph
9 A
Technical Specs Digital Readout
3-Axis (Knee) ACU-RITE 203
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
84 in
Technical Specs Length
68 in
Technical Specs Maximum Distance Spindle To Column
21-2/5 in
Technical Specs Maximum Distance Spindle To Table
18 3/4 in
Technical Specs Model
ETM-949
Technical Specs Powerfeed
JET X, Y And Z-Axis Power feeds
Technical Specs Prewired Voltage
230 V
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
14 in
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
6 1/2 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Variable Speed
Technical Specs Table Size
9 x 49 in
Technical Specs Travel Of Knee
16 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
230 V
Technical Specs Weight
2420 lb
Technical Specs Width
63 in
Technical Specs Working Table Cross Travel
12 in
Technical Specs Working Table Longitudinal Travel
35 in
Technical Specs Work Table Weight Capacity
550 lb
