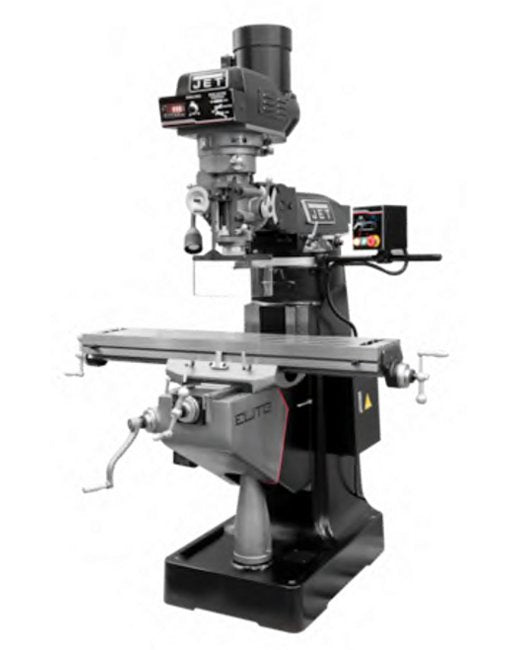

JET Elite ETM-949EVS Electronic Variable Speed Mill
JET Elite ETM-949EVS Electronic Variable Speed Mill
SKU:MIL-87eb16
Experience unrivaled precision and reliability with the JET Elite ETM-949EVS Mill, designed for safety and accuracy in industrial settings.
Regular price
$13,599.00
Regular price
Sale price
$13,599.00
Unit price
per
Initiate Order
JET Elite ETM-949EVS Electronic Variable Speed Mill
$13,599.00
Quantity: 1
Claim Your Seller Account
JET Elite ETM-949EVS Electronic Variable Speed Mill
$13,599.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET Elite ETM-949EVS Mill is a pinnacle of precision engineering, designed to meet strict tolerance requirements for precise machining. With features like patented vari-disc key, Meehanite® castings, and chromium molybdenum spindle, this mill ensures durability and accuracy for years to come. Certified to CSA/CUS safety standards, it includes safety features like spindle guard and electronic spindle brake for operator protection. Ideal for industrial use, this mill combines reliability, performance, and safety in one robust machine.
Product Specifications
Features Features

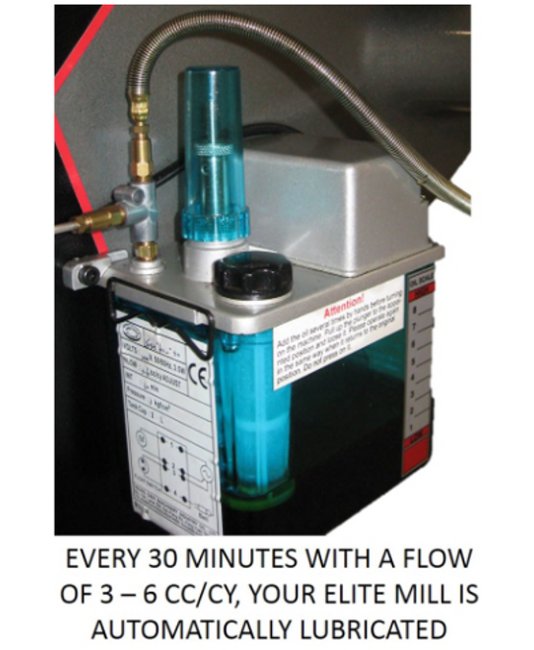

A patented vari-disc key provides upt to ten times the wear resistance than aluminum or brass keys.Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed.Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining.Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances.Every thirty minutes, with a flow of 3 to 6 cc/cy your Elite mill is automatically lubricated.Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials.Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load.Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy.Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012â.Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover.The electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups.The mounted control box houses major mill functions as well as an emergency stop button.The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements.The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements.Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions.
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Current Draw At 230 Volt V And 3 Phase Ph
18 A
Technical Specs Distance From Spindle Nose To Table
21-2/5 in
Technical Specs Maximum Distance Spindle To Column
21-2/5 in
Technical Specs Maximum Distance Spindle To Table
18-3/4 in
Technical Specs Maximum Distance To Table
18 3/4 in
Technical Specs Overall Height
84 in
Technical Specs Overall Length
68 in
Technical Specs Overall Width
63 in
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 5000 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Style
Variable Speed
Technical Specs Table Cross Travel
12 in
Technical Specs Table Longitudinal Travel
35 in
Technical Specs Travel Of Knee
16 in
Technical Specs Travel Of Ram
14 in
Technical Specs T Slots Centers
2-1/2 in
Technical Specs Voltage
230 V
Technical Specs Work Table Weight Capacity
550 lb
