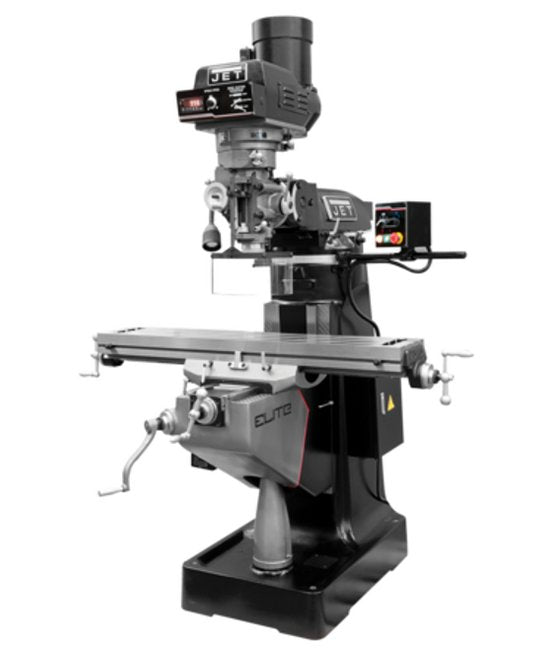

The JET Elite Milling Machine sets the standard for precision and durability in machining operations. Crafted with a focus on accuracy, this mill features a patented vari-disc key for enhanced wear resistance, Meehanite® castings for rigidity, and a hardened Chromium Molybdenum spindle for strict tolerances. Automatic lubrication, hardened table, and polished lead screws ensure smooth and stable milling. With industry-leading spindle taper runout and advanced control features, the Elite Milling Machine offers quiet, accurate, and reliable performance, making it ideal for both industrial and institutional applications.
Product Specifications
Features Features

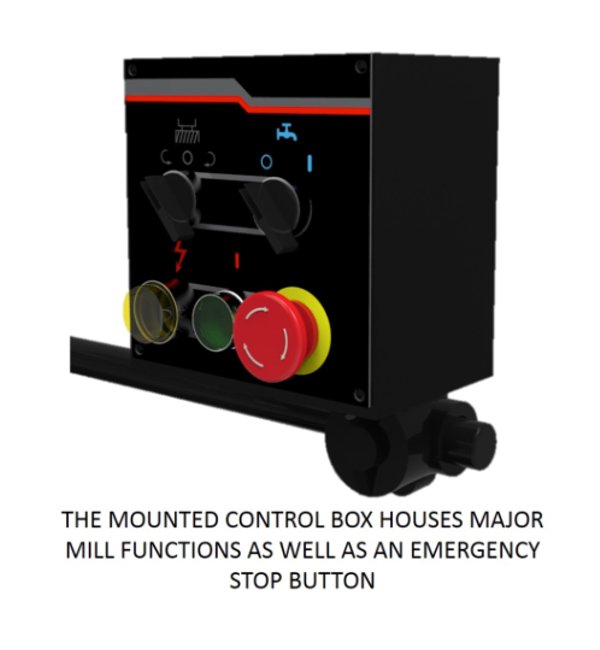

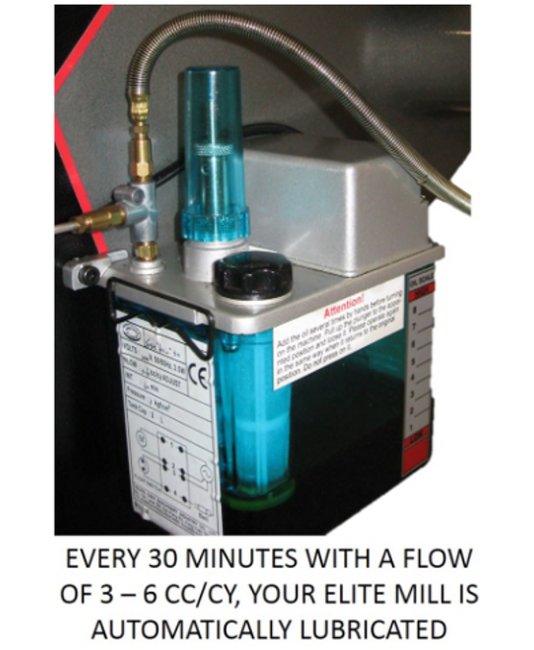

A patented vari-disc key provides upt to ten times the wear resistance than aluminum or brass keys.Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed.Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining.Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances.Every thirty minutes, with a flow of 3 to 6 cc/cy your Elite mill is automatically lubricated.Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials.Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load.Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy.Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012â.Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover.The electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups.The mounted control box houses major mill functions as well as an emergency stop button.The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements.The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements.Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions.
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Current Draw At 230 Volt V And 3 Phase Ph
18 A
Technical Specs Height
84 in
Technical Specs Length
63 in
Technical Specs Maximum Distance Spindle To Column
21-2/5 in
Technical Specs Maximum Distance To Table
18 3/4 in
Technical Specs Quill Diameter Chromed
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
14 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 5000 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Style
Variable Speed
Technical Specs Travel Of Knee
16 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs Voltage
230 V
Technical Specs Width
63 in
Technical Specs Working Table Cross Travel
12 in
Technical Specs Working Table Longitudinal Travel
35 in
Technical Specs Work Table Weight Capacity
550 lb
