JET Geared Head Mill/Drill Press JMD-40GHPF with Power Downfeed
JET Geared Head Mill/Drill Press JMD-40GHPF with Power Downfeed
SKU:DRI-b739b6
Discover precision and power with the JET Geared Head Mill/Drill Press JMD-40GHPF. CSA/CUS certified for safety & accuracy!
Regular price
$3,199.99
Regular price
Sale price
$3,199.99
Unit price
per
Initiate Order
JET Geared Head Mill/Drill Press JMD-40GHPF with Power Downfeed
$3,199.99
Quantity: 1
Claim Your Seller Account
JET Geared Head Mill/Drill Press JMD-40GHPF with Power Downfeed
$3,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

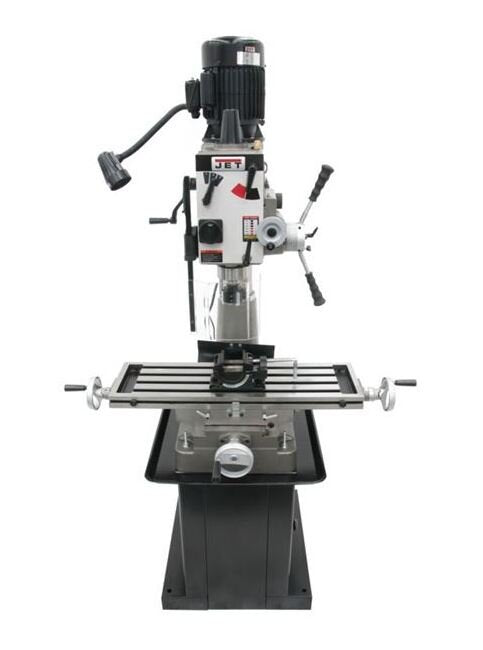

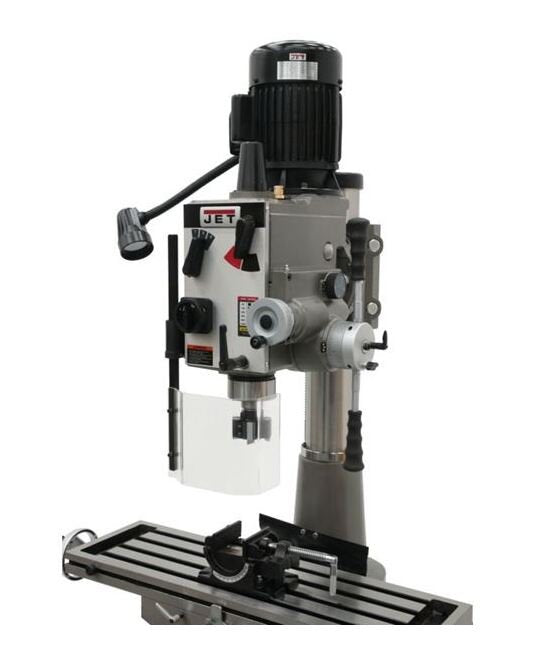

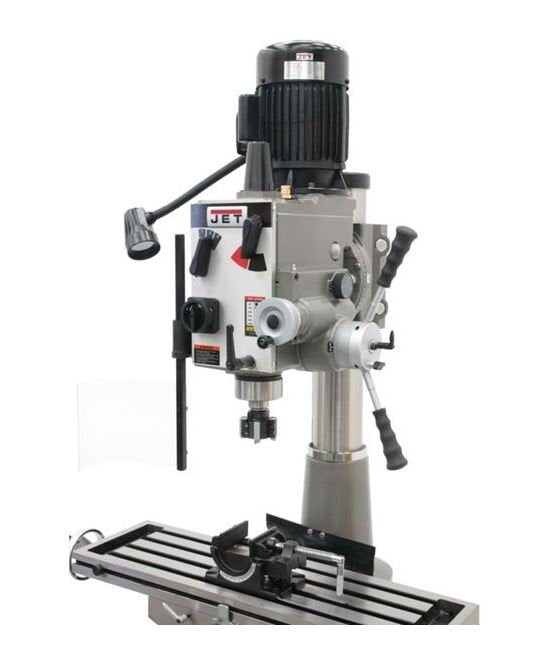

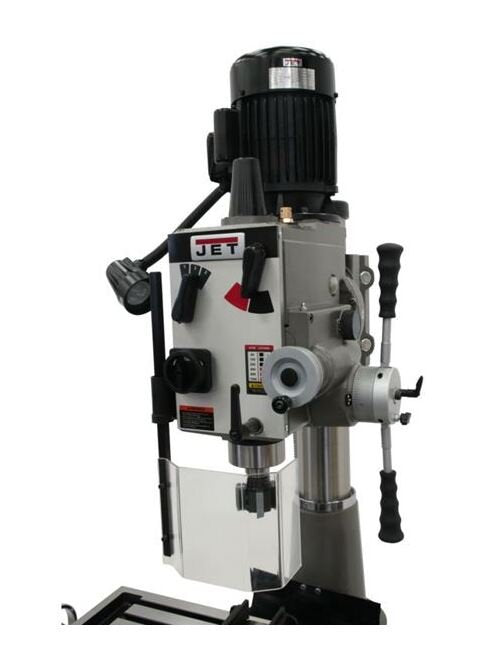

The JET JMD-40GHPF Geared Head Mill/Drill Press with Power Downfeed is a heavy-duty precision tool designed for professional drilling applications. Featuring 6 RPM spindle speeds ranging from 65 to 1550 RPM, this CSA/CUS certified machine ensures full power to cutting tools. With a 1-1/2 HP motor, a 3-inch quill diameter, and a 21-inch swing capacity, it offers unparalleled accuracy. The JMD-40GHPF includes a spindle guard, work lamp, calibrated fine downfeed, and a tilted head for versatile operation. Meeting strict electrical requirements and safety guidelines, this drill press is ideal for precise machining tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features

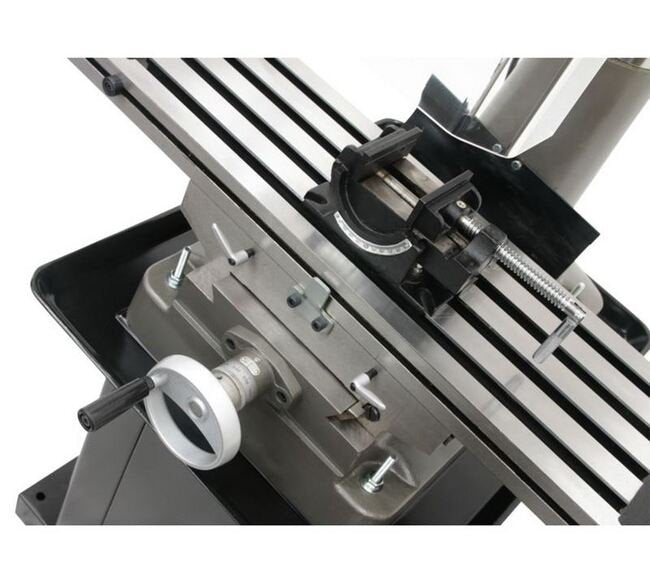

Heavy-duty design allows for a variety of precision drilling applicationsFull power to the cutting tools through 6 speed geared headCSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certifiedSpindle guardWork LampCalibrated fine down feed built inEasy to read internal depth gaugeHead tilts left & right 90ºRapid spindle speed changes through quick-select gear shift leversForward/reverse switchPower Downfeed standardMilling table allows for movementR8 spindle allows use of all mill tooling
Technical Specs Auto Spindle Travel
4-1/2 in
Technical Specs Base Dimensions
24-1/4 x 15-15/16 in
Technical Specs Brands
JET
Technical Specs Column Diameter
4-1/2 in
Technical Specs Item Number
351041
Technical Specs Maximum Distance Spindle Table
15-3/4 in
Technical Specs Motor Horse Power Hp
1-1/2 hp | 115 V | 230 V
Technical Specs Motor Phase
1
Technical Specs Number Of Spindle Speeds
6 rpm
Technical Specs Quill Diameter
3 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
65 to1550 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Swing
21 in
Technical Specs Table Longitudinal Travel
20 to 1/2 in
Technical Specs Table Size Length
8-1/4 in
Technical Specs Table Size Width
28-3/4 in
Technical Specs Table T Slots Number And Size
5/8 in | 4 in
Technical Specs Weight
721 lb
