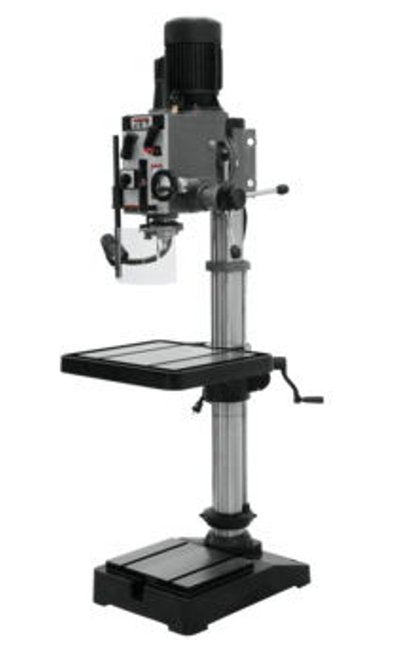

JET GHD-20 20 Inch Gear Head Drill Press
JET GHD-20 20 Inch Gear Head Drill Press
SKU:DRI-7bdae1
Achieve precision drilling with the JET GHD-20 20 Inch Gear Head Drill Press, designed for efficiency and accuracy across materials.
Regular price
$3,799.00
Regular price
Sale price
$3,799.00
Unit price
per
Initiate Order
JET GHD-20 20 Inch Gear Head Drill Press
$3,799.00
Quantity: 1
Claim Your Seller Account
JET GHD-20 20 Inch Gear Head Drill Press
$3,799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET GHD-20 20 Inch Gear Head Drill Press is a robust and reliable solution for precise and repetitive drilling tasks across a variety of materials. Equipped with helical gears for smooth, quiet operation and a wide range of spindle speeds, this drill press offers exceptional versatility. Its T-slotted table, 360° rotating head and table, and large production table with T-slots enhance usability and accuracy. With features like a built-in spindle lock, calibrated fine down feed, and a powerful TEFC motor, this drill press is designed for efficiency and accuracy in industrial settings. Perfect for meeting the demanding drilling requirements of both consumer workshops and institutional facilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Heavy-duty design allows a variety of precision drilling applicationsLarge production table and T-slotted baseEasy-to-read internal depth gaugeThree power down feed ratesCalibrated fine down feed built inTEFC motorBuilt-in spindle lockHead tilts left or rightEasily accessible table raiserDrill chuck arborDraw bar
Technical Specs Base Dimensions
26 x 18 in
Technical Specs Base Slots Number And Size
2 in | 5/8 in
Technical Specs Base Work Table
15-1/4 x 13 in
Technical Specs Brands
JET
Technical Specs Column Diameter
4-1/2 in
Technical Specs Distance Column Spindle
10 in
Technical Specs Drilling Capacity Cast Iron
1-1/2 in
Technical Specs Drilling Capacity Mild Steel
1 to 1/4 in
Technical Specs Drills To Center Of Circle
20 in
Technical Specs Height
71 in
Technical Specs Length
32 in
Technical Specs Maximum Spindle Distance Table
30-1/2 in
Technical Specs Motor Horse Power Hp
2 hp | 230 V
Technical Specs Motor Phase
3
Technical Specs Prewired Voltage
230 V
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
120 rpm | 130 rpm | 1500 rpm | 1600 rpm | 230 rpm | 260 rpm | 3000 rpm | 450 rpm | 460 rpm | 60 rpm | 800 rpm | 900 rpm
Technical Specs Spindle Distance Base
44-15/16 in
Technical Specs Spindle Taper
MT-3
Technical Specs Spindle Travel
4-1/2 in
Technical Specs Style Type
Geared Head
Technical Specs Table Size Length
21-3/4 in
Technical Specs Table Size Width
19-1/2 in
Technical Specs Table Travel
25-1/2 in
Technical Specs T Slots Number And Size
2 in | 5/8 in
Technical Specs T Slot Centers
9 in
Technical Specs Weight
660 lb
Technical Specs Width
24 in
Technical Specs Work Table Weight Capacity
275 lb
