JET GHD-20PF Geared Head Drill Press with Power Down Feed
JET GHD-20PF Geared Head Drill Press with Power Down Feed
SKU:DRI-c81be0
Achieve precision drilling with ease and efficiency using the JET GHD-20PF Gear Head Drill Press.
Regular price
$3,899.00
Regular price
Sale price
$3,899.00
Unit price
per
Initiate Order
JET GHD-20PF Geared Head Drill Press with Power Down Feed
$3,899.00
Quantity: 1
Claim Your Seller Account
JET GHD-20PF Geared Head Drill Press with Power Down Feed
$3,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

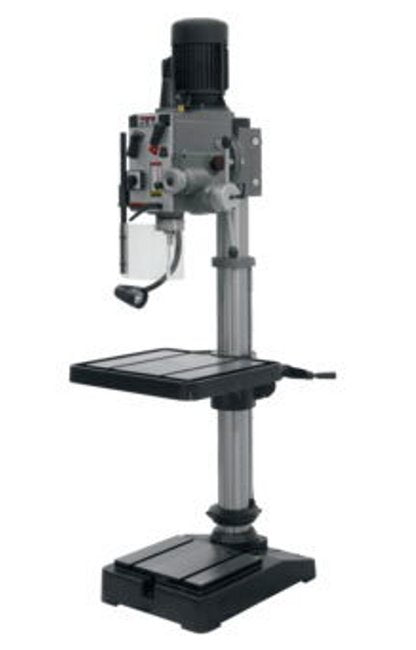

The JET GHD-20PF 20-inch Gear Head Drill Press is a heavy-duty machine designed for precision drilling applications. Equipped with a variety of features including an easy-to-read internal depth gauge, three power down feed rates, calibrated fine down feed, and a built-in spindle lock, this drill press ensures accuracy and efficiency in drilling tasks. With a 2 HP TEFC motor, large production table, T-slotted base, and the ability to tilt the head left or right, this drill press offers versatility and ease of use. Backed by a Two-Year Warranty, the JET GHD-20PF is a reliable tool for both professional workshops and industrial settings.
Product Specifications
Features Features
Heavy-duty design allows a variety of precision drilling applicationsLarge production table and T-slotted baseEasy-to-read internal depth gaugeThree power down feed ratesCalibrated fine down feed built inTEFC motorBuilt-in spindle lockHead tilts left or rightEasily accessible table raiserDrill chuck arborDraw bar
Technical Specs Base Dimensions
26 x 18 in
Technical Specs Base Slots Number And Size
2 in | 5/8 in
Technical Specs Base Work Table
15-1/4 x 13 in
Technical Specs Brands
JET
Technical Specs Column Diameter
4-1/2 in
Technical Specs Distance Column Spindle
10 in
Technical Specs Drilling Capacity Cast Iron
1-1/2 in
Technical Specs Drilling Capacity Mild Steel
1 to 1/4 in
Technical Specs Drills To Center Of Circle
20 in
Technical Specs Height
71 in
Technical Specs Length
32 in
Technical Specs Maximum Spindle Distance Table
30-1/2 in
Technical Specs Motor Horse Power Hp
2 hp | 230 V
Technical Specs Motor Phase
3
Technical Specs Prewired Voltage
230 V
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
120 rpm | 130 rpm | 1500 rpm | 1600 rpm | 230 rpm | 260 rpm | 3000 rpm | 450 rpm | 460 rpm | 60 rpm | 800 rpm | 900 rpm
Technical Specs Spindle Distance Base
44-15/16 in
Technical Specs Spindle Taper
MT-3
Technical Specs Spindle Travel
4-1/2 in
Technical Specs Style Type
Geared Head
Technical Specs Table Size Length
21-3/4 in
Technical Specs Table Size Width
19-1/2 in
Technical Specs Table Travel
25-1/2 in
Technical Specs T Slots Number And Size
2 in | 5/8 in
Technical Specs T Slot Centers
9 in
Technical Specs Weight
660 lb
Technical Specs Width
24 in
Technical Specs Work Table Weight Capacity
275 lb
