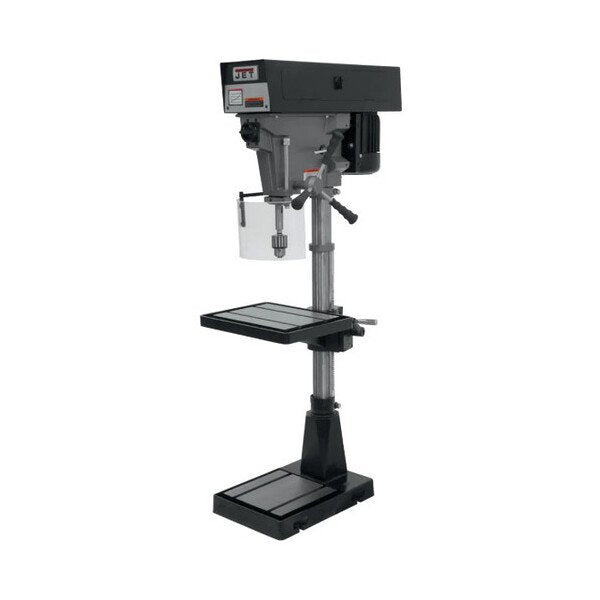

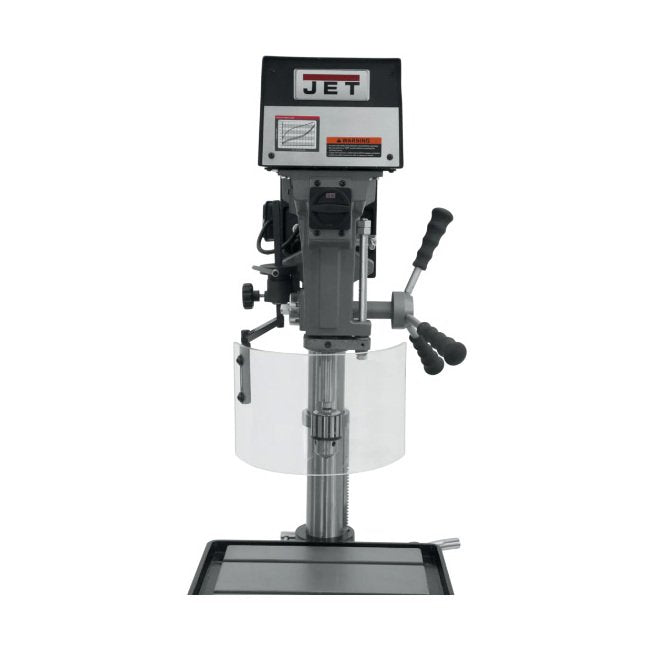

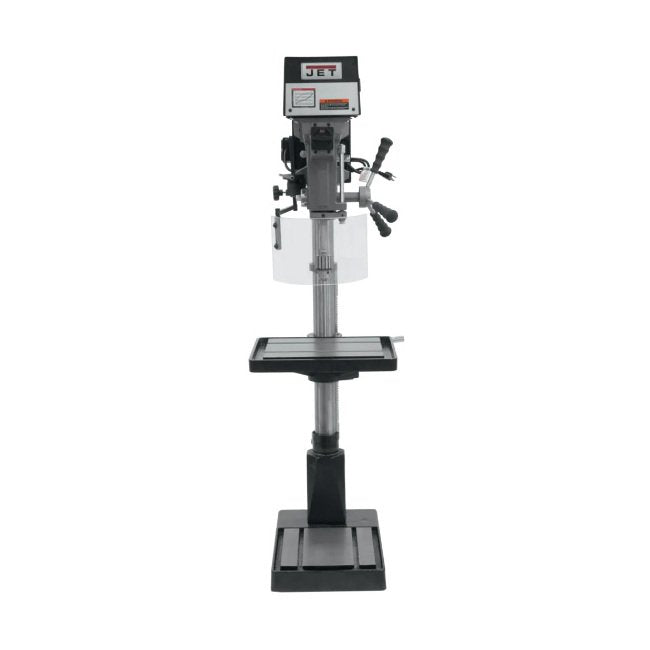

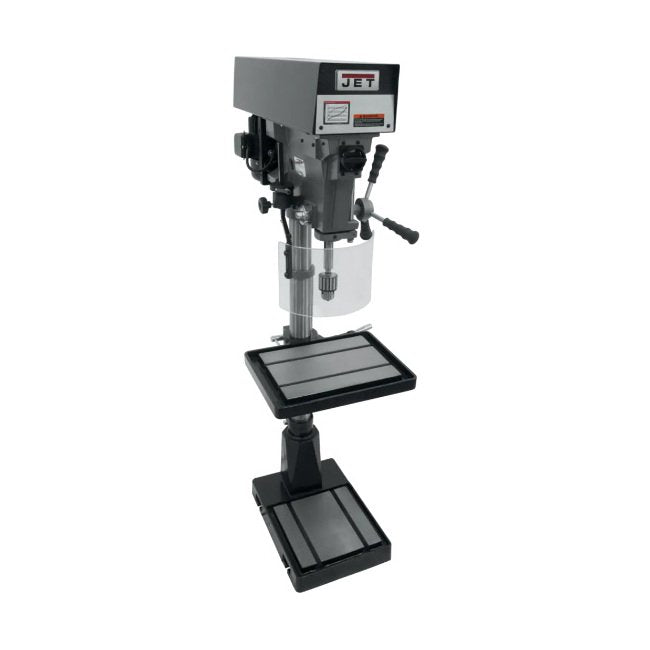

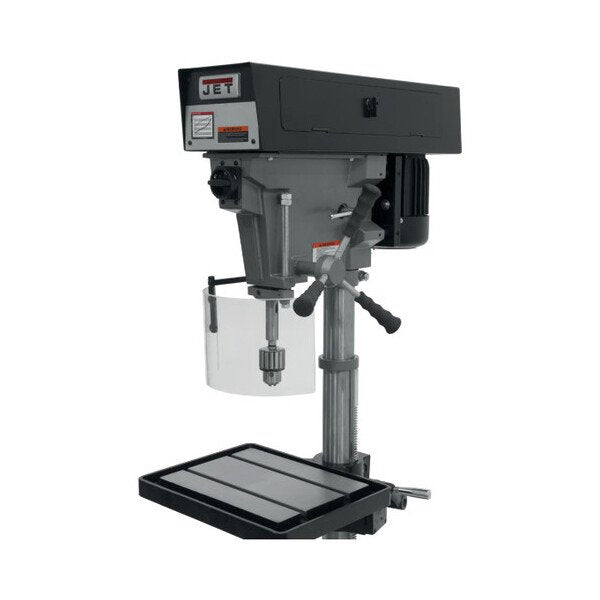

JET Heavy Duty 15-Inch 6-Speed Floor Model Drill Press
JET Heavy Duty 15-Inch 6-Speed Floor Model Drill Press
SKU:DRI-5753e4
Enhance metalworking precision with the JET Heavy Duty 15" Drill Press, offering versatile speed control and uncompromising accuracy.
Regular price
$1,899.00
Regular price
Sale price
$1,899.00
Unit price
per
Initiate Order
JET Heavy Duty 15-Inch 6-Speed Floor Model Drill Press
$1,899.00
Quantity: 1
Claim Your Seller Account
JET Heavy Duty 15-Inch 6-Speed Floor Model Drill Press
$1,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET Heavy Duty 15-Inch Floor Model Drill Press is designed for precision metalworking applications, featuring a sturdy construction for tight tolerances. With a wide range of spindle speeds from 375 to 5,000 RPM, this drill press offers versatility for drilling various hole sizes. The large quill ensures accuracy, while the spacious production table and robust 3-inch column provide excellent support. Meeting industry standards, this drill press is a reliable choice for both small-scale workshops and industrial settings.
Product Specifications
Features Features
Constructed to provide a solid base for drilling6-Spindle Speeds from 375 to 5,000 RPMLarger quill provides greater accuracyLarge production table3" column for maximum head support1/2" drill chuck and arbor includedDrill chuck guard
Technical Specs Base Dimensions
20-7/8 x 14-3/16 x 3-1/8 in
Technical Specs Base Slots Number And Size
1/2 in | 2 in
Technical Specs Base Work Table
12-1/8 x 11-13/16 in
Technical Specs Brands
JET
Technical Specs Column Diameter
3 in
Technical Specs Distance From Column To Spindle
15 in
Technical Specs Distance Spindle To Table Max
25-3/4 in
Technical Specs Drilling Capacity Cast Iron
5/8 in
Technical Specs Drilling Capacity Mild Steel
1/2 in
Technical Specs Drills To Center Of Circle
15 in
Technical Specs Motor Horse Power Hp
1 hp
Technical Specs Motor Voltage
115 V | 230 V
Technical Specs Number Of Spindle Speeds
6
Technical Specs Overall Height
71 in
Technical Specs Overall Length
30 in
Technical Specs Overall Width
20 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
1,125 rpm | 1,950 rpm | 3,400 rpm | 375 rpm | 5,000 rpm | 625 rpm
Technical Specs Spindle Distance To Base
44-1/2 in
Technical Specs Spindle Taper
MT2
Technical Specs Spindle Travel
6 in
Technical Specs Style Type
Belt Drive
Technical Specs Table Size
15 x 18 in
Technical Specs Table Travel
16-3/4 in
Technical Specs T Slots Number And Size
1/2 in | 2 in
Technical Specs T Slot Centers
5-5/16 in
Technical Specs Weight
394 lb
Technical Specs Work Table Weight Capacity
90 lb
