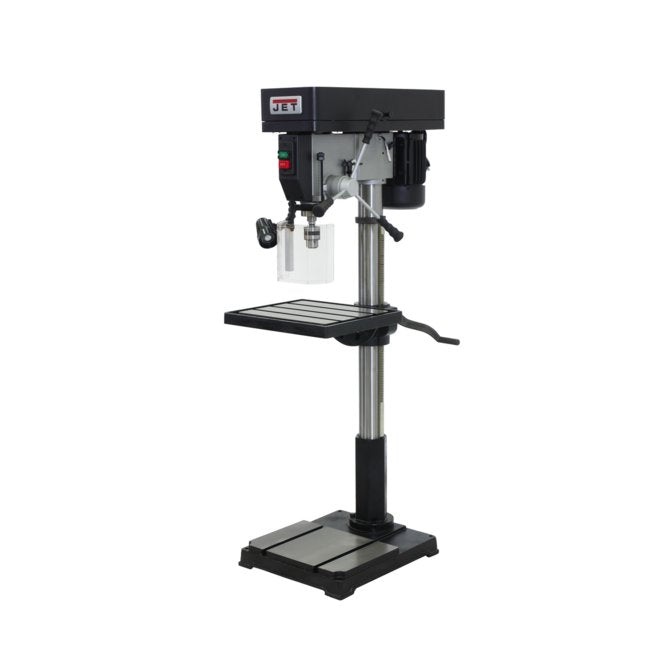

JET IDP-22 22" Industrial Floor Model Drill Press
JET IDP-22 22" Industrial Floor Model Drill Press
SKU:DRI-ec1df4
Achieve precision and efficiency with the JET IDP-22 22 inch Industrial Floor Model Drill Press. CSA certified, LED lamp, oversize table, and durable construction.
Regular price
$2,099.99
Regular price
Sale price
$2,099.99
Unit price
per
Initiate Order
JET IDP-22 22" Industrial Floor Model Drill Press
$2,099.99
Quantity: 1
Claim Your Seller Account
JET IDP-22 22" Industrial Floor Model Drill Press
$2,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET IDP-22 22" Industrial Floor Model Drill Press embodies precision, stability, and versatility, meeting the highest standards of industrial drilling. This heavy-duty machine features a robust construction, oversize table, LED machine lamp, and CSA certification for safety. With a range of spindle speeds, large hand grips, and an adjustable tension spindle return spring, this drill press ensures efficient and comfortable operation. The IDP-22 is designed for durability and performance, backed by JET's Two Year Warranty, making it a reliable choice for industrial applications.
Product Specifications
Features Features
For added Safety, the IDP-22, 22" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.Spindle is supported by high quality ball bearingsHinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speedsLarge Hand Grips designed with the users comfort in mindRotating, 45° tilting, crank-operated worktable with quick release clampA 1/2" diameter external positive depth stop with three nut locking feature for quick adjustmentAdjustable tension spindle return springDrill chuck and key attach to the side of the drill press always within reach of the operatorOn/off switch located on front of the drill press headHeavy Duty constructionCast Iron table and baseTable ground for accuracy
Standard Equipment Standard Equipment
LED Machine LampGround TableSpindle Safety GuardDrill Chuck and Key
Technical Specs Base Length
19-7/16 in
Technical Specs Base Slots Number And Size
2 in | 5/8 in
Technical Specs Base Width
22-5/8 in
Technical Specs Base Work Table
21-1/2 x 18-5/16 in
Technical Specs Brands
JET
Technical Specs Column Diameter
3-5 /8 in
Technical Specs Distance Column Spindle
10-7/8 in
Technical Specs Drilling Capacity Cast Iron
1-1/4 in
Technical Specs Drilling Capacity Mild Steel
1 in
Technical Specs Drills To Center Of Circle
22 in
Technical Specs Maximum Spindle Distance Table
28 in
Technical Specs Model
IDP-22
Technical Specs Motor Horse Power Hp
1-1/2 hp
Technical Specs Motor Phase
1
Technical Specs Motor Voltage
115 V | 230 V
Technical Specs Number Of Spindle Speeds
12 rpm
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
175 to 3,050 rpm
Technical Specs Spindle Distance Base
48-1/2 in
Technical Specs Spindle Taper
MT-3
Technical Specs Spindle Travel
4-13 / 16 in
Technical Specs Style Type
Belt Drive
Technical Specs Table Size Length
18-5/8 in
Technical Specs Table Size Width
16-1/8 in
Technical Specs Tapping Capacity Mild Steel
1 in
Technical Specs T Slot
3/4 in
Technical Specs T Slots Number And Size
2 and 5/8 in
Technical Specs Weight
364 lb
Technical Specs Work Table Weight Capacity
176 lb
