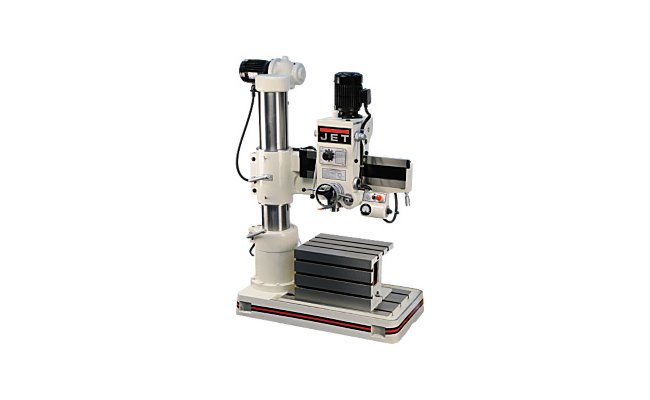

JET Industrial Radial Drill Press
JET Industrial Radial Drill Press
SKU:DRI-7453a1
Experience precision and strength with the JET Industrial Radial Drill Press, designed for heavy loads and maximum accuracy.
Regular price
$7,499.00
Regular price
Sale price
$7,499.00
Unit price
per
Initiate Order
JET Industrial Radial Drill Press
$7,499.00
Quantity: 1
Claim Your Seller Account
JET Industrial Radial Drill Press
$7,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET Industrial Radial Drill Press is a robust and precise machine designed to handle heavy drilling and boring loads with exceptional accuracy. Featuring a spindle made of case-hardened steel and supported by double row taper roller bearings, this drill press ensures durability and smooth operation. With six speeds and three feed rates, it can effortlessly drill, bore, and tap a variety of materials, including exotic alloys. The centralized control center, automatic tool ejector, and independent arm electric clamping system enhance usability and efficiency, while the Meehanite and cast iron frame provides the strength needed for the toughest jobs.
Product Specifications
Features Features
The power train gears and spline shafts are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loadsThe spindle is made of finest case hardened steel, for extra strength and wearThe spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the topBuild to withstand exceptionally heavy drilling and boring loads to insure maximum accuracyArm raising safety device prevents arm from droppingCounter balanced mechanism for spindle return6 Speeds/3 Feed rates make exotic materials easier to drill, bore and tapCentralized control centerAutomatic tool ejectorIndependent arm electric clamping system, which locks and unlocks the head and columnPush button controls are all reduced to 110VACElectrical circuits are located in the build-in control box at the rear of the arm. This keeps the controls dust-and-humidity-free while making them easily accessible for maintenanceEntire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
Technical Specs Arm Travel Vertical
23-13/16 in
Technical Specs Boring Capacity Cast Iron
4 in
Technical Specs Boring Capacity Steel
2-3/7 in
Technical Specs Brands
JET
Technical Specs Column Diameter
8-1/4 in
Technical Specs Coolant Pump Motor
1/8 hp
Technical Specs Distance From Column To Spindle
8-5/8 in
Technical Specs Drilling Capacity Cast Iron
2 in
Technical Specs Drilling Capacity Mild Steel
1-1/2 in
Technical Specs Machine Height From Floor
85-7/16 in
Technical Specs Maximum Distance Base Spindle
41-3/4 in
Technical Specs Minimum Distance Base Spindle
9-5/8 in
Technical Specs Minimum Distance From Column To Spindle
29-1/2 in
Technical Specs Net Weight
2970 lb
Technical Specs Number Of Phase
3
Technical Specs Number Of Spindle Speeds
6
Technical Specs Overall Height
85 in
Technical Specs Overall Length
64 in
Technical Specs Overall Width
32 in
Technical Specs Prewired Voltage
230 V
Technical Specs Quill Down Feed Rates
0.002 | 0.004 | 0.006
Technical Specs Quill Travel
8-1/4 in
Technical Specs Quill Travel W Powerfeed Engaged
8 -1/4 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
88 to 1500 rpm
Technical Specs Spindle Taper
MT4
Technical Specs Table Size
23-5/8 x 17-1/2 x 15 in
Technical Specs Tapping Capacity Cast Iron
1 in
Technical Specs Tapping Capacity Mild Steel
3/4 in
Technical Specs Travel Of Head Horizontal
20-7/8 in
Technical Specs T Slots Number And Size
3 in | 3/4 in
