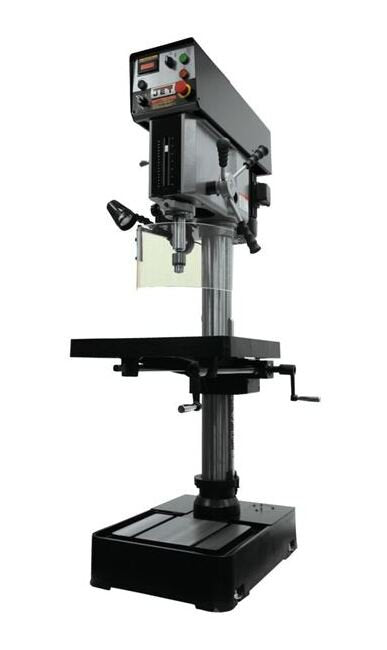

JET JDP-20VST Variable Speed Drill Press with Tapping Mode
JET JDP-20VST Variable Speed Drill Press with Tapping Mode
SKU:DRI-b57d1f
Experience precision and control with the JET JDP-20VST Drill Press. Variable speeds, LED display, and CSA/CUS certification for optimal performance.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
JET JDP-20VST Variable Speed Drill Press with Tapping Mode
$3,999.99
Quantity: 1
Claim Your Seller Account
JET JDP-20VST Variable Speed Drill Press with Tapping Mode
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET JDP-20VST Variable Speed Drill Press with Tapping Mode offers precision and control for industrial tasks. Featuring a solid steel column, heavy-duty cast iron base, and a massively constructed head, this drill press ensures accuracy and rigidity. With variable spindle speeds ranging from 65 to 2,000 RPMs, LED spindle RPM readout, and a front-mounted depth stop, it enhances work efficiency. CSA/CUS certified, the JET JDP-20VST meets stringent quality and electrical requirements, making it ideal for institutional buyers seeking top-notch performance and safety.
Product Specifications
Features Features
Steel ColumnHeavy-Duty Casted Iron DesignHead is massively constructed for more accuracy and rigidityLarge Precision Ground T-slot Production Table for easy set upsMassive 3" Quill DiameterCSA Coolant SystemCSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certifiedLED Machine LampSpindle GuardVariable Spindle Speeds from 65 - 2,000 RPM'sFront Mounted LED Spindle RPM ReadoutFront Mounted Positive Control Depth StopTable rotates 360° around the columnMachine T-Slotted baseLarge Hand Grips designed with the Users comfort in mindSTANDARD EQUIPEMENTSpindle Safety GuardLED Machine LampCSA Coolant System
Technical Specs Base Dimensions
27 x 19 in
Technical Specs Base Slots Number And Size
2 in | 5/8 in
Technical Specs Brands
JET
Technical Specs Column Diameter Through Head E
4-1/2 in
Technical Specs Distance Spindle To Table Max
30-1/4 in
Technical Specs Drilling Capacity Cast Iron
1-1/2 in
Technical Specs Drilling Capacity Mild Steel
1-3/8 in
Technical Specs Drills To Center Of Circle
20 in
Technical Specs Maximum Distance From Column To Spindle
10-7/16 in
Technical Specs Model
JDP-20VST
Technical Specs Motor Horse Power Hp
2 hp
Technical Specs Motor Voltage
230 V
Technical Specs Number Of Phase
3
Technical Specs Number Of Spindle Speeds
Variable
Technical Specs Overall Height
79.52 in
Technical Specs Overall Length
38.18 in
Technical Specs Overall Width
27.16 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
150 to 2000 rpm
Technical Specs Spindle Distance To Base
44-1/2 in
Technical Specs Spindle Taper
MT3
Technical Specs Spindle Travel
6 in
Technical Specs Style Type
Variable Speed
Technical Specs Table Length
22 in
Technical Specs Table Travel
20 in
Technical Specs Table Width
18-3/4 in
Technical Specs Tapping Capacity Cast Iron
3/4 in
Technical Specs Tapping Capacity Mild Steel
5/8 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs T Slot Centers
7-7/16 in
Technical Specs Weight
780 lb
Technical Specs Work Table Weight Capacity
154 lb
