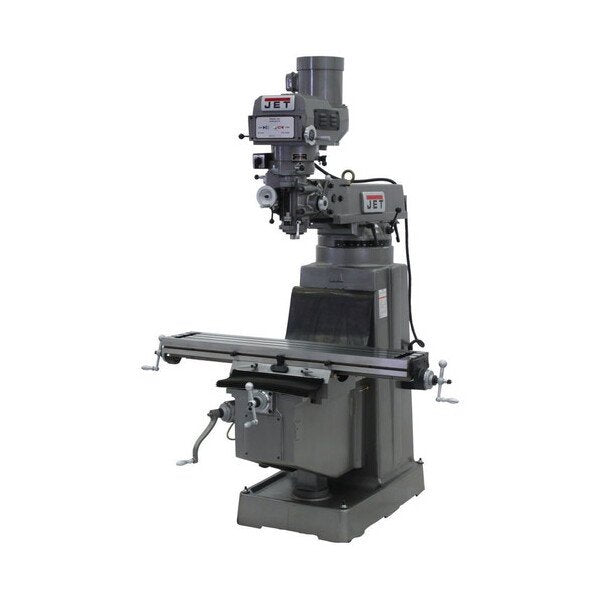

JET JTM-1050 CNC Milling Machine
JET JTM-1050 CNC Milling Machine
SKU:MIL-285a88
Enhance productivity with the JET JTM-1050 CNC Milling Machine's advanced CNC system, high-resolution display, and precision components.
Regular price
$18,799.99
Regular price
Sale price
$18,799.99
Unit price
per
Initiate Order
JET JTM-1050 CNC Milling Machine
$18,799.99
Quantity: 1
Claim Your Seller Account
JET JTM-1050 CNC Milling Machine
$18,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET JTM-1050 CNC Milling Machine combines precision and efficiency with its 3-axis ACU-RITE G-2 MILLPWR CNC system. Meehanite® casted for durability, it offers a 12.1" high-resolution display, offline software capability, and simplified conversational programming. With features like closed-loop feedback, powerful DC servo motors, and precise ball screws, this machine ensures optimal performance in industrial applications.
Product Specifications
Features Features
12.1" High resolution display (1024 x 768) with 3D graphics3-D Contouring, ability to import and run G-code files from CAD/CAM programsAvailable offline softwareBuilt-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programsCircles including the Pocket, Frame, Ring and Helix incorporate the new ramp feed featureClosed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolutionCustom Pockets and Islands utilize the new optimized path and ramp feed featuresEstimated runtime featureExpanded tool library and Datum offsetsHand wheels are included for manual operationJog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneouslyMay be used automatically or manually for ultimate shop versatilityMenu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps - follow the menu prompts and let MILLPWR G2 do the restMirror/Repeat/Rotate/Explode/Merge, easily manipulate, explode and merge part programs to save time and reduce program stepsPowerful DC Servo motor assemblies that include mounting castings and hardwarePrecision Ground Ball Screws eliminate backlash for precise lateral movementsProgram size limit increased by 90% to 9,999 stepsProgram preview provides a graphical representation prior to operationSimplified navigation that eliminates multiple menu screensUSB + Ethernet compatible
Technical Specs Brands
JET
Technical Specs Cnc Package
ACU-RITE MILLPWR® G2
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
3-Axis ACU-RITE G-2 MILLPWR CNC
Technical Specs Height
87 in
Technical Specs Item Number
690926
Technical Specs Length
96 in
Technical Specs Maximum Distance Spindle To Column
26 in
Technical Specs Maximum Distance Spindle To Table
19 in
Technical Specs Model
JTM-1050
Technical Specs Number Of Axis
3
Technical Specs Power Draw Bar
Pneumatic
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
20-1/2 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
70 to 3800 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Style
CNC
Technical Specs Table Size
10 x 50 in
Technical Specs Table Travel Cross
2 1/2 in
Technical Specs Travel Of Knee
14 1/4 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs Voltage
230 to 460 V
Technical Specs Weight
3200 lb
Technical Specs Width
69 in
Technical Specs Working Table Cross Travel
15 1/4 in
Technical Specs Working Table Longitudinal Travel
35 in
Technical Specs Work Table Weight Capacity
720 lb
