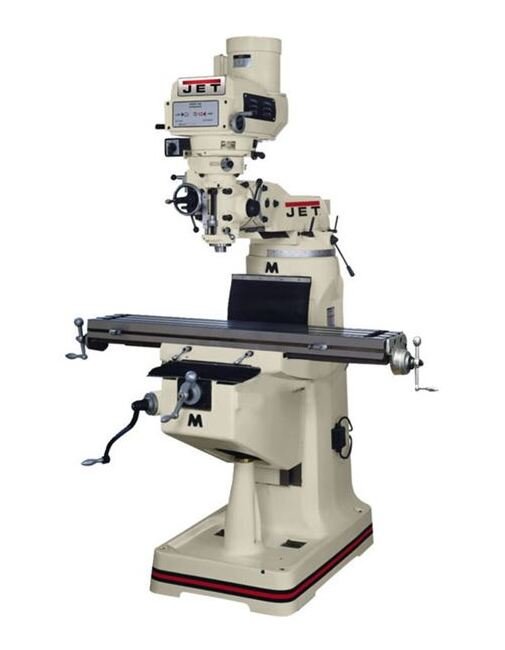

JET JTM-1050 Vertical Milling Machine
JET JTM-1050 Vertical Milling Machine
SKU:MIL-27f1b5
Experience precision and power with the JET JTM-1050 Vertical Milling Machine, engineered for excellence in performance and compliance.
Regular price
$33,999.00
Regular price
Sale price
$33,999.00
Unit price
per
Initiate Order
JET JTM-1050 Vertical Milling Machine
$33,999.00
Quantity: 1
Claim Your Seller Account
JET JTM-1050 Vertical Milling Machine
$33,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET JTM-1050 Vertical Milling Machine is a powerhouse featuring Certified Meehanite® castings, precision bearings, and chrome lead screws for top-notch performance. With chrome-plated motor shaft, internally cooled spindle head, and Newall DP700 DRO, this machine ensures high precision cuts. Designed with compliance in mind, it meets Federal procurement standards, FAR factors, and industry certifications, making it ideal for institutional buyers.
Product Specifications
Features Features
Certified Meehanite® CastingsHardened and ground tableChrome lead screws on X and Y axisTurcite B on X and Y axisSatin chrome finish on dialsPrecision bored and honed milling headLarge diameter quill is chromedHigh precision Class 7 spindle bearingSpindle head is internally cooledNo fuse breaker power connectionsHeavy duty motor driveChrome plated motor shaft with bearing support at endOne piece quill pinion and shaftThree stage power downfeed with automatic stopHeavy duty spindle breakLocks on all moveable surfacesHardened and ground square vertical knee ways and cross waysAdjustable gibs throughoutInternal coolant tank built into base for use with coolant system (coolant pump not included)Tolerance test sheet includedOne shot lubrication systemWay coversDraw barTool box with tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
2-Axis Newall DP700
Technical Specs Distance From Spindle Nose To Table
19 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
88 in
Technical Specs Item Number
691205
Technical Specs Length
96 in
Technical Specs Maximum Distance Spindle To Column
26 in
Technical Specs Minimum Distance From Spindle Axis Top Column
5-1/2 in
Technical Specs Model
JTM-1050
Technical Specs Powerfeed
X-Axis
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
20-1/2 in
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
70 to 3800 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Table Longitudinal Travel With Powerfeed
29 3/4 in
Technical Specs Table Size
10 x 50 in
Technical Specs Travel Of Knee
14 1/4 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
230 to 460 V
Technical Specs Weight
2900 lb
Technical Specs Width
78 in
Technical Specs Working Table Cross Travel
15 1/4 in
Technical Specs Working Table Longitudinal Travel
35 in
Technical Specs Work Table Weight Capacity
720 lb
