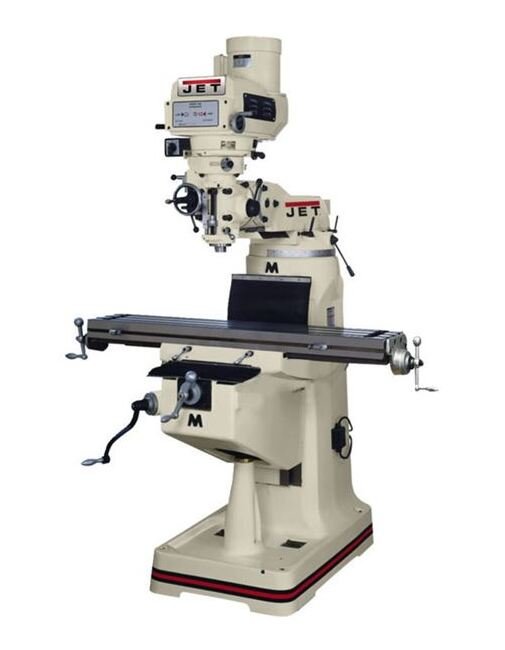

JET JTM-4VS Milling Machine with ACU-RITE 200S DRO and X-Axis Power Feed
JET JTM-4VS Milling Machine with ACU-RITE 200S DRO and X-Axis Power Feed
SKU:MIL-028967
Experience precision and reliability with the JET JTM-4VS Milling Machine, featuring ACU-RITE 200S DRO and X-Axis Power Feed.
Regular price
$15,599.99
Regular price
Sale price
$15,599.99
Unit price
per
Initiate Order
JET JTM-4VS Milling Machine with ACU-RITE 200S DRO and X-Axis Power Feed
$15,599.99
Quantity: 1
Claim Your Seller Account
JET JTM-4VS Milling Machine with ACU-RITE 200S DRO and X-Axis Power Feed
$15,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET JTM-4VS Milling Machine is meticulously constructed using the certified Meehanite® casting process, ensuring exceptional durability and precision. Equipped with a powerful 3 hp spindle motor and a versatile ACU-RITE 200S digital readout, this machine offers reliable and accurate milling operations. With features like a chrome-plated motor shaft, heavy-duty spindle brake, and precision-hardened ways, this mill guarantees high-quality cuts with ease. Backed by a two-year warranty, this machine is a top choice for industrial applications that demand efficiency and performance.
Product Specifications
Features Features
Certified Meehanite® CastingsPrecision bored and honed milling headLarge diameter quill is chromedHigh precision Class 7 spindle bearingsChrome plated motor shaft with lower bearing supportSpindle head is internally cooledHeavy duty splined motor driveOne piece quill pinion and shaftThree stage power downfeed with automatic stopHeavy duty spindle brakeLocks on all movable surfacesPrecision hardened and ground ways and tableAdjustable gibs throughoutInternal coolant tank built into casting base for use with coolant system (coolant pump not included)Tolerance test sheet includedOne shot lubrication systemWay coversDraw barTool box with tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
ACU-RITE 200S
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
85 in
Technical Specs Item Number
690107
Technical Specs Length
66 in
Technical Specs Main Motor
3 hp
Technical Specs Maximum Distance Spindle To Column
19 in
Technical Specs Maximum Distance To Table
17 1/2 in
Technical Specs Minimum Distance From Spindle Axis Top Column
4-1/2 in
Technical Specs Model
JTM-4VS
Technical Specs Powerfeed
X-Axis
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
13-3/8 in
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
70 to 3800 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Table Longitudinal Travel With Powerfeed
28 3/4 in
Technical Specs Table Size
9 x 49 in
Technical Specs Travel Of Knee
14-1/2 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
230 to 460 V
Technical Specs Weight
2420 lb
Technical Specs Width
63 in
Technical Specs Working Table Cross Travel
12 in
Technical Specs Working Table Longitudinal Travel
34 in
Technical Specs Work Table Weight Capacity
660 lb
