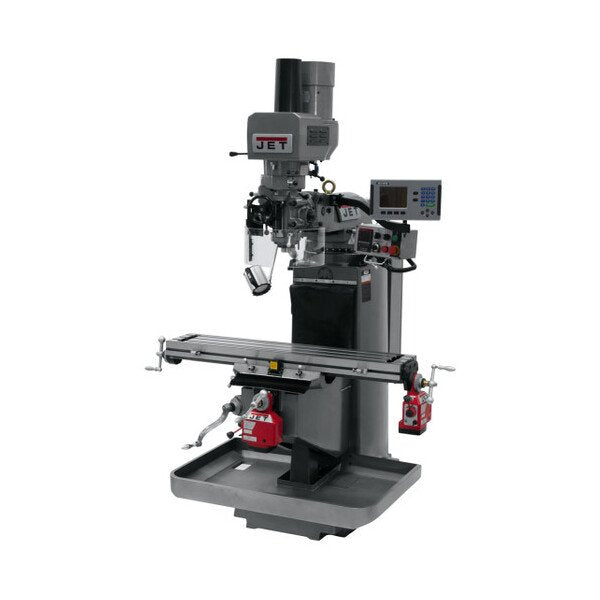

JET Milling Machine JTM-949EVS with 3-Axis DRO, Power Feed, Air Powered Draw Bar
JET Milling Machine JTM-949EVS with 3-Axis DRO, Power Feed, Air Powered Draw Bar
SKU:MIL-c54a83
Experience precision and power with the JET JTM-949EVS Milling Machine, featuring 3-Axis DRO and Power Feed.
Regular price
$18,499.99
Regular price
Sale price
$18,499.99
Unit price
per
Initiate Order
JET Milling Machine JTM-949EVS with 3-Axis DRO, Power Feed, Air Powered Draw Bar
$18,499.99
Quantity: 1
Claim Your Seller Account
JET Milling Machine JTM-949EVS with 3-Axis DRO, Power Feed, Air Powered Draw Bar
$18,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET JTM-949EVS Milling Machine offers exceptional precision and versatility for both consumer and institutional buyers. With a sturdy design and powerful 3 hp spindle motor, this machine ensures reliable performance. Equipped with an ACU-RITE 203 DRO, x and Y-Axis Power Feed, and Air Powered Draw Bar, it enhances operational efficiency and accuracy. Certified to meet CSA Group safety guidelines, featuring Meehanite® Castings and Class 7 bearings for robustness in heavy cutting operations, this machine is a reliable choice for industrial applications.
Product Specifications
Features Features

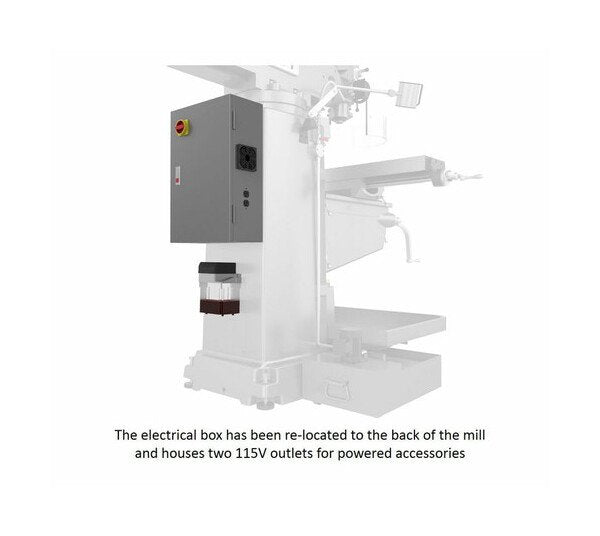

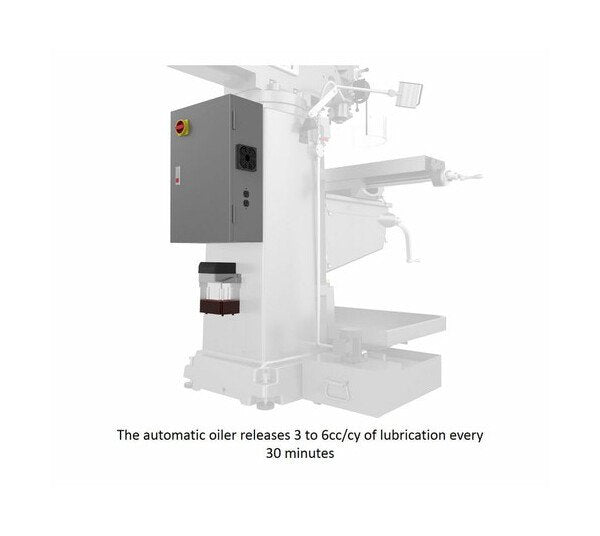

Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutesClass 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applicationsCSA/CUS CertifiedDual locks on all moveable surfacesJET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retentionLocks on all moveable surfacesNew! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retentionSpindle head is internally cooledSpindle head is internally cooled extending bearing, belt and motor lifeSwing away control box houses an e-stop and puts all controls at the operators fingertipsSwing away safety shieldTable and ways are hardened up to 54 HRC and precision ground for greater accuracyThe electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessoriesThe innovative design of the machine base provides an easier solution to level the machine without raising it up off the floorThe X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
Standard Equipment Standard Equipment
Spindle Safety GuardHalogen Machine LampDual locks on all moveable surfacesChip panWay coversDraw barTool box with tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Column Width
18 in
Technical Specs Digital Readout
3-Axis (Knee) ACU-RITE 203
Technical Specs Durability
Certified Meehanite® CastingsClass 7 bearings support the spindle for maximum ridgity in heavy cutting applicationsPrecision bored and honed milling headSpindle head is internally cooled extending bearing, belt and motor
Technical Specs Ease Of Use
Automatic Lubrication every 30 minutes with a flow of 3-6cc reduces maintenanceInverter Drive System and emergency stop located on a swing away control arm moves all major functions within the operators reachJET exclusive new cas
Technical Specs Height
86 in
Technical Specs Inverter Type
Delta, B
Technical Specs Length
66 in
Technical Specs Maximum Distance Spindle To Column
18-1/8 in
Technical Specs Maximum Distance Spindle To Table
20 3/4 in
Technical Specs Model
JTM-949EVS/230
Technical Specs Powerfeed
X And Y Axis
Technical Specs Power Draw Bar
Pneumatic
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
15-1/4 in
Technical Specs Saddle Width
11 1/2 in
Technical Specs Safety

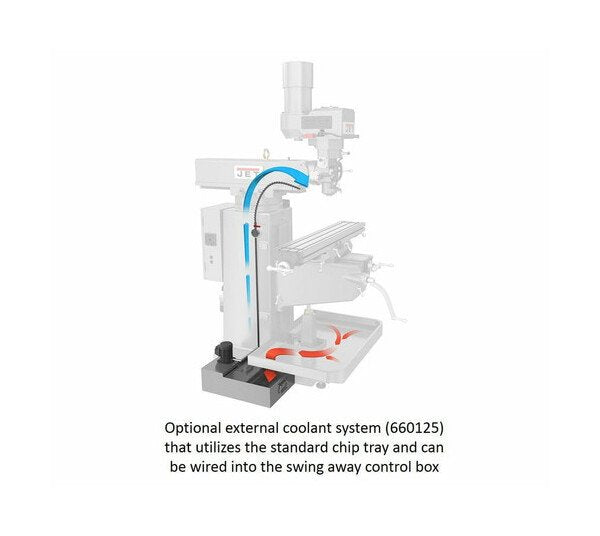

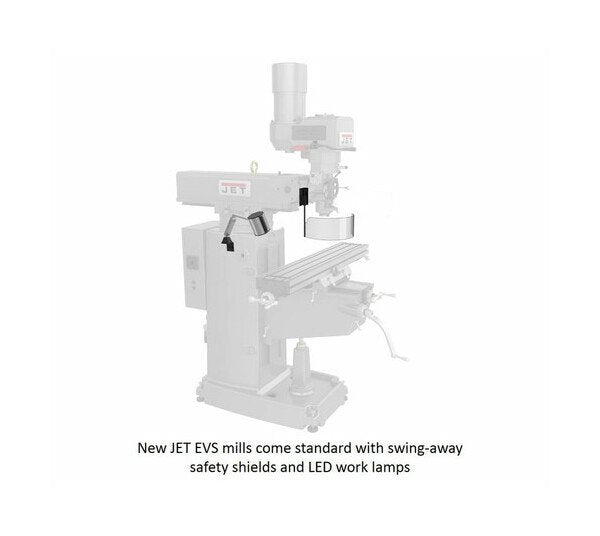

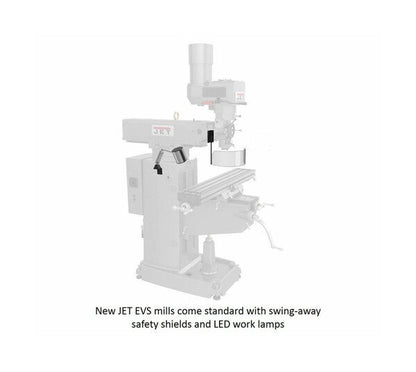

For added safety, the JTM-949EVS follows strict guidelines and electrical requirements to be certified by CSA GroupSwing away spindle guardL.E.D. work lampInternal coolant tank built into casting base
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Style
EVS (Electronic Variable Speed)
Technical Specs Table Longitudinal Travel With Powerfeed
30 3/4 in
Technical Specs Table Size
9 x 49 in
Technical Specs Travel Of Knee
15 3/4 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs Voltage
230 V
Technical Specs Weight
2420 lb
Technical Specs Width
63 in
Technical Specs Working Table Cross Travel
12 5/8 in
Technical Specs Working Table Longitudinal Travel
36 in
Technical Specs Work Table Weight Capacity
720 lb
