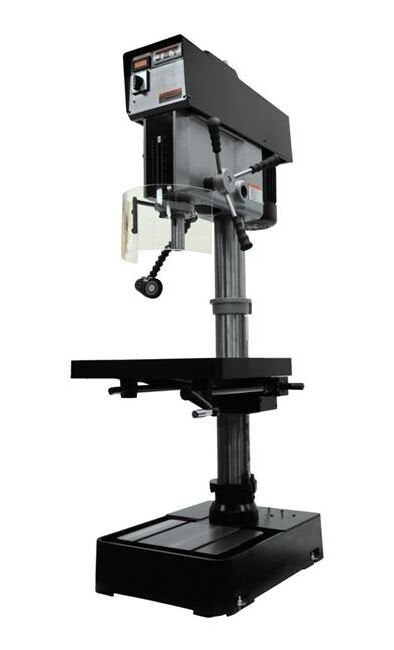

JET Precision Variable Speed Drill Press JDP-20VS-1
JET Precision Variable Speed Drill Press JDP-20VS-1
SKU:DRI-cee498
Experience precision and control with the JET JDP-20VS-1. CSA/CUS certified, LED lamp, variable speeds for accurate drilling.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
JET Precision Variable Speed Drill Press JDP-20VS-1
$2,899.99
Quantity: 1
Claim Your Seller Account
JET Precision Variable Speed Drill Press JDP-20VS-1
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET Precision Variable Speed Drill Press JDP-20VS-1 offers unparalleled precision and control for both consumer and institutional users. With a solid steel column, heavy-duty cast iron base, and a massively constructed head, this drill press ensures accuracy and rigidity in every operation. Featuring a large precision ground T-slot production table, LED machine lamp, spindle safety guard, and variable spindle speeds ranging from 300 to 2,000 RPM, this drill press is designed to meet the highest standards of performance and safety. CSA/CUS certified and equipped with front-mounted LED spindle RPM readout, positive control depth stop, and 360° table rotation, this drill press combines innovation with reliability.
Product Specifications
Features Features
Steel ColumnHeavy-Duty Casted Iron DesignHead is massively constructed for more accuracy and rigidityLarge Precision Ground T-slot Production Table for easy set upsMassive 3" Quill DiameterCSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certifiedLED Machine LampSpindle GuardVariable Spindle Speeds from 300 - 2,000 RPM'sFront Mounted LED Spindle RPM ReadoutFront Mounted Positive Control Depth StopTable rotates 360° around the columnMachine T-Slotted baseLarge Hand Grips designed with the Users comfort in mindSTANDARD EQUIPEMENTSpindle Safety GuardLED Machine Lamp
Technical Specs Base Dimensions
27 x 19 in
Technical Specs Base Slots Number And Size
2 in | 5/8 in
Technical Specs Brands
JET
Technical Specs Column Diameter Through Head E
4-1/2 in
Technical Specs Distance Spindle To Table Max
30-1/4 in
Technical Specs Drilling Capacity Cast Iron
1-1/4 in
Technical Specs Drilling Capacity Mild Steel
1 in
Technical Specs Drills To Center Of Circle
20 in
Technical Specs Maximum Distance From Column To Spindle
10-7/16 in
Technical Specs Motor Horse Power Hp
2 hp
Technical Specs Motor Voltage
115 V | 230 V
Technical Specs Number Of Phase
1
Technical Specs Number Of Spindle Speeds
Variable
Technical Specs Overall Height
79.52 in
Technical Specs Overall Length
38.18 in
Technical Specs Overall Width
27.16 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
300 to 2000 rpm
Technical Specs Spindle Distance To Base
44-1/2 in
Technical Specs Spindle Taper
MT3
Technical Specs Spindle Travel
6 in
Technical Specs Style Type
Variable Speed
Technical Specs Table Length
22 in
Technical Specs Table Travel
20 in
Technical Specs Table Width
18-3/4 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs T Slot Centers
7-7/16 in
Technical Specs Weight
780 lb
Technical Specs Work Table Weight Capacity
154 lb
