JET Professional Belt Drive Mill/Drill Machine
JET Professional Belt Drive Mill/Drill Machine
SKU:DRI-2aa927
Experience precision and versatility with the JET Professional Mill/Drill Machine for your machining needs.
Regular price
$3,899.99
Regular price
Sale price
$3,899.99
Unit price
per
Initiate Order
JET Professional Belt Drive Mill/Drill Machine
$3,899.99
Quantity: 1
Claim Your Seller Account
JET Professional Belt Drive Mill/Drill Machine
$3,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

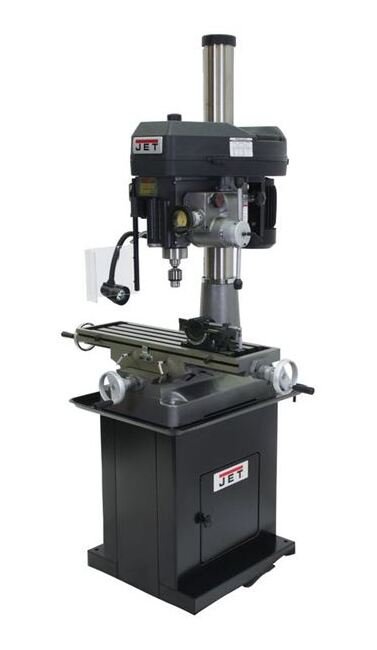

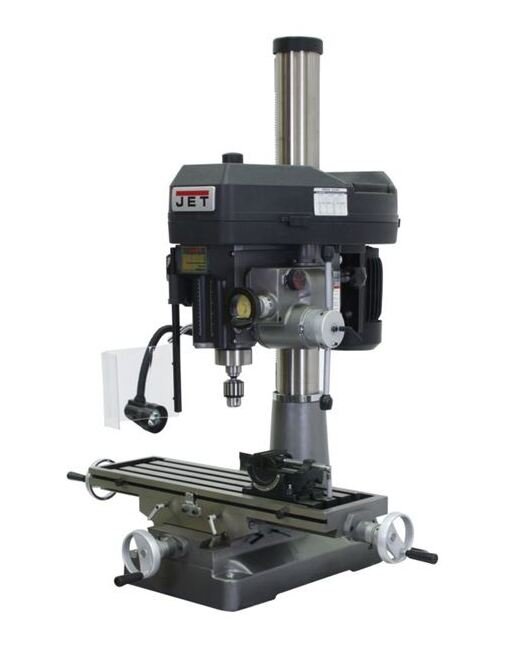

The JET Professional Belt Drive Mill/Drill Machine is a versatile solution for precision drilling and light machining tasks. Featuring a one-piece cast iron column for enhanced stability, this machine offers a range of advanced features including a quick slide latch belt cover for easy spindle speed adjustments, an extra-large worktable for increased support, and a UL Listed motor for added safety. With a powerful 2 HP motor and a variety of spindle speeds, this machine combines efficiency with durability. Ideal for workshops and industrial settings seeking space-saving versatility and dependable performance.
Product Specifications
Features Features
One-piece cast iron column for added supportBelt cover with quick slide latch allows faster belt adjustment to change spindle speedsBase taper allows for easier clean upDrill Press angle viseUL Listed motorExtra large worktableEasy to read external depth gauge360° head swivelWork lamp1/2" drill chuck, chuck arborDraw barDrill Chuck GuardAdjustable Carbide facemill
Technical Specs Base Dimensions
15-3/4 x 23-3/4 in
Technical Specs Brands
JET
Technical Specs Column Diameter
3 in
Technical Specs Distance Spindle To Table Max
28 in
Technical Specs Drilling Capacity
1-1/4 in
Technical Specs End Mill Capacity
3/4 in
Technical Specs Face Mill Capacity
3/4 in
Technical Specs Motor Horse Power Hp
2 hp
Technical Specs Motor Voltage
230 V
Technical Specs Number Of Phase
1
Technical Specs Number Of Spindle Speeds
12
Technical Specs Overall Height
51 in
Technical Specs Overall Length
47 in
Technical Specs Overall Width
40 in
Technical Specs Quill Diameter
4-1/4 in
Technical Specs Quill Down Feed Rates
0.001 | 0.0047 | 0.007
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
150 to 3,000 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Spindle Travel Auto
4-1/2 in
Technical Specs Swing
15-7/8 in
Technical Specs Table Length
9-1/2 in
Technical Specs Table Longitudinal Travel
20-1/2 in
Technical Specs Table Width
31-3/4 in
Technical Specs T Slots Number And Size
4 in | 5/8 in
Technical Specs T Slot Centers
1-13/16 in
Technical Specs Weight
700 lb
Technical Specs Work Table Weight Capacity
400 lb
