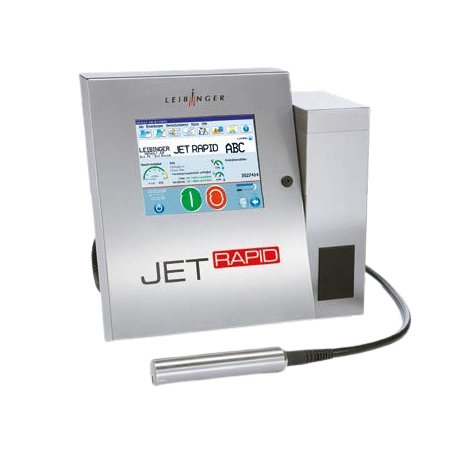

JET Rapid Printhead - 50 Micrometer Nozzle Size
JET Rapid Printhead - 50 Micrometer Nozzle Size
SKU:JET-f22b32
Experience high-speed precision printing with the JET Rapid Printhead - 50 µm nozzle size. Ideal for fast, quality prints at up to 800 m/min.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
JET Rapid Printhead - 50 Micrometer Nozzle Size
$2,999.99
Quantity: 1
Claim Your Seller Account
JET Rapid Printhead - 50 Micrometer Nozzle Size
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET Rapid Printhead with a 50 µm nozzle size offers high-speed printing capabilities of up to 800 m/min and exceptional print quality at fast speeds. Featuring a versatile print mode, tapered printhead cover for precise positioning, and compatibility with a select range of inks, this printhead ensures reliable performance for a variety of printing applications.
Product Specifications
Accessories Accessories
Product detector, incremental encoder, printer stand, printhead brackets, alarm lamps, etc.Software for remote control and multi-head control
Data Managementsecurity Data Managementsecurity
Data buffer in case of power failureFile managerJob management with saved machine parametersData logging, production logUpload and download of jobs and graphics from USB stick or over networkSelect jobs (1023 jobs can be selected via the PLC or scanner)
Handlingdata Input Handlingdata Input
10.4" color TFT touchscreen display (SVGA)Create and edit jobs during productionUser-defined button for direct accessMenu languages: European languages, Vietnamese, Arabic, Chinese, Thai, Korean, Cyrillic, Persian, etc.Integrated font and graphics editorIllustrated operator instructionsAlternative control using the data interface (serial, Ethernet)Country-specific on-screen key padOperation optionally using mouse or key padComprehensive self-diagnosis and status display with easy-to-understand text, help function, printer status displayStorage of numerous jobs and graphicsPassword function and service menuWindows-based interface, WYSIWYG, real-time display updatesRemote control via VNC
Inks Inks
Which inks are available depends on the printer type and the selected optionsInk consumption: up to 160 million characters/l (matrix 5 x 5 / nozzle 50 μm)Solvent consumption: Can be reduced to less than 1.2 ml/hour using EcoSolv (depending on nozzle size, solvent base and ambient temperature)Various colored inks and soft pigmented inksFast-drying solvent inks (<1 sec)
Interfaces Inputsoutputs Interfaces Inputsoutputs
Product detector input PNP/NPN 24 V, FIFO bufferedIncremental encoder input (TTL 5 V, HTL 24 V, RS422 5 V)9 digital inputs and 8 digital outputs. Freely selectablePrinter alarm, low fluid, print ready, print finished, external job selection, etc.Serial port RS232 up to 115,200 baudUSB portEthernet (industry standard M12D), script protocolSensor for product monitoring and speed measurementOptional: Special interface for connecting multiple printers
Leibinger Hydraulic System Leibinger Hydraulic System
Low maintenance diaphragm pumps with optimized on-timeFully automatic viscosity and pressure controlThermally isolated hydraulicsNo external compressed air supply necessaryAutomatic interval functionEcoSolv - solvent recycling system (optional)
Power Ratings And Ambient Conditions Frequency
50 to 60 Hz
Power Ratings And Ambient Conditions Maximum Non Condensing Rela
90 %
Power Ratings And Ambient Conditions Temperature Range
5 to 45 ºC
Power Ratings And Ambient Conditions Power
20 W
Power Ratings And Ambient Conditions Voltage
100 to 240 V
Printheads Printheads Type
Supplied with 2 printhead covers Flexible, break-resistant umbilical, length: 3 mStainless steel cabinetFully automatic "SEALTRONIC" nozzle and gutter sealFully automatic drop charging, drop break offAny installation location, even for overhead applicationsSafety switch for locking the printheadExternal head ventilationOptions: umbilical at 45º to 90º angle, various printhead versionsAutomatic inkjet monitoring
Print Outputfunctions Print Outputfunctions
Character height 1.2 to 16 mm, depending on nozzle size and head typeCountry and industry-specific fonts: Arabic, Cyrillic, Chinese, Persian, etc. Fonts 3x7 to 7x5, vertical printing (tower printing), line mode, single-line printingFonts and graphics can be positioned and combined in print jobs as requiredProportional function for all fontsAdjustable font height and font width Only barcodes up to a print height of 7 dotsTime, auto-adjustable date, auto-adjustable expiration date, weekdays, calendar weeks, Julian calendar, shift identificationReplacements: all date, time and counter functions can be set using user-programmed replacements32 individually programmable counters, consecutive numbering, production counter, meter marking with "Meter Go" functionUser-programmable graphics/logos can be created in the integrated editorMultistage contrast and bold function, print repetition, print delay, backward print, rotation/mirroring of text, inverse, reverse and alternating prints (object-dependent)Dynamic backward printing for traversing linesProgrammable batch production and interlinking of multiple jobs"External text" function from scanner or interfaceProcessing of variable data from external files on USB stick or interfaceFunction to stop printing when preselected amount has been reachedProduct jam detection, product position monitoringAutostart functionPrompt function (quick access)Solvent saving modeSelf-test function
Storage Tank Storage Tank
Capacity of non-pressurized ink and solvent storage tank: 1.3 l, can be topped up during productionFill level display with fully automated monitoringDisplay for pending printouts
Technical Specs Available Print Modes
Line Mode3 x 7 tower3 x 7 tower5 x 55 x 5 small5 x 5 speed5 x 5 speed small7 x 57 x 5 speed
Technical Specs Characters Per Inch Cpi
8 cpi at 800 m/min
Technical Specs Character Height
1.2 to 16 mm
Technical Specs Compressed Air Required
Yes. 2 l/min

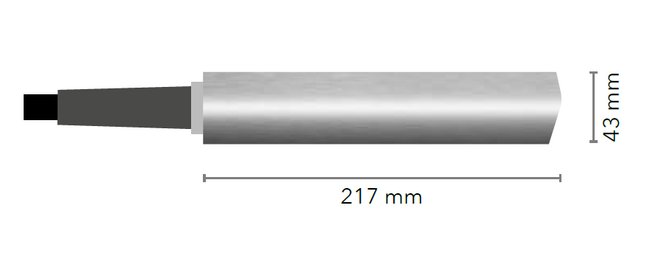

Technical Specs Diameter
43 mm
Technical Specs Length
217 mm
Technical Specs Maximum Print Speed
Up to 800 m/min
Technical Specs Nozzle Size
50 µm
Technical Specs Oscillator Frequency
128 kHz
Technical Specs Printable Lines
Single-Line
Technical Specs Print Mode
5 x 5 speed
Technical Specs Type
Speed Plus Option
Technical Specs Umbilical Length
3 m
Weights And Protection Classes Cabinet Weight
20.5 kg
Weights And Protection Classes Optional Protection Class
Ingress Protection (IP65)
Weights And Protection Classes Printhead Weight
1.5 kg
Weights And Protection Classes Protection Class
Ingress Protection (IP54)
