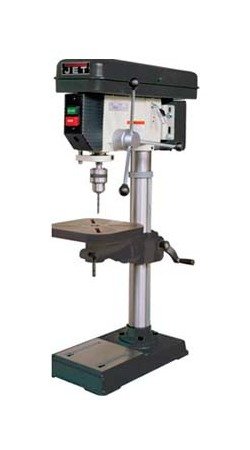

The JET Step Pulley Drill Press in 15 and 20 inches sets the standard for accuracy, stability, and versatility. With a broad range of spindle speeds for various applications, this JET Drill Press features a solid base, enclosed spindle assembly with precision ball bearings, large quill stroke, and a sturdy cast iron head. Its advanced design ensures accurate depth control, a tilt-adjustable table, and a telescoping safety spindle guard, making it ideal for deep drilling tasks. Backed by an industry-leading Two-Year Warranty, this JET Drill Press is a reliable choice for demanding workshop environments.
Product Specifications
Features Features
Constructed to provide a solid base for drillingThe enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracyCast Iron headLarge ground steel column for maximum head and table supportLarge quill allows greater accuracy3-1/8" stroke for deep hole applicationsAccurate depth stop for precise hole depthsTable tilts 45°5/8" drill chuck and arborTelescoping safety spindle guard
Technical Specs Base Dimensions
11 x 19-1/2 in
Technical Specs Base Work Table
7 x 7-1/2 in
Technical Specs Brands
JET
Technical Specs Column Diameter
2-7/8 in
Technical Specs Distance From Column To Spindle
7-1/2 in
Technical Specs Distance Spindle To Table Max
24 in
Technical Specs Drilling Capacity Cast Iron
5/8 in
Technical Specs Drilling Capacity Mild Steel
1/2 in
Technical Specs Drills To Center Of Circle
15 in
Technical Specs Motor Horse Power Hp
3/4 hp
Technical Specs Motor Voltage
115 V | 230 V
Technical Specs Number Of Spindle Speeds
16
Technical Specs Overall Height
63 in
Technical Specs Overall Length
31 in
Technical Specs Overall Width
13 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
1,440 rpm | 1,630 rpm | 1,820 rpm | 2,380 rpm | 2,540 rpm | 200 rpm | 290 rpm | 3,630 rpm | 350 rpm | 430 rpm | 500 rpm | 580 rpm | 640 rpm | 720 rpm | 800 rpm | 870 rpm
Technical Specs Spindle Distance To Base
48 in
Technical Specs Spindle Taper
MT2
Technical Specs Spindle Travel
3-3/8 in
Technical Specs Style Type
Belt Drive
Technical Specs Table Length
11-1/2 in
Technical Specs Table Travel
24 in
Technical Specs Table Width
11-1/2 in
Technical Specs Weight
167 lb
Technical Specs Work Table Weight Capacity
44 lb
