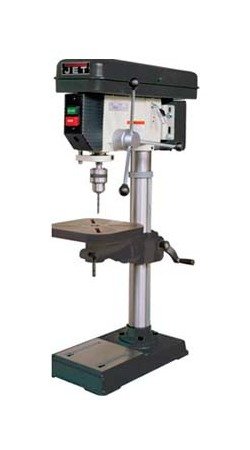

The JET Step Pulley Drill Press comes in 15" and 20" variants, designed to meet the rigorous drilling needs of industrial settings. With a sturdy cast iron head, large quill for accuracy, and a powerful 3/4 hp motor, this drill press offers exceptional durability and performance. Its table tilts 45°, and the large ground steel column provides maximum support. Meeting Federal/DoD procurement standards and FAR compliance factors, this drill press is a reliable choice for government and institutional buyers.
Product Specifications
Features Features
Cast iron headLarge quill allows greater accuracyHead casting features a permanently lubricated ball bearing spindle assembly, using four Heavy-Duty ball bearings in an enclosed quill for longer life.Table tilts 45°Large ground steel column diameter for maximum head and table supportHinged metal belt and pulley coverAccurate depth stop displays inch/mm and has a quick set bolt fast5/8" Drill chuck and arbor
Technical Specs Base Dimensions
11 x 19-1/2 in
Technical Specs Brands
JET
Technical Specs Column Diameter
2-7/8 in
Technical Specs Distance Base Spindle
48-3/4 in
Technical Specs Drilling Capacity Cast Iron
5/8 in
Technical Specs Drilling Capacity Mild Steel
1/2 in
Technical Specs Motor Horse Power Hp
3/4 hp
Technical Specs Motor Voltage
115 V
Technical Specs Net Weight
167 lb
Technical Specs Number Of Phase
1
Technical Specs Overall Height
63-1/2 in
Technical Specs Overall Length
26 in
Technical Specs Overall Width
13-3/8 in
Technical Specs Quill Diameter
1-7/8 in
Technical Specs Quill Travel
3-3/8 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
1550 rpm | 1620 rpm | 1900 rpm | 250 rpm | 2620 rpm | 3100 rpm | 340 rpm | 390 rpm | 510 rpm | 600 rpm | 650 rpm | 990 rpm
Technical Specs Spindle Taper
MT2
Technical Specs Table Size
10 x 10 in
