JET Variable Speed Drill Press JDP-20VS-3
JET Variable Speed Drill Press JDP-20VS-3
SKU:DRI-1bf1cb
Experience precision and control with the JET Variable Speed Drill Press JDP-20VS-3. CSA/CUS certified, LED lamp, and variable spindle speeds for safety and efficiency.
Regular price
$3,599.99
Regular price
Sale price
$3,599.99
Unit price
per
Initiate Order
JET Variable Speed Drill Press JDP-20VS-3
$3,599.99
Quantity: 1
Claim Your Seller Account
JET Variable Speed Drill Press JDP-20VS-3
$3,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

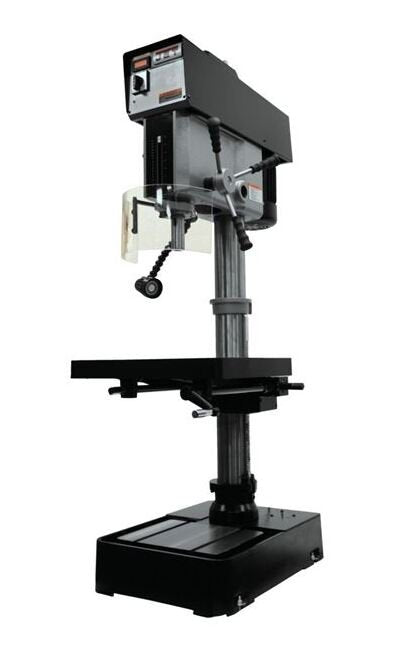

The JET JDP-20VS-3 Variable Speed Drill Press offers precision and control with its solid construction. This drill press features a steel column, heavy-duty cast iron base, and a massively constructed head for enhanced accuracy and rigidity. With variable speed spindles and a large precision ground T-slot production table, this drill press ensures easy setups and precise drilling. CSA/CUS certified, LED machine lamp, spindle guard, and front-mounted spindle RPM readout enhance safety and efficiency.
Product Specifications
Features Features
Steel ColumnHeavy-Duty Casted Iron DesignHead is massively constructed for more accuracy and rigidityLarge Precision Ground T-slot Production Table for easy set upsMassive 3" Quill DiameterCSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certifiedLED Machine LampSpindle GuardVariable Spindle Speeds from 65 - 2,000 RPM'sFront Mounted LED Spindle RPM ReadoutFront Mounted Positive Control Depth StopTable rotates 360° around the columnMachine T-Slotted baseLarge Hand Grips designed with the Users comfort in mindSTANDARD EQUIPEMENTSpindle Safety GuardLED Machine Lamp
Technical Specs Base Dimensions
27 x 19 in
Technical Specs Base Slots Number And Size
2 in | 5/8 in
Technical Specs Brands
JET
Technical Specs Column Diameter Through Head E
4-1/2 in
Technical Specs Distance Spindle To Table Max
30-1/4 in
Technical Specs Drilling Capacity Cast Iron
1-1/2 in
Technical Specs Drilling Capacity Mild Steel
1-3/8 in
Technical Specs Drills To Center Of Circle
20 in
Technical Specs Maximum Distance From Column To Spindle
10-7/16 in
Technical Specs Model
JDP-20VS-3
Technical Specs Motor Horse Power Hp
2 hp
Technical Specs Motor Voltage
230 V | 460 V
Technical Specs Number Of Phase
3
Technical Specs Number Of Spindle Speeds
Variable
Technical Specs Overall Height
79.52 in
Technical Specs Overall Length
38.18 in
Technical Specs Overall Width
27.16 in
Technical Specs Prewired Voltage
230 V
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
300 to 2000 rpm
Technical Specs Spindle Distance To Base
44-1/2 in
Technical Specs Spindle Taper
MT3
Technical Specs Spindle Travel
6 in
Technical Specs Style Type
Variable Speed
Technical Specs Table Length
22 in
Technical Specs Table Travel
20 in
Technical Specs Table Width
18-3/4 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs T Slot Centers
7-7/16 in
Technical Specs Weight
780 lb
Technical Specs Work Table Weight Capacity
154 lb
