Jilson Inch Plastic Radial Bearings
Jilson Inch Plastic Radial Bearings
SKU:BEA-c3b641
Upgrade with Jilson Inch Plastic Bearings - Non-magnetic, rust-resistant, high load capacity
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Jilson Inch Plastic Radial Bearings
$59.99
Quantity: 1
Claim Your Seller Account
Jilson Inch Plastic Radial Bearings
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

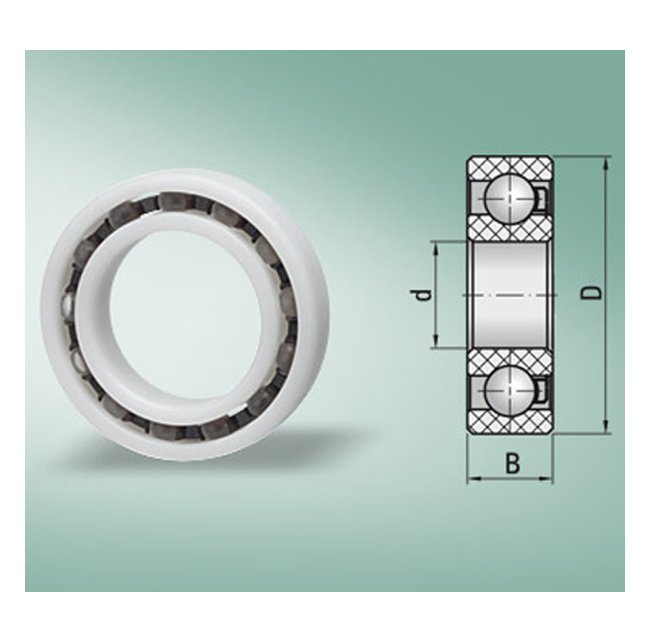

Enhance your equipment with Jilson Inch Plastic Radial Bearings, meticulously crafted from top-grade materials like Acetal, Nylon, and Ceramic. Designed for non-magnetic, rust-resistant performance, these bearings excel in hospital and corrosive environments. With a single row of Glass ball bearings and a solid PBT housing, Jilson bearings offer a static load capacity of 40.8 lbs and a dynamic load capacity of 69 lbs. Max RPM in air reaches 1069, ensuring reliable operation in diverse applications.
Product Specifications
Specifications Balls
Glass
SPECIFICATIONS CAGE
PP
Specifications Inside Diameter
5/8
Specifications Inside Diameter Range
5/8 in
Specifications Load Capacity Dynamic Lbs
69
Specifications Load Capacity Dynamic Lbs Range
61-80
Specifications Load Capacity Static Lbs
40.8
Specifications Load Capacity Static Lbs Range
41-60
Specifications Max Rpm In Air
1069
Specifications Notes
Jilson plastic ball bearings are well suited for other applications like wash down areas, where equipment is frequently wet and prone to rusting with conventional bearings. Corrosive environments, where bearings will be subject to chemical abrasiveness, a | We use top grade materials such as: Acetal, Nylon, Polypropylene, Polyethylene, KYNAR, PETP, PBT, PEEK, Ceramic and Stainless Steel in different combinations to meet specific needs. Jilsonâs housings for plastic bearings are made of high-grade, solid PBT
Specifications Outside Diameter
1-3/8
Specifications Outside Diameter Range
1-3/8 in
Specifications Races
PP
Specifications Rows
Single
Specifications Series
R10B
Specifications Width
7/16
