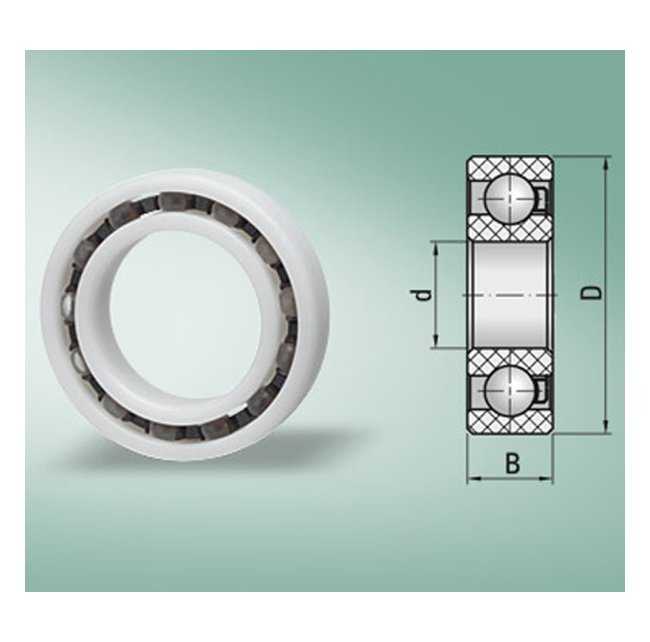

Jilson Inch Radial Bearings
Jilson Inch Radial Bearings
SKU:BEA-679087
High-quality Jilson plastic ball bearings for corrosive & wet environments. Non-magnetic with high load capacities & dynamic performance. Perfect for diverse applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Jilson Inch Radial Bearings
$39.99
Quantity: 1
Claim Your Seller Account
Jilson Inch Radial Bearings
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Jilson offers top-quality plastic ball bearings for diverse applications. These non-magnetic bearings, utilizing materials like Acetal and Stainless Steel, provide exceptional durability in corrosive and wet environments. With a single-row design and Acetal races, they offer high load capacities, dynamic performance, and a smooth Glass cage for reliable operation.
Product Specifications
Specifications Balls
SS
SPECIFICATIONS CAGE
Glass
Specifications Inside Diameter
5/8
Specifications Inside Diameter Range
5/8 in
Specifications Load Capacity Dynamic Lbs
69
Specifications Load Capacity Dynamic Lbs Range
61-80
Specifications Load Capacity Static Lbs
48
Specifications Load Capacity Static Lbs Range
41-60
Specifications Max Rpm In Air
1069
Specifications Notes
Jilson plastic ball bearings are well suited for other applications like wash down areas, where equipment is frequently wet and prone to rusting with conventional bearings. Corrosive environments, where bearings will be subject to chemical abrasiveness, a | We use top grade materials such as: Acetal, Nylon, Polypropylene, Polyethylene, KYNAR, PETP, PBT, PEEK, Ceramic and Stainless Steel in different combinations to meet specific needs. Jilsonâs housings for plastic bearings are made of high-grade, solid PBT
Specifications Outside Diameter
1-3/8
Specifications Outside Diameter Range
1-3/8 in
Specifications Races
Acetal
Specifications Rows
Single
Specifications Series
R10
Specifications Width
9/32
