Jilson Plastic Radial Bearings - Inch
Jilson Plastic Radial Bearings - Inch
SKU:BEA-46c974
Top-grade Jilson Plastic Radial Bearings for non-magnetic, corrosion-resistant applications with high load capacity and durable design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Jilson Plastic Radial Bearings - Inch
$49.99
Quantity: 1
Claim Your Seller Account
Jilson Plastic Radial Bearings - Inch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

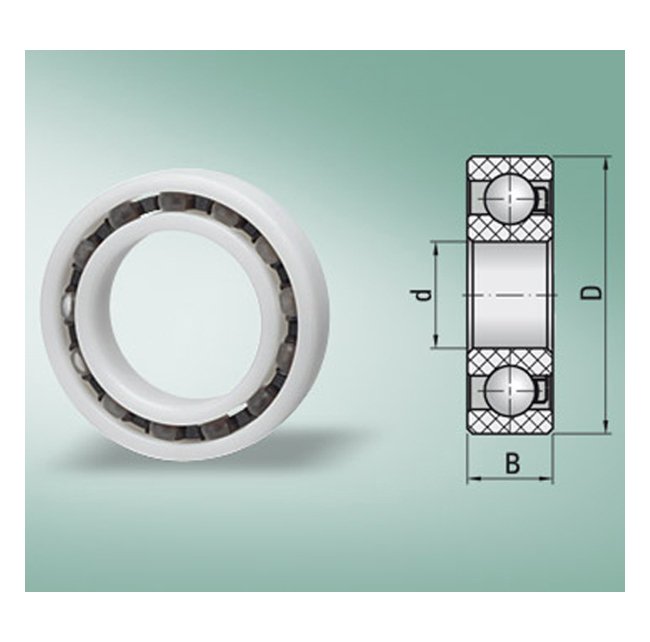

Jilson Plastic Radial Bearings offer top-grade materials like Acetal, Nylon, and Stainless Steel, ensuring non-magnetic, corrosion-resistant, high-load capacity performance. Ideal for hospital, wash down, and corrosive environments. With a load capacity of up to 26lbs, dynamic/10.2lbs static, and a max RPM of 2352, these bearings are perfect for critical applications. The single row design with Glass balls and PP races & cage ensures durability and performance.
Product Specifications
Specifications Balls
Glass
SPECIFICATIONS CAGE
PP
Specifications Inside Diameter
1/4
Specifications Inside Diameter Range
1/4 in
Specifications Load Capacity Dynamic Lbs
26
Specifications Load Capacity Dynamic Lbs Range
21-40
Specifications Load Capacity Static Lbs
10.2
Specifications Load Capacity Static Lbs Range
0-20
Specifications Max Rpm In Air
2352
Specifications Notes
Jilson plastic ball bearings are well suited for other applications like wash down areas, where equipment is frequently wet and prone to rusting with conventional bearings. Corrosive environments, where bearings will be subject to chemical abrasiveness, a | We use top grade materials such as: Acetal, Nylon, Polypropylene, Polyethylene, KYNAR, PETP, PBT, PEEK, Ceramic and Stainless Steel in different combinations to meet specific needs. Jilsonâs housings for plastic bearings are made of high-grade, solid PBT
Specifications Outside Diameter
3/4
Specifications Outside Diameter Range
3/4 in
Specifications Races
PP
Specifications Rows
Single
Specifications Series
R04B
Specifications Width
9/32
