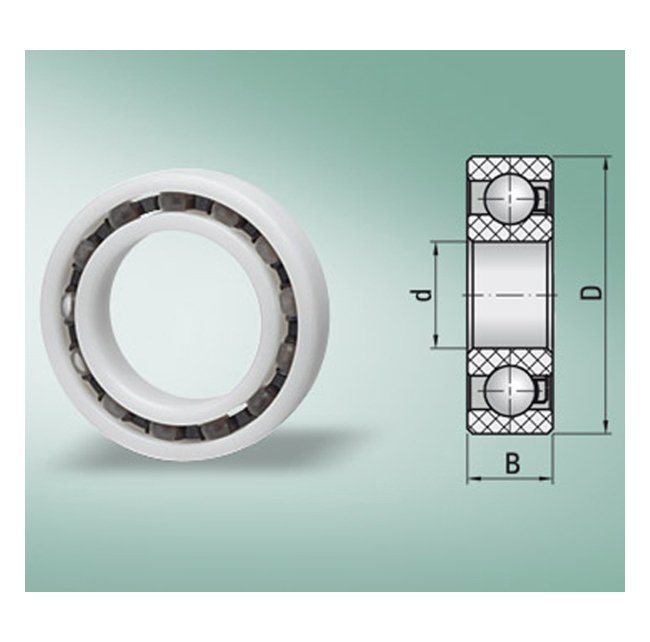

Jilson R04B Plastic Radial Bearings - Inch
Jilson R04B Plastic Radial Bearings - Inch
SKU:BEA-cf205a
High-grade Jilson plastic radial bearings with stainless steel balls, ideal for hospital environments and chemical abrasiveness.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Jilson R04B Plastic Radial Bearings - Inch
$35.99
Quantity: 1
Claim Your Seller Account
Jilson R04B Plastic Radial Bearings - Inch
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jilson R04B Plastic Radial Bearings are expertly engineered for durability and precision. These non-magnetic plastic ball bearings, with stainless steel balls, excel in hospital environments and corrosive settings. Constructed with top-grade materials like Acetal, Nylon, and Stainless Steel, they offer high load capacities and a max RPM of 2352, making them ideal for wash down areas and chemical abrasive applications. With single rows, PP races and cage, these bearings meet stringent quality standards for reliability.
Product Specifications
Specifications Balls
SS
SPECIFICATIONS CAGE
PP
Specifications Inside Diameter
1/4
Specifications Inside Diameter Range
1/4 in
Specifications Load Capacity Dynamic Lbs
26
Specifications Load Capacity Dynamic Lbs Range
21-40
Specifications Load Capacity Static Lbs
10.2
Specifications Load Capacity Static Lbs Range
0-20
Specifications Max Rpm In Air
2352
Specifications Notes
Jilson plastic ball bearings are well suited for other applications like wash down areas, where equipment is frequently wet and prone to rusting with conventional bearings. Corrosive environments, where bearings will be subject to chemical abrasiveness, a | We use top grade materials such as: Acetal, Nylon, Polypropylene, Polyethylene, KYNAR, PETP, PBT, PEEK, Ceramic and Stainless Steel in different combinations to meet specific needs. Jilsonâs housings for plastic bearings are made of high-grade, solid PBT
Specifications Outside Diameter
3/4
Specifications Outside Diameter Range
3/4 in
Specifications Races
PP
Specifications Rows
Single
Specifications Series
R04B
Specifications Width
9/32
