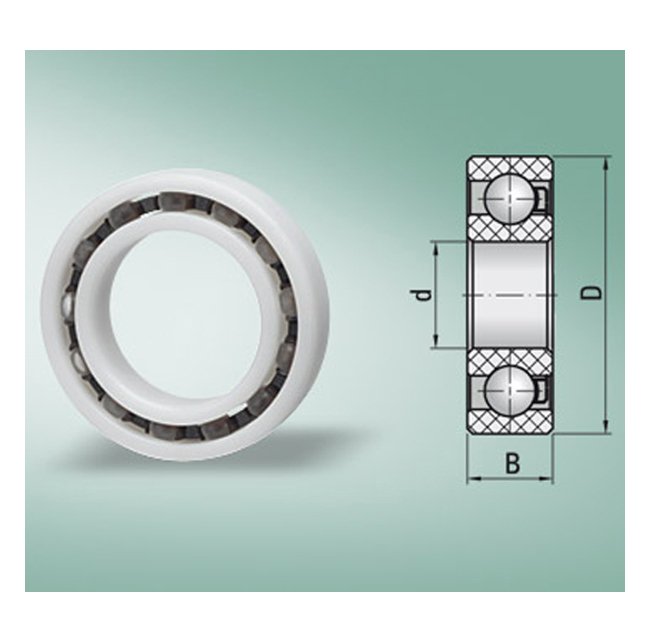

The Jilson Radial Ball Bearings are engineered to deliver exceptional performance in demanding environments. Featuring a 7/32" width, 1/4" inside diameter, and 3/4" outside diameter, these single-row bearings (Series R04A) are ideal for applications requiring non-magnetic, corrosion-resistant solutions. Crafted from top-grade materials like Acetal, Nylon, and Stainless Steel, with Glass cages and balls, these bearings offer a static load capacity of 12 lbs and a dynamic load capacity of 26 lbs. With a max RPM of 2352 in air, they are perfect for wash-down areas and corrosive environments, meeting the stringent quality standards set by industries such as healthcare and manufacturing.
Product Specifications
Specifications Balls
Glass
SPECIFICATIONS CAGE
Glass
Specifications Inside Diameter
1/4
Specifications Inside Diameter Range
1/4 in
Specifications Load Capacity Dynamic Lbs
26
Specifications Load Capacity Dynamic Lbs Range
21-40
Specifications Load Capacity Static Lbs
12
Specifications Load Capacity Static Lbs Range
0-20
Specifications Max Rpm In Air
2352
Specifications Notes
Jilson plastic ball bearings are well suited for other applications like wash down areas, where equipment is frequently wet and prone to rusting with conventional bearings. Corrosive environments, where bearings will be subject to chemical abrasiveness, a | We use top grade materials such as: Acetal, Nylon, Polypropylene, Polyethylene, KYNAR, PETP, PBT, PEEK, Ceramic and Stainless Steel in different combinations to meet specific needs. Jilsonâs housings for plastic bearings are made of high-grade, solid PBT
Specifications Outside Diameter
3/4
Specifications Outside Diameter Range
3/4 in
Specifications Races
Acetal
Specifications Rows
Single
Specifications Series
R04A
Specifications Width
7/32
