JIS 10K Series 52 Full Lug Valves
JIS 10K Series 52 Full Lug Valves
SKU:VAL-4fb89d
High-performance JIS 10K Series 52 Full Lug Valves for precise institutional applications. Sizes from 2" to 40", various materials for longevity.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
JIS 10K Series 52 Full Lug Valves
$899.99
Quantity: 1
Claim Your Seller Account
JIS 10K Series 52 Full Lug Valves
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JIS 10K Series 52 Full Lug Valves offer reliable performance meeting ISO 5752 standards. Available in sizes ranging from 2" to 40", with a variety of body and disc materials like Stainless Steel, Ductile Iron, and more. Stem materials include Stainless Steel for durability. Seats are crafted from NBR, EPDM, Viton, Teflon for versatile sealing. Suitable for institutional applications requiring precision and quality.

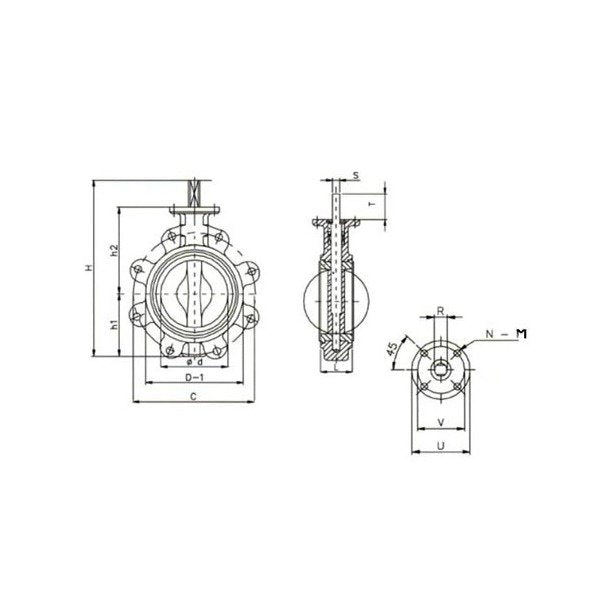

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications C
400 mm
Specifications D
298 mm
Specifications D 1
374 mm
Specifications H
538 mm
Specifications H1
249 mm
Specifications H2
295 mm
Specifications Hole Diameter
25 mm
Specifications L
78 mm
Specifications Number Of Holes
16
Specifications Size
300 - 12"
Specifications Standard
JIS
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
44 kg
