JIS 10K Series 52 Full Lug Valves - Bronze/Carbon/Stainless Steel
JIS 10K Series 52 Full Lug Valves - Bronze/Carbon/Stainless Steel
SKU:VAL-c6aca8
Reliable JIS 10K Series 52 Full Lug Valves for industrial applications, sizes 250-10", durable materials, ISO 5752 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
JIS 10K Series 52 Full Lug Valves - Bronze/Carbon/Stainless Steel
$289.99
Quantity: 1
Claim Your Seller Account
JIS 10K Series 52 Full Lug Valves - Bronze/Carbon/Stainless Steel
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JIS 10K Series 52 Full Lug Valves offer exceptional durability and versatility for various industrial applications. Available in sizes ranging from 250 to 10 inches, these valves are constructed with high-quality materials like Bronze, Carbon Steel, or Stainless Steel, ensuring reliable performance and longevity. Equipped with EPDM/NBR seating and stainless steel stems, these valves are designed to meet ISO 5752 standards, making them ideal for institutional and government procurement needs.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

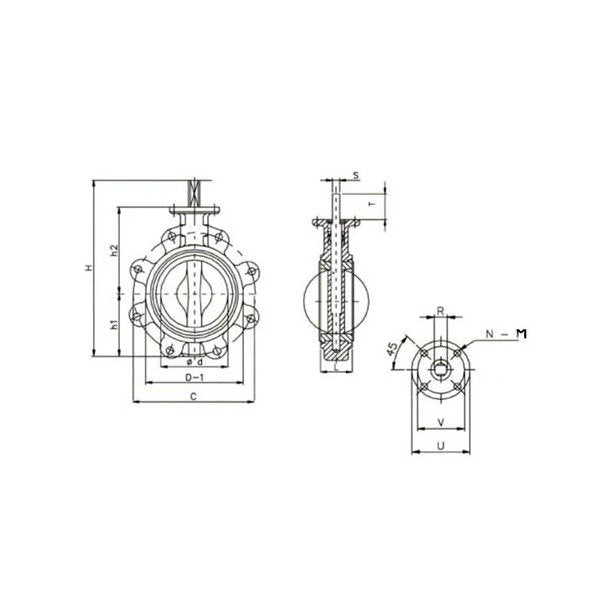

Specifications C
355 mm
Specifications D
248 mm
Specifications D 1
328 mm
Specifications H
506 mm
Specifications H1
205 mm
Specifications H2
267 mm
Specifications Hole Diameter
25 mm
Specifications L
68 mm
Specifications Number Of Holes
12
Specifications Size
250 - 10"
Specifications Standard
JIS
Specifications Stem R
28 mm
Specifications Stem S
18 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
29.30 kg
