JIS 10K Teflon Lined Valves - Series 58
JIS 10K Teflon Lined Valves - Series 58
SKU:VAL-2e6fb8
Premium Series 58 Teflon Lined Valves meeting ISO standards for optimal performance in industrial setups.
Regular price
$699.00
Regular price
Sale price
$699.00
Unit price
per
Initiate Order
JIS 10K Teflon Lined Valves - Series 58
$699.00
Quantity: 1
Claim Your Seller Account
JIS 10K Teflon Lined Valves - Series 58
$699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 58 Teflon Lined Valves JIS 10K are designed to meet ISO 5752 S-20 face-to-face standards, offering exceptional durability and versatility. Available in sizes ranging from 2" to 24" and constructed from high-quality materials such as Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure reliable performance in diverse industrial applications. With options for various disc, stem, seat, and packing materials, they cater to specific operational requirements, providing superior leakage prevention and maintenance ease.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

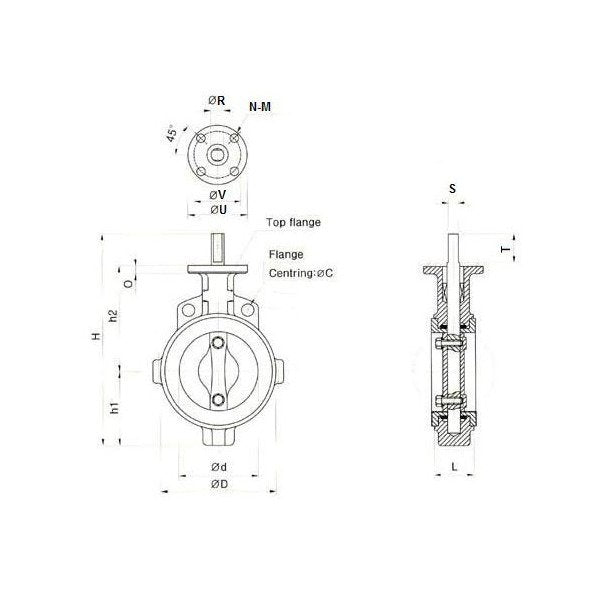

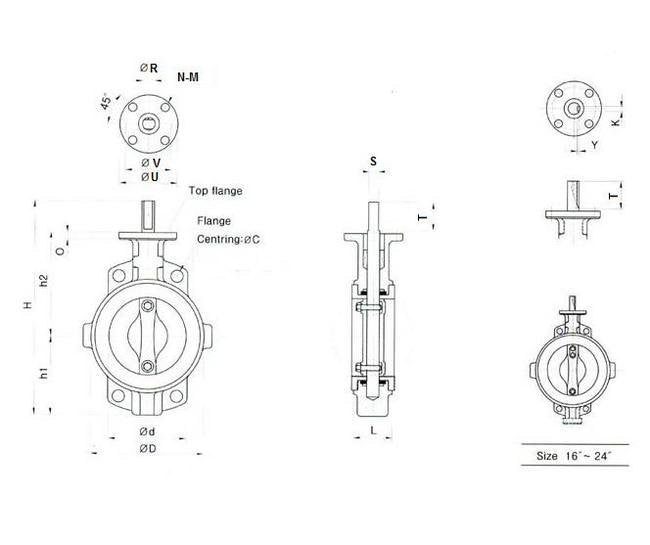

Specifications D
695 mm
Specifications H
1180 mm
Specifications H1
493 mm
Specifications H2
570 mm
Specifications L
154 mm
Specifications Pressure
10K
Specifications Size
600 - 24"
Specifications Standard
JIS
Specifications Stem T
60 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
210 mm
Specifications Top Flange To Iso 5211 V
165 mm
Specifications Weight
215 kg
