JIS 10K Teflon Lined Valves - Series 58
JIS 10K Teflon Lined Valves - Series 58
SKU:VAL-0b6ac5
High-performance Series 58 Teflon Lined Valves JIS 10K - Reliable, durable, compliant.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
JIS 10K Teflon Lined Valves - Series 58
$699.99
Quantity: 1
Claim Your Seller Account
JIS 10K Teflon Lined Valves - Series 58
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 58 Teflon Lined Valves JIS 10K offer superior performance and durability for a wide range of applications. Built with high-quality materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, these valves ensure reliable operation. The available Stem Material is Stainless Steel, while the Seat Material options include EPDM, NBR, Teflon, and Viton. With compliance to ISO 5752 S-20 and JIS standards, these valves are a trusted choice for institutional and government procurement needs.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

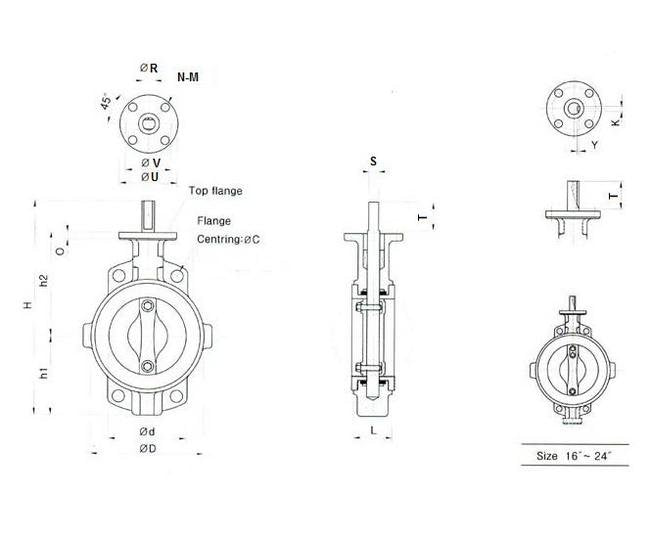

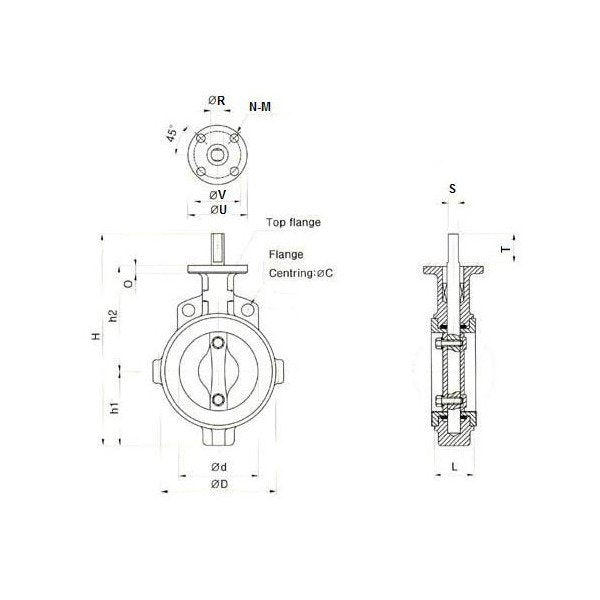

Specifications D
643 mm
Specifications H
1085 mm
Specifications H1
440 mm
Specifications H2
528 mm
Specifications L
154 mm
Specifications Pressure
10K
Specifications Size
550 - 22"
Specifications Standard
JIS
Specifications Stem T
60 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
210 mm
Specifications Top Flange To Iso 5211 V
165 mm
Specifications Weight
164 kg
