JIS 16K Series 55 Double Flanged Valves - Institutional Grade
JIS 16K Series 55 Double Flanged Valves - Institutional Grade
SKU:VAL-ea6fdd
High-performance JIS 16K Series 55 Double Flanged Valves designed for institutional and government use. Compliant with ISO standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
JIS 16K Series 55 Double Flanged Valves - Institutional Grade
$1,299.99
Quantity: 1
Claim Your Seller Account
JIS 16K Series 55 Double Flanged Valves - Institutional Grade
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JIS 16K Series 55 Double Flanged Valves are engineered to meet the rigorous demands of institutional and government sectors. Compliant with ISO 5752 S-20 standards, these valves boast a size range from 50A to 1000A (2" to 40") with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The disc, stem, and seat materials offer unparalleled durability and reliability. With a focus on precision and quality, these valves guarantee optimal performance and longevity in critical applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

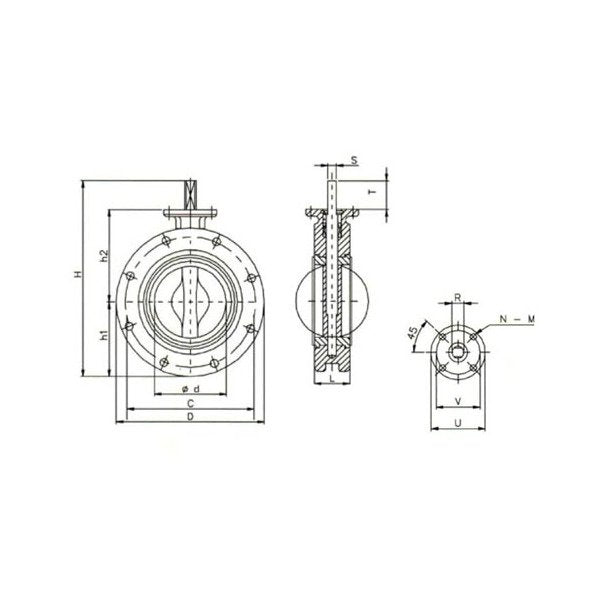

Specifications C
430 mm
Specifications D
480 mm
Specifications H
538 mm
Specifications H1
249 mm
Specifications H2
295 mm
Specifications Hole Diameter
27 mm
Specifications L
78 mm
Specifications Number Of Holes
16
Specifications Size
300 - 12"
Specifications Standard
JIS
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
58.8 kg
