JIS 16K Series 58 Teflon Lined Valves
JIS 16K Series 58 Teflon Lined Valves
SKU:VAL-51c754
High-quality JIS 16K Series 58 Teflon Lined Valves in sizes 2" to 24", offering durability, corrosion resistance, and leak-free performance.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
JIS 16K Series 58 Teflon Lined Valves
$749.99
Quantity: 1
Claim Your Seller Account
JIS 16K Series 58 Teflon Lined Valves
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JIS 16K Series 58 Teflon Lined Valves are meticulously engineered to meet ISO 5752 S-20 standards, offering a size range from 2" to 24". With body material options including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, along with disc, stem, seat, and packing material variety, these valves ensure reliable performance and durability. Suitable for diverse applications, these valves guarantee leak-free operation and resistance to corrosion, making them ideal for industrial settings.

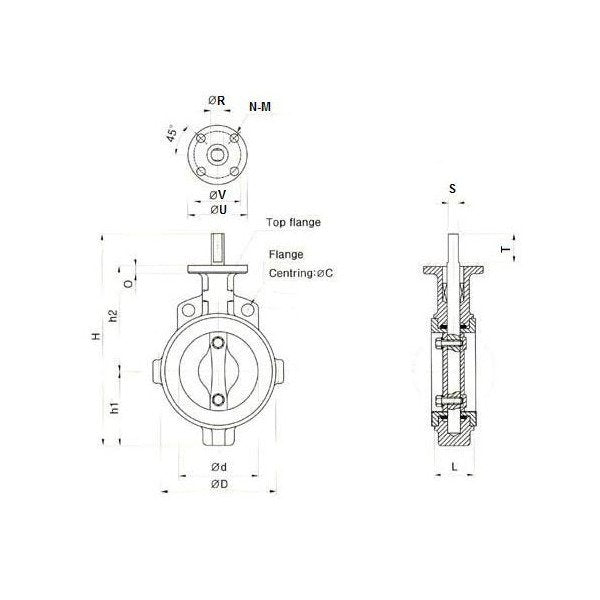

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
25 mm
Specifications C
260 mm
Specifications D
210 mm
Specifications H
347 mm
Specifications H1
124 mm
Specifications H2
191 mm
Specifications L
56 mm
Specifications Number Of Bolts
12
Specifications O
12 mm
Specifications Pressure
16K
Specifications Size
150 - 6"
Specifications Standard
JIS
Specifications Stem R
19 mm
Specifications Stem S
15 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
9.4 kg
