JIS 16K Steel Blind Flanges - Carbon Steel, 24 Bolts, 1020mm D, 935mm C

Name: JIS 16K Steel Blind Flanges - Carbon Steel, 24 Bolts, 1020mm D, 935mm C
Brand: World Wide Metric, Inc.
SKU: FLA-b8dc1e
Price: 649.99 USD
Availability: OutOfStock

SKU:FLA-b8dc1e

High-quality Carbon Steel Blind Flanges JIS 16K for secure, high-pressure connections. Sizes 750-30", Pressure: JIS 16K, 24 Bolts. D: 1020mm, C: 935mm. Weight: 321.90kg.

$649.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

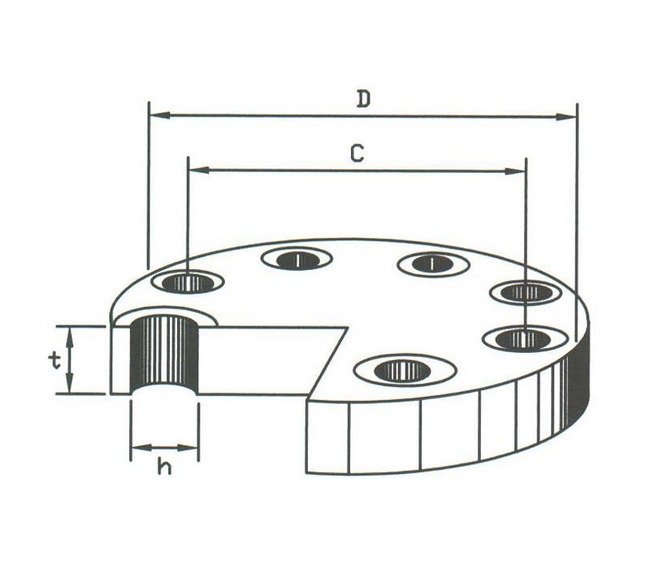

Our Blind Flanges JIS 16K Steel are engineered for reliable flange connections in high-pressure systems. With a size range from 750 to 30 inches and a JIS 16K pressure rating, these flanges provide robust sealing and support. Crafted from durable Carbon Steel, these flanges offer exceptional strength and corrosion resistance. The 24-bolt design ensures secure fastening, while the precise dimensions of 1020mm D, 935mm C, 42mm h, and 52mm t guarantee a perfect fit. Compliant with industry standards, these blind flanges are ideal for a wide range of applications.

Product Specifications

Specifications C

935 mm

Specifications D

1020 mm

Specifications H

42 mm

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

JIS 16K

Specifications Size

750 - 30"

Specifications T

52 mm

Specifications Weight

321.90 kg

JIS 16K Steel Blind Flanges - Carbon Steel, 24 Bolts, 1020mm D, 935mm C
