JIS 16K Steel Flat Faced Slip-On Flanges 300mm (12")
JIS 16K Steel Flat Faced Slip-On Flanges 300mm (12")
SKU:FLA-bc0f12
High-quality JIS 16K Steel Flat Faced Slip-On Flanges for secure industrial piping systems.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
JIS 16K Steel Flat Faced Slip-On Flanges 300mm (12")
$89.99
Quantity: 1
Claim Your Seller Account
JIS 16K Steel Flat Faced Slip-On Flanges 300mm (12")
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our JIS 16K Steel Flat Faced Slip-On Flanges are crafted from high-quality carbon steel, offering durability and reliable performance. With precise dimensions following JIS 16K standards, these flanges ensure a secure fit for industrial piping systems. Featuring a slip-on design and 16 bolts for strong attachment, these flanges are suitable for high-pressure applications. Weighing 21.50 kg, these flanges have a 321.0 mm inner diameter, 480 mm outer diameter, and 430 mm bolt circle diameter, meeting the stringent requirements of institutional buyers.

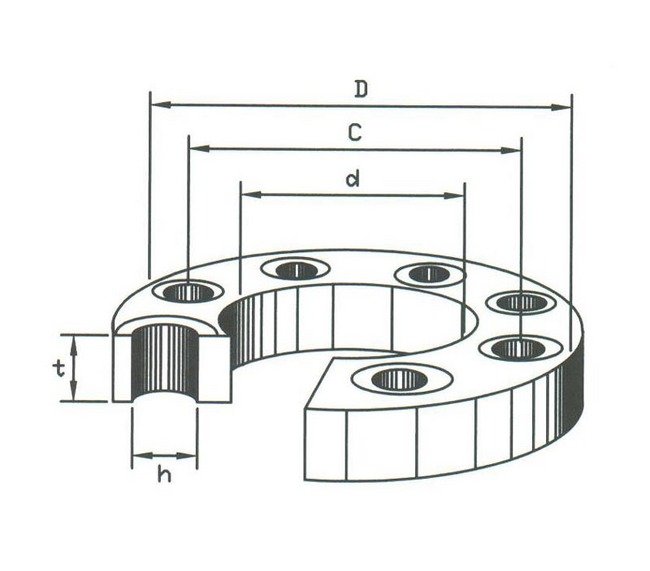

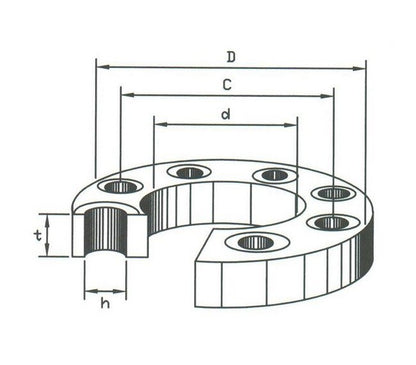

Product Specifications
Specifications C
430 mm
Specifications D
480 mm
Specifications H
27 mm
Specifications Material
Carbon Steel
Specifications Number Of Bolts
16
Specifications Pressure
JIS 16K
Specifications Size
300 - 12"
Specifications T
30 mm
Specifications Type
Slip-On
Specifications Weight
21.50 kg
