JIS 16K Steel Flat Faced Slip-On Flanges

Name: JIS 16K Steel Flat Faced Slip-On Flanges
Brand: World Wide Metric, Inc.
SKU: FLA-5b5133
Price: 249.99 USD
Availability: OutOfStock

SKU:FLA-5b5133

High-quality JIS 16K Steel Slip-On Flanges for secure and easy industrial installations.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JIS 16K Steel Flat Faced Slip-On Flanges are meticulously crafted from Carbon Steel, meeting the demands of both consumer and institutional buyers. With precise dimensions ranging from 900 - 36", these flanges ensure a secure fit with 28 bolts, boasting a robust construction that can withstand a pressure rating of JIS 16K. The Slip-On design facilitates easy installation, making it an ideal choice for a wide range of industrial applications.

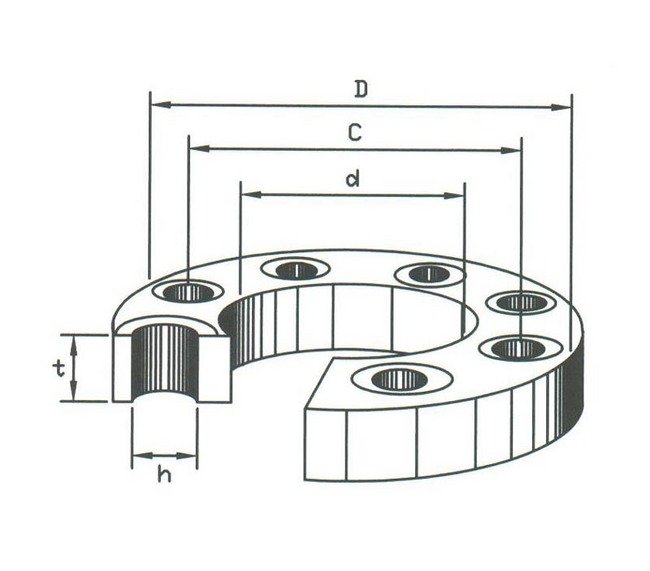

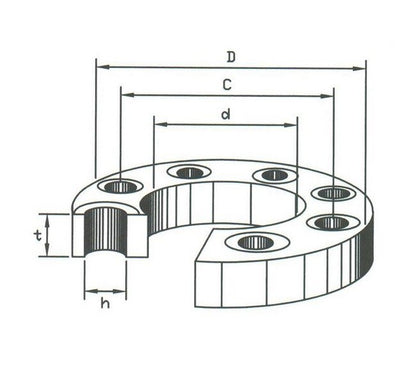

Product Specifications

Specifications C

1090 mm

Specifications D

1185 mm

Specifications H

48 mm

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

JIS 16K

Specifications Size

900 - 36"

Specifications T

58 mm

Specifications Type

Slip-On

Specifications Weight

178.10 kg

JIS 16K Steel Flat Faced Slip-On Flanges
