JIS 16K Teflon Lined Butterfly Valve Series 58

Name: JIS 16K Teflon Lined Butterfly Valve Series 58
Brand: World Wide Metric, Inc.
SKU: VAL-90a863
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-90a863

Reliable JIS 16K Teflon Lined Butterfly Valve Series 58 for industrial fluid control. Sizes 2" to 24", various body materials, Teflon-lined disc, and ISO 5752 S-20 compliant.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JIS 16K Teflon Lined Butterfly Valve Series 58 offers unparalleled reliability and performance in fluid control systems. With a size range of 2" to 24" and body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, this valve ensures compatibility with various applications. The valve features a Teflon-lined disc, stainless steel stem, and a range of seat material options, including NBR, EPDM, Viton, and Teflon, guaranteeing long-lasting durability and chemical resistance. Compliant with ISO 5752 S-20 standards, this valve is ideal for industrial and institutional use.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Teflon | Viton

Specifications Available Stem Material

Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

Specifications Bolt Diameter

33 mm

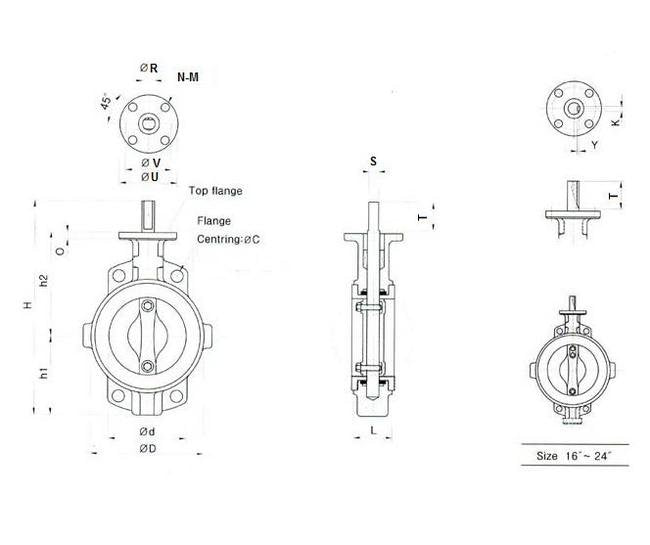

Specifications C

540 mm

Specifications D

475 mm

Specifications H

817 mm

Specifications H1

343 mm

Specifications H2

369 mm

Specifications L

102 mm

Specifications Number Of Bolts

Specifications O

23 mm

Specifications Pressure

16K

Specifications Size

400 - 16"

Specifications Standard

JIS

Specifications Stem K

10 mm

Specifications Stem R

35 mm

Specifications Stem T

60 mm

Specifications Stem Y

5 mm

Specifications Top Flange To Iso 5211 M Diameter

18 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

175 mm

Specifications Top Flange To Iso 5211 V

140 mm

Specifications Weight

64 kg
