The Series 58 Teflon Lined Valves JIS 16K are engineered to meet rigorous industry standards, offering superb performance and durability. With a size range of 50A to 600A, various body materials including cast iron and stainless steel, and stem materials like stainless steel, these valves ensure reliable operation and longevity. The Teflon lining enhances corrosion resistance, making them ideal for diverse applications where fluid control is critical. Trust in the quality and precision of these valves for your industrial needs.

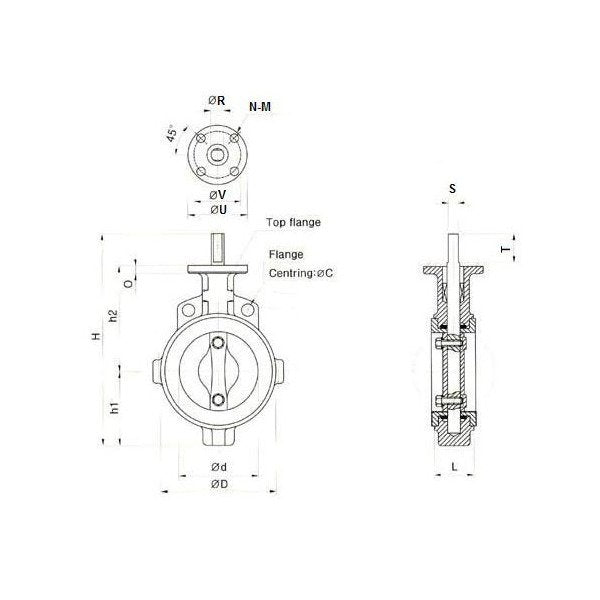

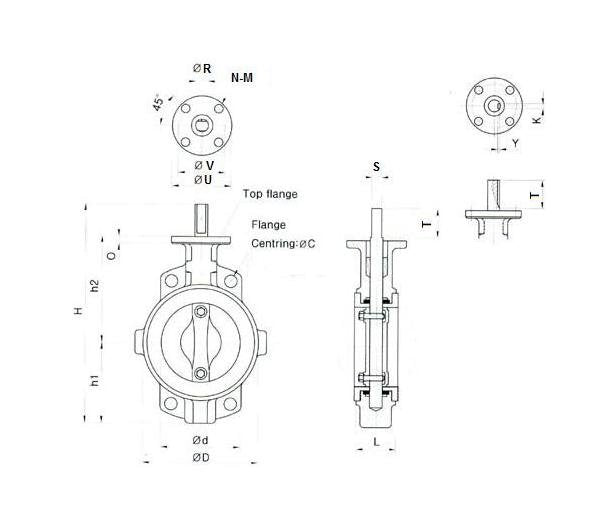

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
27 mm
Specifications C
380 mm
Specifications D
328 mm
Specifications H
546 mm
Specifications H1
227 mm
Specifications H2
285 mm
Specifications L
68 mm
Specifications Number Of Bolts
12
Specifications O
15 mm
Specifications Pressure
16K
Specifications Size
250 - 10"
Specifications Standard
JIS
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Stem T
45 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
21 kg
