JIS 5K Carbon Steel Blind Flange - 1000-40"
JIS 5K Carbon Steel Blind Flange - 1000-40"
SKU:FLA-81d4a3
High-quality JIS 5K Carbon Steel Blind Flange for industrial piping, Size: 1000-40", Pressure: JIS 5K, Material: Carbon Steel.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
JIS 5K Carbon Steel Blind Flange - 1000-40"
$799.99
Quantity: 1
Claim Your Seller Account
JIS 5K Carbon Steel Blind Flange - 1000-40"
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

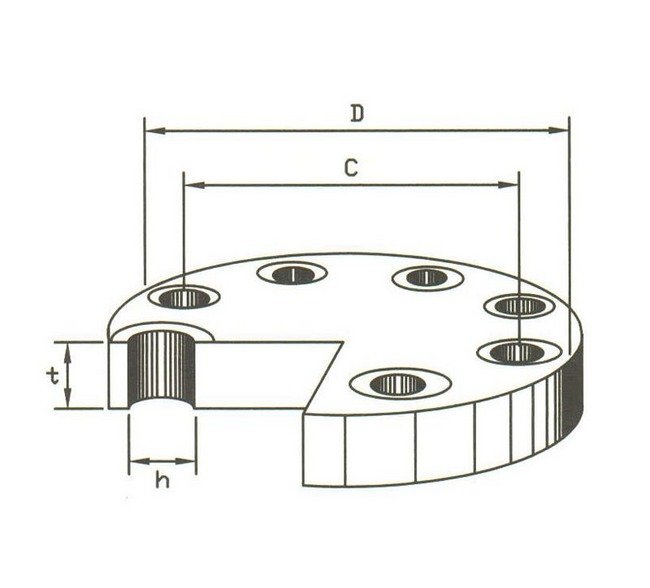

The JIS 5K Carbon Steel Blind Flange is a reliable solution for sealing the end of pipes in industrial applications. With a Size range of 1000-40", Pressure rating of JIS 5K, and constructed from durable Carbon Steel, this flange ensures secure connections with its 28 Bolts for enhanced stability. Featuring precise dimensions of D: 1195mm, C: 1130mm, along with a low-profile design of h: 33mm and t: 32mm, this flange is designed to meet the stringent requirements of industrial and institutional projects.
Product Specifications
Specifications C
1130 mm
Specifications D
1195 mm
Specifications H
33 mm
Specifications Material
Carbon Steel
Specifications Number Of Bolts
28
Specifications Pressure
JIS 5K
Specifications Size
1000 - 40"
Specifications T
32 mm
Specifications Weight
277.30 kg
