JIS 5K Series 55 Double Flanged Valves
JIS 5K Series 55 Double Flanged Valves
SKU:VAL-7d2b67
Premium JIS 5K Series 55 Valves for industrial applications. Sizes from 2" to 40". ISO 5752 compliant. Choose from various materials.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
JIS 5K Series 55 Double Flanged Valves
$799.99
Quantity: 1
Claim Your Seller Account
JIS 5K Series 55 Double Flanged Valves
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JIS 5K Series 55 Double Flanged Valves offer superior performance and durability for industrial applications. With sizes ranging from 2" to 40", various body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, and compatible disc, stem, seat, and packing materials, these valves ensure reliable operation and optimal flow control. Meeting ISO 5752 standards, these valves are precision-engineered to deliver exceptional quality and longevity, making them a perfect choice for institutional and government procurement.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

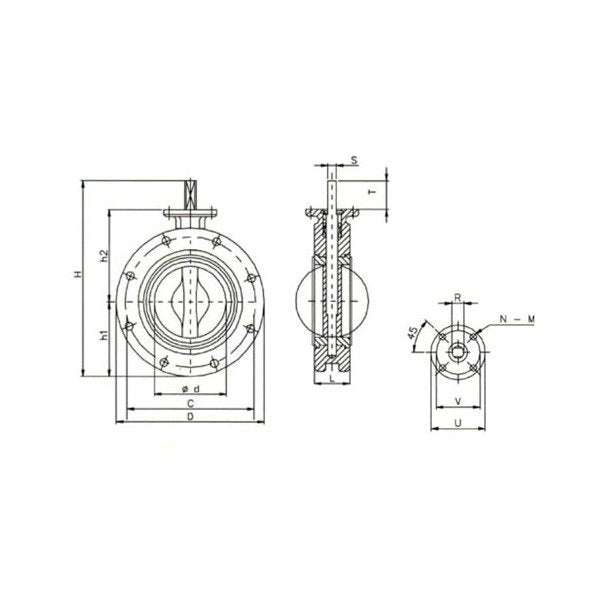

Specifications C
390 mm
Specifications D
430 mm
Specifications H
538 mm
Specifications H1
249 mm
Specifications H2
295 mm
Specifications Hole Diameter
23 mm
Specifications L
78 mm
Specifications Number Of Holes
12
Specifications Size
300 - 12"
Specifications Standard
JIS
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
58.8 kg
