JIS 5K SS Blind Flange - 24 inch

Name: JIS 5K SS Blind Flange - 24 inch
Brand: World Wide Metric, Inc.
SKU: FLA-16102d
Price: 349.99 USD
Availability: OutOfStock

SKU:FLA-16102d

High-quality JIS 5K Stainless Steel Blind Flange - 24" for secure and durable pipeline sealing in industrial applications.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

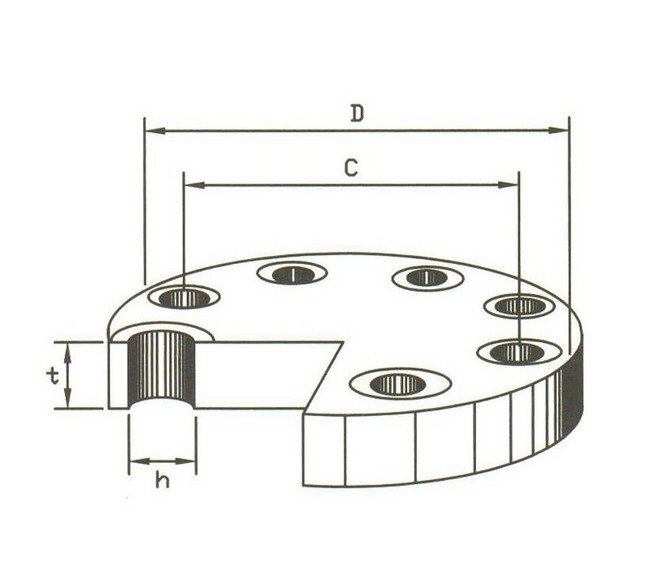

Our Blind Flanges JIS 5K Stainless Steel in a substantial 24-inch size provide reliable sealing for pipelines in high-pressure applications. Constructed from durable Stainless Steel, these flanges offer exceptional strength and corrosion resistance, ensuring long-term performance. Compliant with JIS 5K standards, they feature precise dimensions (D: 770mm, C: 715mm) and come with 20 sturdy bolts for secure connections. Ideal for industrial and institutional use where quality and durability are paramount.

Product Specifications

Specifications C

715 mm

Specifications D

770 mm

Specifications H

27 mm

Specifications Material

Stainless Steel

Specifications Number Of Bolts

Specifications Pressure

JIS 5K

Specifications Size

600 - 24"

Specifications T

26 mm

Specifications Weight

93.20 kg
