JIS 5K Steel Slip-On Flanges

Name: JIS 5K Steel Slip-On Flanges
Brand: World Wide Metric, Inc.
SKU: FLA-c87a53
Price: 329.99 USD
Availability: OutOfStock

SKU:FLA-c87a53

Durable JIS 5K Steel Slip-On Flanges for secure pipeline connections. Made of Carbon Steel with precise dimensions and 24 bolts for reliability.

$329.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

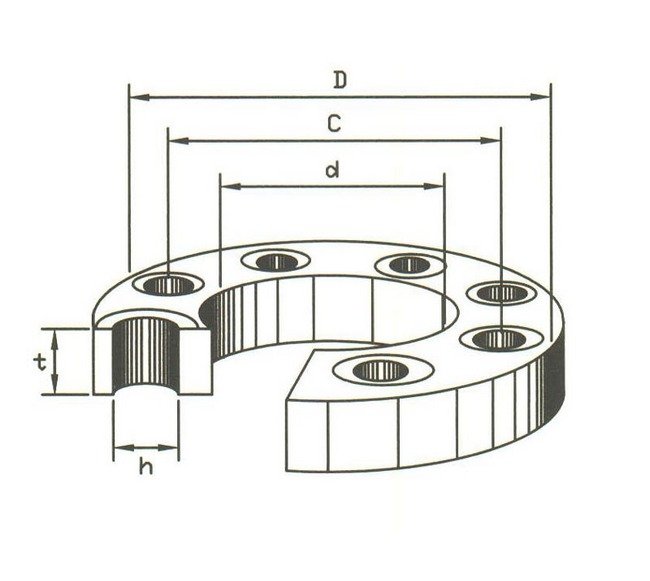

The Flat Faced Slip-On Flanges JIS 5K Steel are designed for seamless installation, offering a sturdy connection in pipelines with a Pressure rating of JIS 5K. Made from durable Carbon Steel, these flanges feature precise dimensions (d: 766.0 mm, D: 945 mm, C: 880 mm) and 24 bolts for secure fastening. With a low-profile 33mm height and a weight of 48.7 kg, these Slip-On Flanges provide reliability and efficiency in industrial applications.

Product Specifications

Specifications C

880 mm

Specifications D

945 mm

Specifications H

33 mm

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

JIS 5K

Specifications Size

750 - 30"

Specifications T

28 mm

Specifications Type

Slip-On

Specifications Weight

48.7 kg
