JIS 5K Teflon Lined Valves Series 58
JIS 5K Teflon Lined Valves Series 58
SKU:VAL-a2005c
Versatile and reliable Teflon Lined Valves designed for institutional applications, complying with ISO standards.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
JIS 5K Teflon Lined Valves Series 58
$279.99
Quantity: 1
Claim Your Seller Account
JIS 5K Teflon Lined Valves Series 58
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JIS 5K Teflon Lined Valves Series 58 are meticulously crafted with Face to Face compliance with ISO 5752 S-20 standards. Available in sizes ranging from 2" to 24", these valves boast a robust body material selection including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. With options for Disc, Stem, Seat, and Packaging materials, these valves offer versatility and reliability for a wide range of applications in institutional settings.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

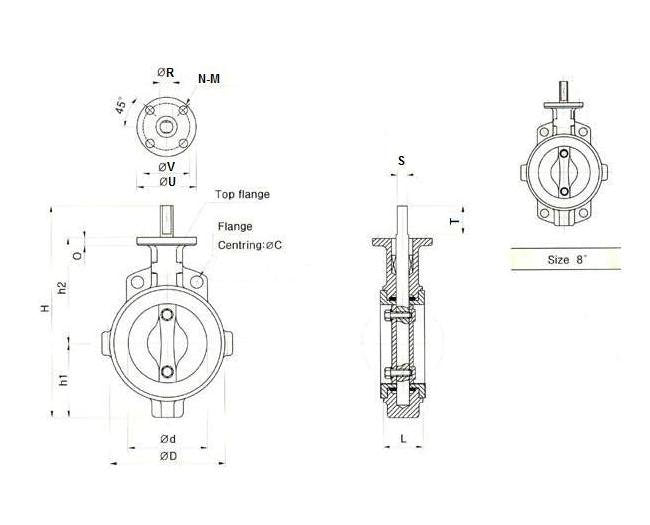

Specifications Bolt Diameter
23 mm
Specifications C
280 mm
Specifications D
259 mm
Specifications H
433 mm
Specifications H1
163 mm
Specifications H2
238 mm
Specifications L
60 mm
Specifications Number Of Bolts
8
Specifications O
13 mm
Specifications Pressure
5K
Specifications Size
200 - 8"
Specifications Standard
JIS
Specifications Stem R
22 mm
Specifications Stem S
18 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
11.5 kg
