Jorc MAG-11 Zero Air Loss Drain
Jorc MAG-11 Zero Air Loss Drain
SKU:CLE-6e2d5d
Efficiently remove condensate with zero air loss using the Jorc MAG-11 Zero Air Loss Drain. Easy to install, eco-friendly, and reliable for compressed air systems.
Regular price
$211.13
Regular price
Sale price
$211.13
Unit price
per
Initiate Order
Jorc MAG-11 Zero Air Loss Drain
$211.13
Quantity: 1
Claim Your Seller Account
Jorc MAG-11 Zero Air Loss Drain
$211.13
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

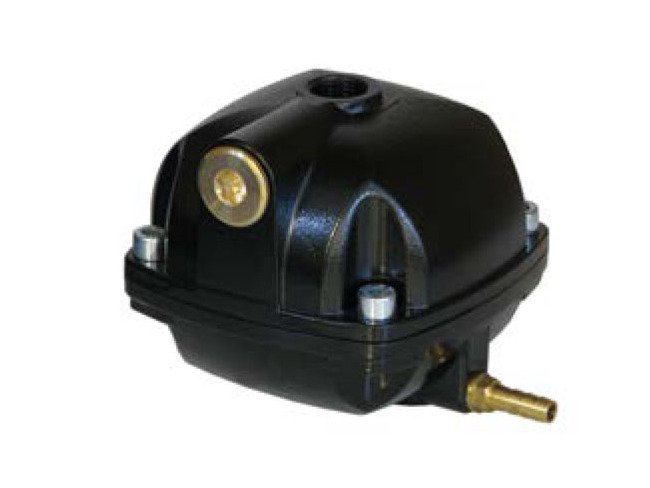

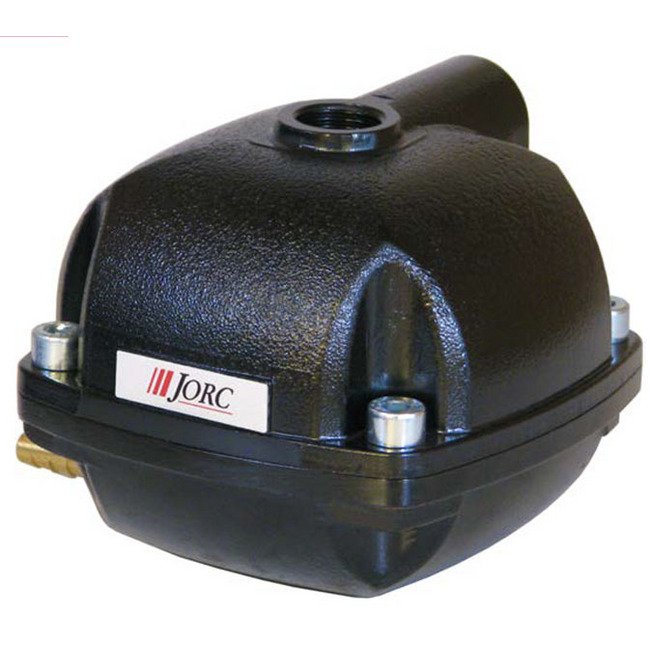

The Jorc MAG-11 Zero Air Loss Drain is a magnetically operated solution that efficiently removes condensate from compressed air filters and refrigerated dryers without any air loss. Utilizing innovative magnetic technology, this drain features a 2/2 way direct acting valve construction powered by specially selected long-life magnets. With a maximum drainage capacity of 145 L and corrosion-resistant aluminum housing, the MAG-11 guarantees reliable and efficient condensate discharge. It offers top and side inlet options, making installation a breeze, and operates without the need for electricity, making it a cost-effective and environmentally friendly solution for various compressed air applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Commercial Benefits Commercial Benefits
Does not require electricity No operating cost once installed Competitive true 'green' solution suitable for all compressed air filters and refrigerated dryers Zero air loss technology saves air, energy and money Low stocking cost advantages for you Low purchase threshold for your customers Consult Jorc for private labelling options
Financing Approve Payments
Finance with Approve Payments
Note Note
Information provided herewith is believed to be accurate and reliable. However, no responsibility is assumed for its use or for any infringement of patents or rights of others, which may result from its use. In addition, Jorc reserves the right to revise information without notice and without incurring any obligation.Think Green
Specifications Industry Standardscertifications
CE | NEN - EN - ISO 9001:2015 Certified
Specifications Type
Zero Loss
Specifications Web Price
211.13 USD
Technical Advantages Technical Advantages

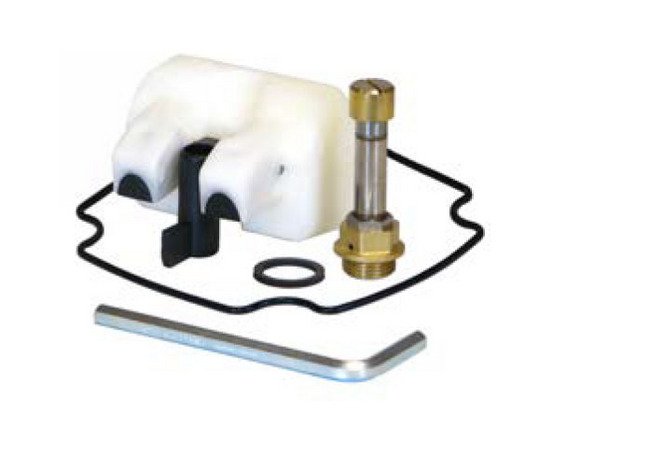

Two inlet options Robust corrosion resistant aluminum housing Incredibly easy to install and to service No need to unthread the MAG-11 for routine maintenance Direct acting valve, for a reliable discharge Service kit available
Technical Specification Connection Size
1/2 in
Technical Specification Connection Type
British Standard Pipe (BSP) | National Pipe Thread (NPT)
Technical Specification Environmental Protection Inlet
Ingress Protection (IP68) (National Electrical Manufacturers Association (NEMA 6))
Technical Specification Housing Material
Corrosion Resistant Aluminum | Electrophoretic (EP) Coating
Technical Specification Maximum Drainage Capacity
145 L
Technical Specification Maximum Filter Capacity
Unlimited
Technical Specification Minimummaximum Ambient Temperature
1 to 50 ºC
Technical Specification Minimummaximum Medium Temperature
1 to 50 ºC
Technical Specification Minimummaximum System Pressure
0 to 16 bar | 0 to 230 psi
Technical Specification Number Of Inlet Options
2
Technical Specification Outlet Connection
1/8 in. BSP
Technical Specification Serviceable Valve
true

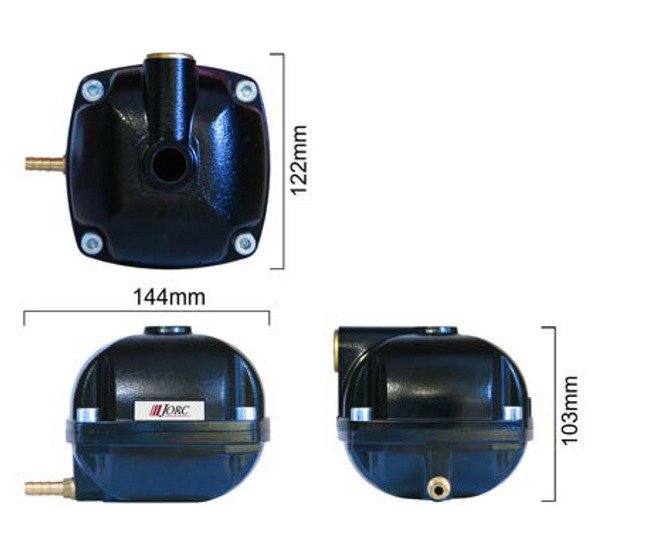

Technical Specification Side Inlet Height
9 cm
Technical Specification Top Inlet Height
10.3 cm
Technical Specification Valve Orifice
2 mm
Technical Specification Valve Seal
FPM
Technical Specification Valve Type
2/2 Way Direct Acting
