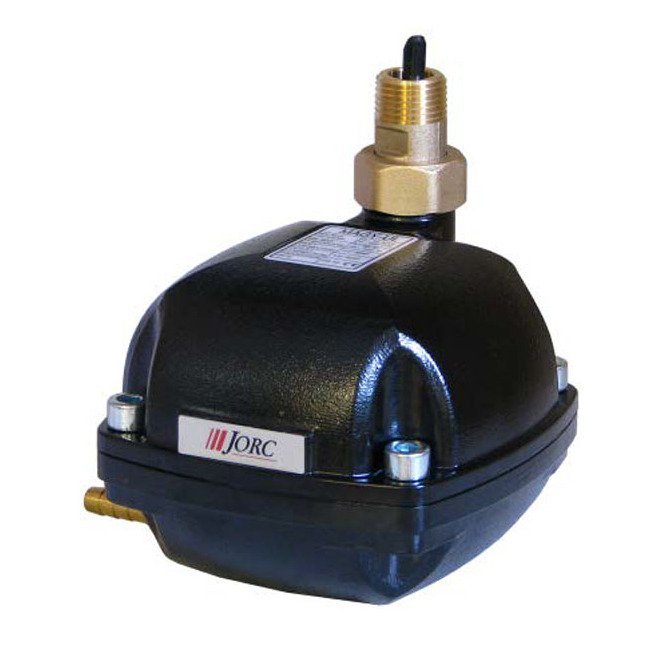

The Jorc MINI-MAG is a cutting-edge magnetically operated zero air loss drain designed for efficiently discharging condensate from various compressed air filters. Utilizing advanced magnetic technology, this drain ensures automatic discharge without any loss of compressed air, preserving energy and reducing costs. Its maintenance is hassle-free, and it can remain attached during service, offering high operation consistency and ease of installation. With compliance to CE and NEN - EN - ISO 9001:2015 certifications, the MINI-MAG presents a reliable, green solution suitable for all compressed air filters.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Commercial Benefits Commercial Benefits
Does not require electricity No operating cost once installed Competitive true 'green' solution suitable for all compressed air filters Zero air loss technology saves air, energy and money Low stocking cost advantages for you Low purchase threshold for your customers Consult Jorc for private labelling options
Financing Approve Payments
Finance with Approve Payments
Note Note
Information provided herewith is believed to be accurate and reliable. However, no responsibility is assumed for its use or for any infringement of patents or rights of others, which may result from its use. In addition, Jorc reserves the right to revise information without notice and without incurring any obligation.The filter is an image offered by Walker Filtration Ltd. with the aim of presenting the MINI-MAG under a filter. Jorc does not sell filters.
Specifications Drain Type
Zero Loss
Specifications Industry Standardscertifications
CE | NEN - EN - ISO 9001:2015 Certified
Specifications Web Price
179.34 USD
Technical Advantages Technical Advantages
Information provided herewith is believed to be accurate and reliable. However, no responsibility is assumed for its use or for any infringement of patents or rights of others, which may result from its use. In addition, Jorc reserves the right to revise information without notice and without incurring any obligation.The filter is an image offered by Walker Filtration Ltd. with the aim of presenting the MINI-MAG under a filter. Jorc does not sell filters.
Technical Specification Anti Air Lock Adapter
Standard Integrated
Technical Specification Environmental Protection Inlet
Ingress Protection (IP68) (National Electrical Manufacturers Association (NEMA 6))
Technical Specification Housing Material
Corrosion Resistant Aluminum | Electrophoretic (EP) Coating
Technical Specification Inlet Connection Size
0 1/2 in
Technical Specification Inlet Connection Type
British Standard Pipe (BSP) | National Pipe Thread (NPT)

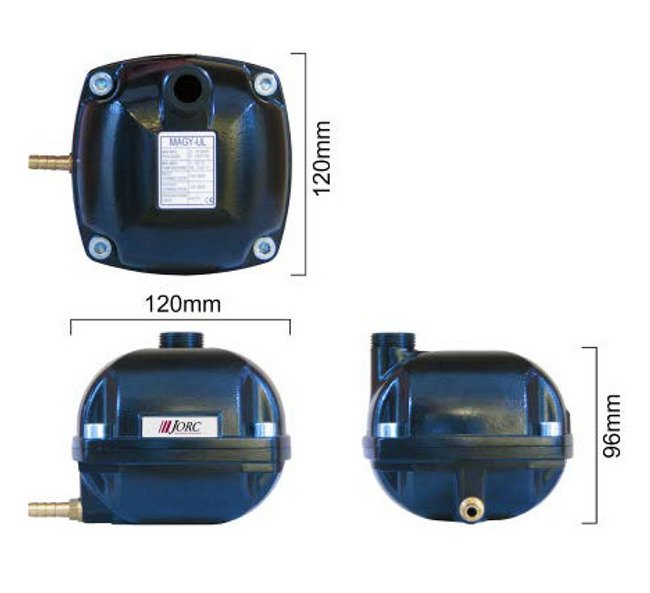

Technical Specification Inlet Height
10.3 cm
Technical Specification Maximum Drainage Capacity
145 L
Technical Specification Maximum Filter Capacity
Unlimited
Technical Specification Minimummaximum Ambient Temperature
1 to 50 ºC
Technical Specification Minimummaximum Medium Temperature
1 to 50 ºC
Technical Specification Minimummaximum System Pressure
0 to 16 bar | 0 to 230 psi
Technical Specification Outlet Connection Size
1/8 in
Technical Specification Outlet Connection Type
British Standard Pipe (BSP)
Technical Specification Serviceable Valve
true
Technical Specification Valve Orifice
2 mm
Technical Specification Valve Seal
FPM
Technical Specification Valve Type
2/2 Way Direct Acting
