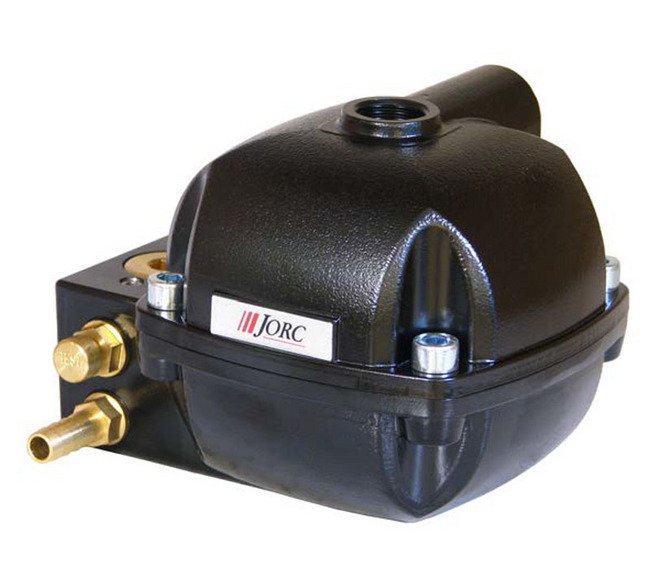

Jorc POD-TD Pneumatic Level Sensed Condensate Drain
Jorc POD-TD Pneumatic Level Sensed Condensate Drain
SKU:CLE-98cac9
The Jorc POD-TD efficiently removes condensate from compressed air systems up to 100 m³/min without electricity, meeting CE and ISO 9001:2015 standards.
Regular price
$306.52
Regular price
Sale price
$306.52
Unit price
per
Initiate Order
Jorc POD-TD Pneumatic Level Sensed Condensate Drain
$306.52
Quantity: 1
Claim Your Seller Account
Jorc POD-TD Pneumatic Level Sensed Condensate Drain
$306.52
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

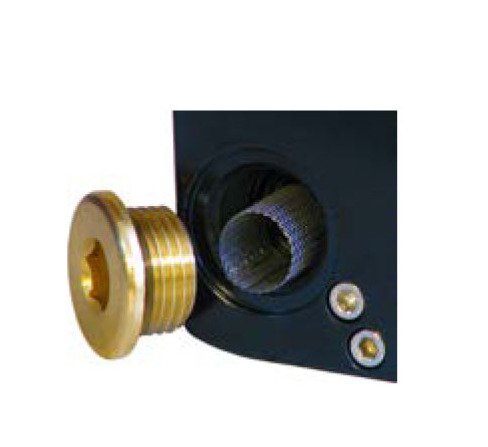

The Jorc POD-TD Pneumatically Operated Level Sensed Condensate Drain efficiently removes condensate from compressed air systems up to 100 m³/min without needing electricity. Featuring a 3/2 way level controlled valve system, this drain is perfect for applications where power is scarce or costly. With a stainless steel strainer for optimal performance, it meets CE and ISO 9001:2015 standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Commercial Benefits Commercial Benefits
Suitable for any type of compressed air system No electricity required - install and go No operating costs Competitive 'true green' solution Reduced stocking costs - 1 model covers 100 m³/min. No complicated sizing charts required Consult Jorc for private labelling options
Financing Approve Payments
Finance with Approve Payments
Note Note
Information provided herewith is believed to be accurate and reliable. However, no responsibility is assumed for its use or for any infringement of patents or rights of others, which may result from its use. In addition, Jorc reserves the right to revise information without notice and without incurring any obligation.
Specifications Industry Standardscertifications
CE | NEN - EN - ISO 9001:2015 Certified
Specifications Media
Condensate
Specifications Web Price
306.52 USD
Technical Advantages Technical Advantages
Information provided herewith is believed to be accurate and reliable. However, no responsibility is assumed for its use or for any infringement of patents or rights of others, which may result from its use. In addition, Jorc reserves the right to revise information without notice and without incurring any obligation.
Technical Specification Environmental Protection Inlet
Ingress Protection (IP68) (National Electrical Manufacturers Association (NEMA 6))
Technical Specification Housing Material
Corrosion Resistant Aluminum | Electrophoretic (EP) Coating
Technical Specification Inlet Connection Size
0 1/2 in
Technical Specification Inlet Connection Type
British Standard Pipe (BSP) | National Pipe Thread (NPT)
Technical Specification Integrated Mesh Strainer
true
Technical Specification Maximum Compressor Capacity
100 m³/min
Technical Specification Maximum Drainage Capacity
1062 L
Technical Specification Minimummaximum Ambient Temperature
1 to 50 ºC
Technical Specification Minimummaximum Medium Temperature
1 to 50 ºC
Technical Specification Minimummaximum System Pressure
3 to 16 bar
Technical Specification Number Of Inlet Options
3
Technical Specification Outlet Connection Size
1/4 in
Technical Specification Outlet Connection Type
British Standard Pipe (BSP)
Technical Specification Serviceable Valve
true
Technical Specification Side Inlet Height
1.5 cm | 9.7 cm
Technical Specification Test Feature
true
Technical Specification Top Inlet Height
11.2 cm
Technical Specification Valve Orifice
6 mm
Technical Specification Valve Seal
FPM
Technical Specification Valve Type
Direct Acting
