JSU Series Power Supply Junction Box - UL Approved
JSU Series Power Supply Junction Box - UL Approved
SKU:WAL-6e31bc
Enhance equipment performance with the UL-approved JSU Series Power Supply Junction Box. Stable power output and reduced cord clutter for seamless operation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JSU Series Power Supply Junction Box - UL Approved
$29.99
Quantity: 1
Claim Your Seller Account
JSU Series Power Supply Junction Box - UL Approved
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

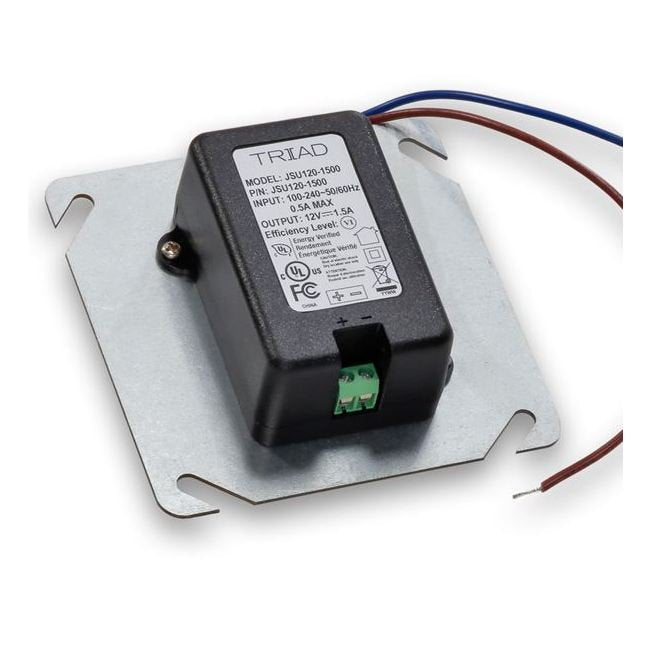

The JSU Series Power Supply Junction Box is a reliable solution for hardwiring essential equipment with precision. Say goodbye to tangled cords and accidental disconnections. Available in 12Vdc/1.5A or 24Vdc/0.75A, this UL-approved box ensures superior performance. With ±5% regulation of line and load, maximum ripple and noise of 150mV peak-to-peak, and a no-load standby power of 100 mW, it offers efficiency and peace of mind for any setup.
Product Specifications

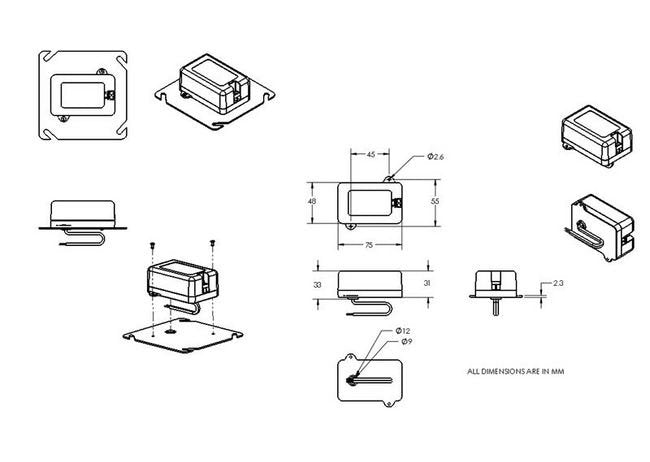

Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
2.95 in | 75 mm
Case Dimensions Width W
1.89 in | 48 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Plug
Hard Wired | North America
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
18.00 W
Specifications Output Current Dc
1.50 A
Specifications Output Type
DC
Specifications Output Voltage Dc
12.0 V
Specifications Type
Switchmode
