JTEC 489 Series 3 Pole + Neutral MCB
JTEC 489 Series 3 Pole + Neutral MCB
SKU:CIR-6be476
JTEC 489 Series Circuit Breaker - UL 489 Listed, 3 Pole + Neutral, 0.2-63A, 10kA Interrupt Rating, EN 60898, UL 489 Compliant
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
JTEC 489 Series 3 Pole + Neutral MCB
$34.99
Quantity: 1
Claim Your Seller Account
JTEC 489 Series 3 Pole + Neutral MCB
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JTEC 489 Series 3 Pole + Neutral Miniature Circuit Breaker by Shamrock Controls offers UL 489 listed branch circuit protection with trip curves B, C, K, and D. With current ratings from 0.2 to 63A, this MCB is versatile and reliable. Featuring an interrupt rating of 10kA, a wide operational temperature range, and compliance with standards such as EN 60898 and UL 489, this circuit breaker is a robust solution for both engineers and installers.
Product Specifications
Accessories Accessories

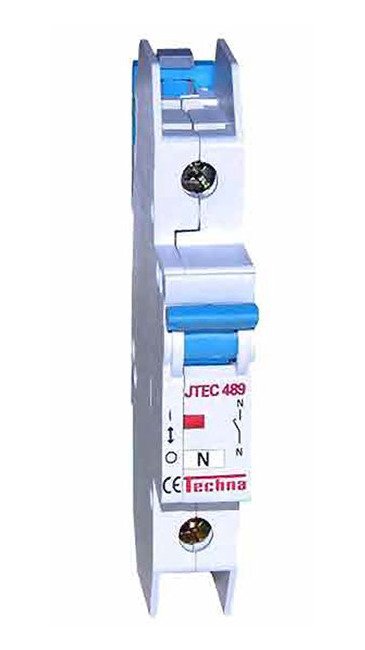

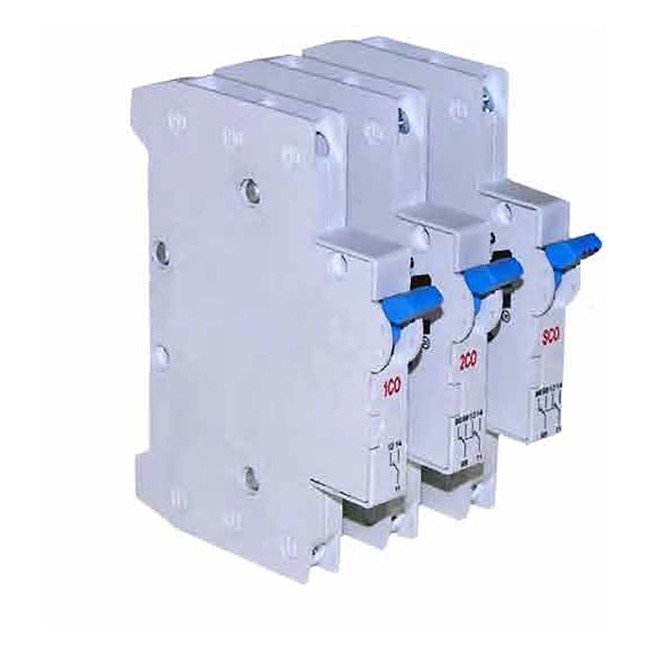

Item #: Jteo489 AUX1COItem Name: Auxiliary and Signal Contacts - 1 ChangeoverItem #: Jteo489 AUX2COItem Name: Auxiliary and Signal Contacts - 2 ChangeoverItem #: Jteo489 AUXSCOItem Name: Auxiliary and Signal Contacts - 1 Changeover + 1 Signal ChangeoverItem #: Jteo489 AUXSTCOItem Name: Auxiliary and Signal Contacts - 1 Changeover + 1 Signal + 1 Test ButtonItem #: Jteo489 N2Item Name: Neutral PoleItem #: Jteo489 LP1 BlackItem Name: Lockon/Lockoff Adapters - BlackItem #: Jteo489 LP1 YellowItem Name: Lockon/Lockoff Adapters - YellowItem #: Jteo489 ST12ACItem Name: 12 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST24ACItem Name: 24 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST48ACItem Name: 48 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST60ACItem Name: 60 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST110ACItem Name: 110 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST120ACItem Name: 120 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST230ACItem Name: 230 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST277ACItem Name: 277 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST400ACItem Name: 400 Alternating Current Voltage (VAC) Shunt TripItem #: Jteo489 ST12DCItem Name: 12 Direct Current Voltage (VDC) Shunt TripItem #: Jteo489 ST24DCItem Name: 24 Direct Current Voltage (VDC) Shunt TripItem #: Jteo489 ST48DCItem Name: 48 Direct Current Voltage (VDC) Shunt TripItem #: Jteo489 ST110DCItem Name: 110 Direct Current Voltage (VDC) Shunt TripItem #: Jteo489 UV12ACItem Name: 12 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV24ACItem Name: 24 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV48ACItem Name: 48 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV60ACItem Name: 60 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV110ACItem Name: 110 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV120ACItem Name: 120 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV230ACItem Name: 230 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV277ACItem Name: 277 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV400ACItem Name: 400 Alternating Current Voltage (VAC) Undervoltage ReleaseItem #: Jteo489 UV12DCItem Name: 12 Direct Current Voltage (VDC) Undervoltage ReleaseItem #: Jteo489 UV24DCItem Name: 24 Direct Current Voltage (VDC) Undervoltage ReleaseItem #: Jteo489 UV48DCItem Name: 48 Direct Current Voltage (VDC) Undervoltage ReleaseItem #: Jteo489 UV110DCItem Name: 110 Direct Current Voltage (VDC) Undervoltage Release
Additional Information Additional Information
Techna's JTEC 489 DC circuit breaker allows usage on DC circuits up to 125 VDC in a single pole and 250 VDC with two poles in series configuration.
Benefits For Engineers And Designers Benefits For Engineers And

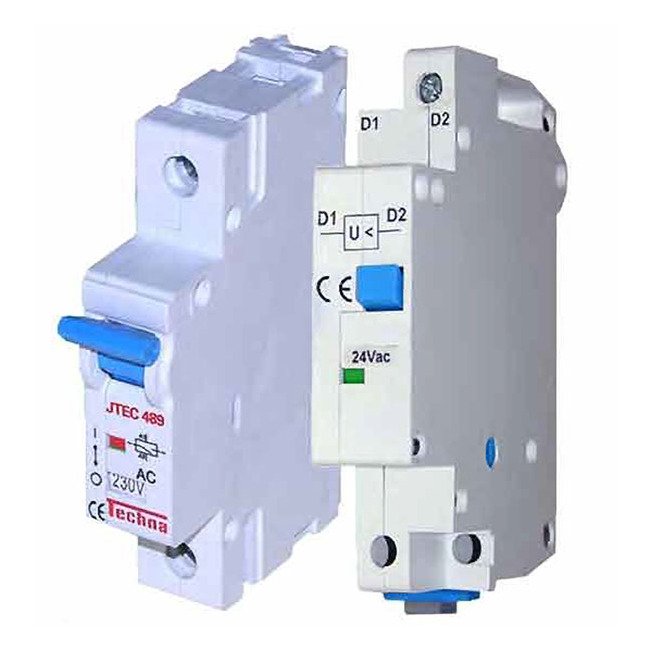

A. JTEC 489 is UL Listed as a branch circuit breaker and is therefore able to be used to protect a branch circuit without a backup device.Many applications and other UL standaros insist upon the use of a branch circuit breaker (as opposed to a supplementary protector). If you fit the JTEC 489 you're covered!B. JTEC 489 offers 10kA interrupt rating at 480Y/277VAC systems up to current ratings of 32A, higher than most suppliers.C. JTEC 489 maintains its 10kA interrupt rating right up to 63A when used on 240VAC and 240/120VAC systems.D. JTEC 489 is also available UL Listed up to 10kA in 250VDC ratings.E. JTEC 489 also meets European standard EN60898 and EN60947-2 for circuit breakers and is CE marked, ideal for manufacturers seeking to stock a single product to use for global production requirements.F. JTEC 489 has a full range of accessories. Auxiliary contacts with both changeover and signal circuits - meaning you can remotely monitor the state of the breaker (ON or OFF) and you can tell whether the breaker was manually switched off or has tripped due to a circuit fault.Shunt trip modules enable remote shutdown of the device.The undervoltage release modules automatically switch off the breaker in the event of a power failure, thereby protecting against an unexpected machine start-up when mains power is restored.Uniquely the N-pole (Neutral Pole) add on means you can convert a 3 pole breaker into a 3 pole + switched neutral device with one shared component, so you do not need to stock 4 pole devices, making inventory savings.
Benefits For Service Engineers And Installers Benefits For Servi

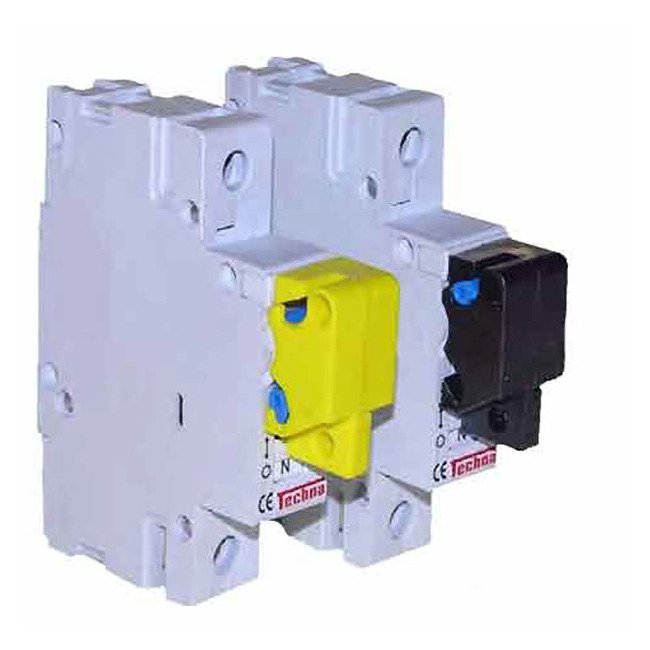

A. JTEC 489 is suitable for field wiring - this means the product has been evaluated by UL as being suitable for direct field installation by a field service engineer (as opposed to factory fitted only.)B. The breaker terminal screws are recessed to provide finger touch protection.C. Lockoff adaptors are available to enable breakers to be padlocked on (to prevent manual turn off), or locked off, for example by service engineers working on the system.D. The breaker features a trip indicator window to show if the breaker has tripped even if the handle has been inadvertently prevented from movement. This saves a lot of time by enabling quick identification of a tripped circuit when an engineer is on site.
Note Note
Use Copper wire only 60 ºC/70 ºCLine Load ReversibleHARC Type 40 ºC
Specifications Alternating Current Ac Rated Voltage European Sta
230 V | 400 V
Specifications Alternating Current Ac Rated Voltage Underwriters
240 V
Specifications Ambient Protection Range
-25 to 60 ºC
Specifications Compliance Standards
EN 60898 | EN 60947-2 | Underwriters Laboratories (UL) 489 | Underwriters Laboratories (UL) 489A
Specifications Connectable Cross Section
2.5 to 25 mm² | 12 - 3 AWG
Specifications Current Ratings
0.2 A | 0.5 A | 1 A | 1.6 A | 2 A | 3 A | 4 A | 5 A | 6 A | 7 A | 8 A | 9 A | 10 A | 13 A | 15 A | 16 A | 20 A | 25 A | 30 A | 32 A | 35 A | 40 A | 50 A | 60 A | 63 A
Specifications Electrical Life Onoff
6000 cycles
Specifications European Energy Limiting Class To En 60898 At 02
Class 2 | Class B | Class C
Specifications Industry Standards
Underwriters Laboratories (UL489)
Specifications Interrupt Capacities 02 To 32 Ampere A Alternatin
120 Alternating Current Voltage (VAC), 10 Fault Current (kA) | 240/120 Alternating Current Voltage (VAC), 10 Fault Current (kA) | 480Y/277 Alternating Current Voltage (VAC), 10 Fault Current (kA)
Specifications Interrupt Capacities 33 To 63 Ampere A Alternatin
120 Alternating Current Voltage (VAC), 10 Fault Current (kA) | 240 Alternating Current Voltage (VAC), 10 Fault Current (kA) | 240/120 Alternating Current Voltage (VAC), 10 Fault Current (kA)
Specifications Number Of Poles
3 + Neutral
Specifications Operational Position
In Any Plane
Specifications Protection Degree
Ingress Protection (IP20) at Front
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Resistance To Thermal Shocks
140 ºC
Specifications Short Circuit Capacity According En 6089860947 2
10 kA
Specifications Tightening Torque
1.5 to 2 N·m | 13 to 17.5 lb·in
Specifications Underwriters Laboratories Ul Interrupt Rating
10 kA
Specifications Vibration Resistance At 8 To 50 Hertz Hz Frequenc
3 gâ
Specifications Wye Line To Neutral Rated Voltage Underwriters La
480 V
Specifications Wye Or Delta Line To Line Rated Voltage Underwrit
277 V
