Juki DLN-9010-7S Direct Drive Needle Feed Only Industrial Lockstitch Sewing Machine
Juki DLN-9010-7S Direct Drive Needle Feed Only Industrial Lockstitch Sewing Machine
SKU:IND-49932d
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Juki DLN-9010-7S Direct Drive Needle Feed Only Industrial Lockstitch Sewing Machine
$49.99
Quantity: 1
Claim Your Seller Account
Juki DLN-9010-7S Direct Drive Needle Feed Only Industrial Lockstitch Sewing Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

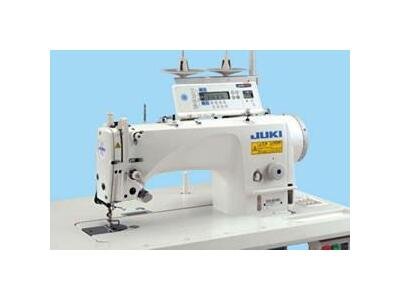

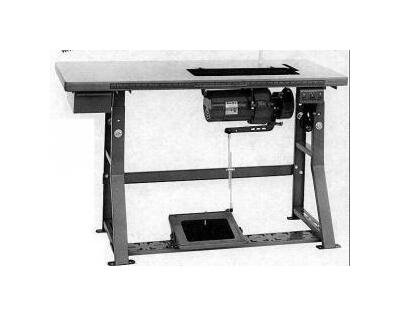

Assembled Power Stand, Program Panel on Top of Machine, Built In Direct Drive DC Servo Motor, Metal Stand, Adjustable Height , Wood Top 48" W x 20" D This is the Juki DLN-9010, a needle-feed type DDL-9000 Series sewing machine, that has been highly applauded as the top-of-the-line lockstitch machine with a thread trimmer. It has inherited the advanced features of the DDL-9000 Series, such as the direct-drive system, semi-long arm and elimination of the oil pan. In addition, it comes with a highly reliable needle feed mechanism. The needle feed mechanism responds to a wide range of applications such as the sewing of outerwear, runstitching of men’s shirts, etc. and the attaching of various parts to garment bodies.
Product Specifications
Specifications Applications
For Light- to Medium-weight Materials For Heavy Weight Materials
Specifications Automatic Reverse Feed Function
Provided as Standard (Built-in Solenoid Type)
Specifications Bed Size
178 mm | 517 mm
Specifications Bobbin Type
Thread Winder: Built-in the Machine Head
Specifications Brand
Juki
Specifications Distance From Needle To Machine Arm
300 mm
Specifications Features

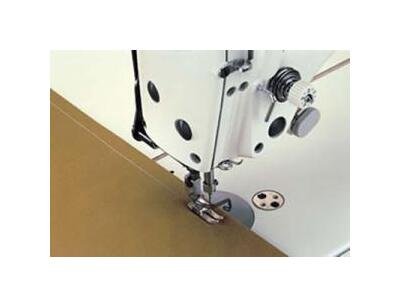

The machine ensures accurate stitch pitches (stitch length) as well as preventing slippage of the upper cloth thanks to the needle-feed mechanism which offers excellent efficiency of feed. The bottom feed's locus has been improved to match the needle feed motion, thus the machine produces beautiful seams without stitch gathering, even when it is used for sewing slippery and difficult-to-feed material or for handling a difficult process. The needle feed mechanism is a so-called "dry type", which does not require oiling. With this mechanism, a highly reliable machine structure, free from oil leakage troubles, has been achieved. The frame, which requires only a minute quantity of lubricating oil, is structured to eliminate oil leakage. The machine can be easily changed over from a needle feed machine to a bottom feed machine, through a simple adjustment and gauge replacement. It is a useful feature for those users who also want to use the machine simply as a regular bottom feed type machine in accordance with applications and processes. A horizontal-type automatic thread trimmer mechanism ensures speedy and reliable thread trimming. The hinge has been moved 10cm behind the needle entry point to ensure the material won't be caught, thus contributing to upgraded workability.
Specifications Hook
Automatic-lubricating Full-rotary Hook
Specifications Included Accessories
Bobbins | Instruction Manual | It comes complete with sewing machine table (size 48 Inch x 20 Inch) and motor ( servo motor has 1/2 horse power, phase I, 110 volt), everything (drawer, belt, tools and instruction manual), packed in factory sealed boxes and never been used before. | Needles
Specifications Lubricating Oil
JUKI New Defrix Oil No.1 (Equivalent to ISO VG7)
Specifications Lubrication
Minute-quantity Lubrication to Needle Bar and Hook
Specifications Machine Head Drive
Compact-sized AC Servomotor that is Directly Connected to the Main Shaft (Direct-drive System)
Specifications Maximum Sewing Speed
4,000 rpm | 5,000 rpm
Specifications Maximum Stitch Length
4.5 mm
Specifications Micro Lifter Screw
Provided as Standard
Specifications Model
DLN-9010SS DLN-9010SH
Specifications Needles
(At the Time of Delivery) DB1(#11;) #9; - #18; | For JE:134 (Nm130) Nm120 | For JE:134 (Nm90) Nm65 | Nm110 DB1(#21;) #20; - #23; | Nm160
Specifications Needle Bar Stroke
33 mm
Specifications Power Requirementpower Consumption
3-phase 200 V, 240 V 650VA | Single-phase 100 120 V, 200 V, 240 V
Specifications Presser Foot Lift

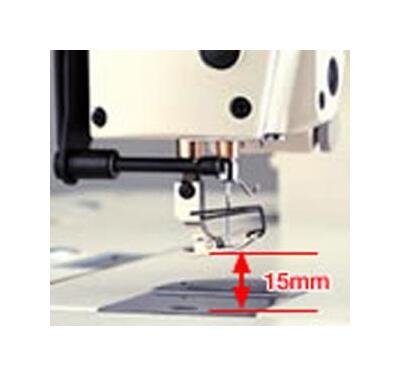

Auto: 10 mm | By Hand: 5.5 mm | By knee Maximum: 15 mm
Specifications Product Specifications
The maximum sewing speed is 4,000 rpm or less in cases where the maximum stitch length is 3.5 mm or more.
Specifications Warranty
Non-US Warranty: 30 days parts and labor | US Warranty 90 Days Labor on Defects in Materials and Workmanship
Specifications Weight
87 kg
